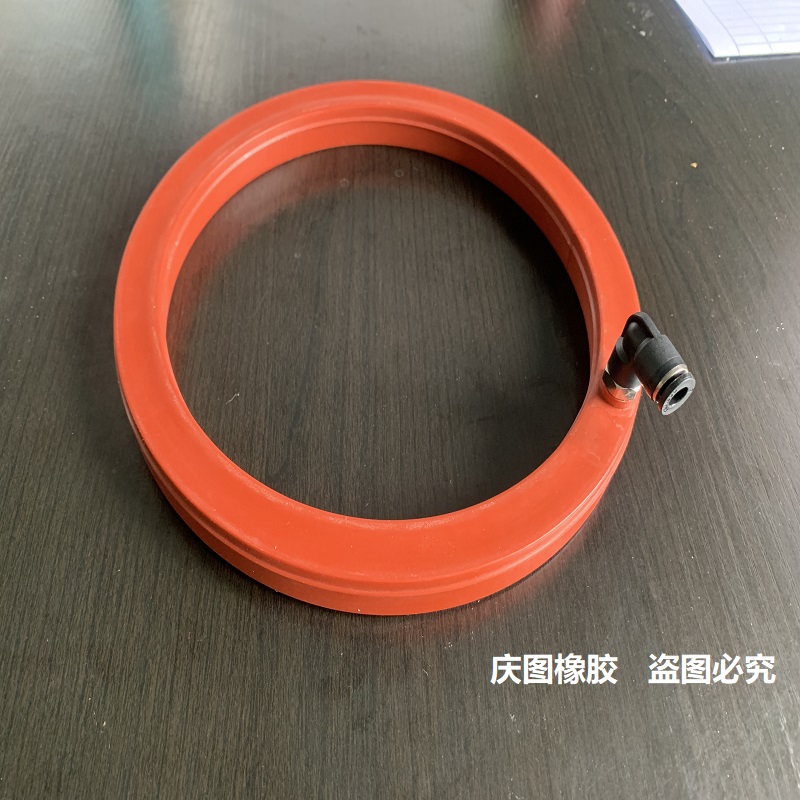

Lateral Turn Inflatable Sealing Ring - Need a factory for customization? Look no further than Qingtu Rubber. Specializing in the research and production of inflatable sealing rings.

Section 1: Features of Air-Inflated Sealing Rings

A. Product circumference dimensions can be customized according to customer requirements (we recommend prioritizing our standard parts)

B. Innovative, Simple, and Reliable Structure

C. Flexible opening and closing, capable of cutting off dynamic or static material columns

D. Complete specifications and dimensions

E. Forms a firm pressure seal upon closure

F. Withstand conveying pressure of 0.2 MPa

G. Operating Temperature Range: -40℃ to 220℃

Long service life, low maintenance requirements

Section 2: Inflatable sealing rings are suitable for sealing materials.

Grinding Material

B. Granular Material

Powdered material

D. Fly Ash

E. Chemical Powder Materials

A: Various gases and liquids with no severe corrosiveness

This inflatable sealing ring and its sealing structure feature simple design, easy installation, excellent sealing performance, and the capability of achieving self-tightening in both axial and radial directions. The outer edge of the inflatable sealing ring is equipped with a guide positioning ring, and when the upper and lower lips on the inner edge are closed, they form a complete hollow circular ring. After filling the hollow circular ring with high-pressure gas (or liquid) within the pressure vessel, it expands outward, generating self-tightening in both axial and radial directions. The greater the pressure, the stronger the self-tightening, and the better the sealing.

Jingtu Rubber specializes in the production of inflatable sealing rings for pressure vessels. Over the years of operation, we have accumulated extensive experience in the development and production of inflatable sealing rings, assisting numerous manufacturers in solving various complex sealing issues. When it comes to inflatable sealing, we are the experts. Please feel free to call for consultation and customization.
