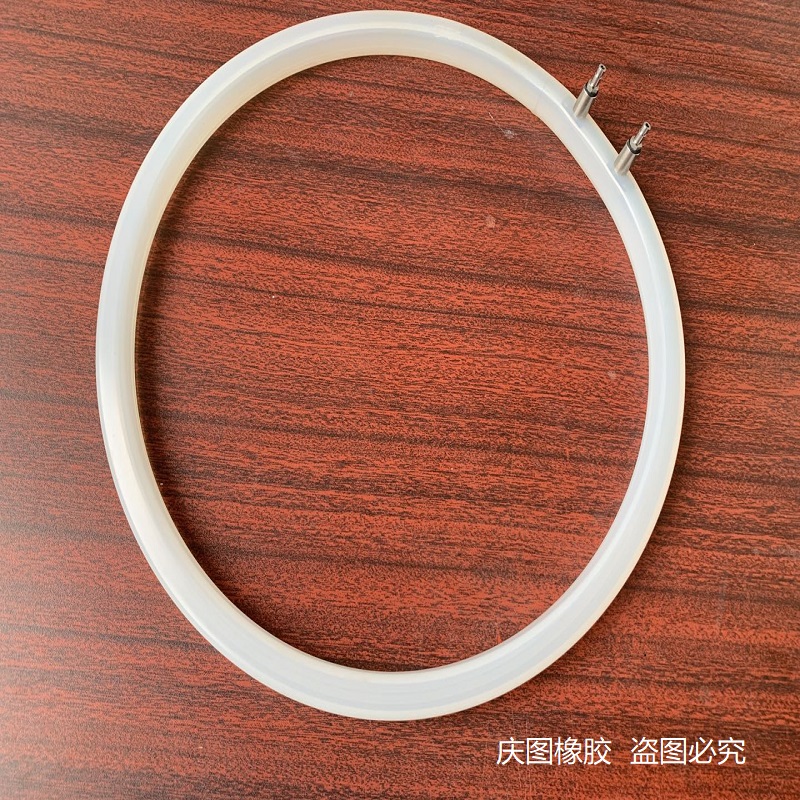

Customized Inflatable Sealing Ring for Slag Door - Choose Qingtu Rubber. Focused on Research & Production of Inflatable Sealing Rings.

The sealing performance and safety of the slag outlet door and the drum are crucial factors for the safe production of the extraction drum. According to investigations, approximately 80% of leakage failures are caused by issues with the sealing of the slag outlet door. Therefore, selecting the appropriate slag outlet door is vital for the use of multi-functional extraction drums.

Generally, in the production of traditional Chinese medicine, the following types of slag discharge doors are commonly seen domestically. The first type is the quick-opening safety-type, which uses three pneumatic cylinders for control, enabling the automatic opening and closing of the drum cover, and is equipped with a safety device to prevent accidental operation, ensuring a high safety factor. The second type is the rotating slag discharge door, where the locking ring of the extraction drum's slag discharge door is fitted with two opposing push-pull pneumatic cylinders that are linked with two stop blocks for coordination. The drum's slag discharge flange is of a wide-tooth design, and the cross-section of the locking ring is semi-herringbone, with the inner hook section being wide-toothed. The edges of the slag discharge flange and the slag discharge door flange are clamped between the upper and lower inner hooks of the locking ring to form the slag discharge door locking mechanism. The third type is the large-diameter slag discharge door, which can achieve high-temperature and high-pressure extraction.


Due toThe quality of the slag door seal directly determinesExtracted DrumThe overall product quality of the unit. Some manufacturers have abandoned the original standard sealed structure and adopted our independently developed inflatable sealed structure. It has been verified by end-users, achieving good economic and social benefits. For details on the product structural design, please contact our company for more information.
