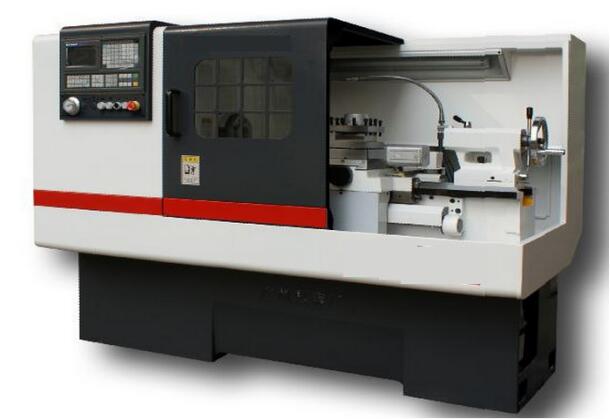

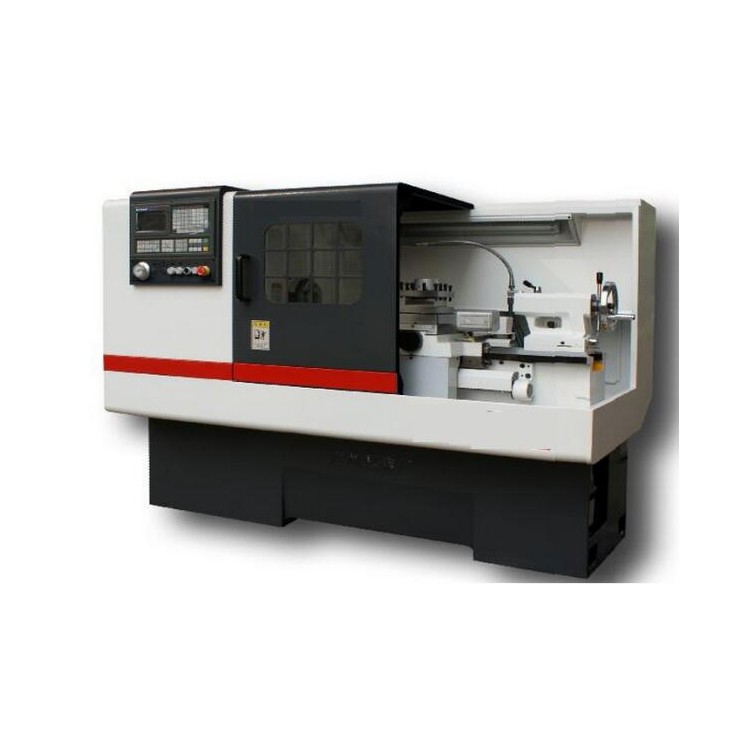

CNC Lathe Machine Performance:
Automatically turns various rotatable surfaces such as cylindrical, conical, and special-shaped surfaces, and can perform slotting, threading, boring, reaming, and drilling operations with high efficiency and strong applicability.
2 High precision machine tools, system has a minimum setting unit of 0.001mm, X-axis repeat positioning accuracy of 0.010mm, Z-axis repeat positioning accuracy of 0.012mm. The spindle bearings use Harbin BEARING high precision double ball bearings. All gears in the spindle box are super-audio quenched and precision ground, ensuring high precision and low noise.
3. The bed guide rails are precision ground after ultra-high-frequency quenching, offering high hardness, excellent rigidity, and increased precision.
4. Ball screw features an integral internal recirculating thread design, paired with angular contact ball bearings for support and pre-tensioning. Guideways and screws are equipped with centralized automatic lubrication, offering flexible movement, reduced thermal deformation, and stable precision.
5. The electric knife holder comes in a four-position vertical and a six-position horizontal design, utilizing precise toothed disk positioning for high repeat positioning accuracy.
6. The tailstock features an eccentric wheel self-locking mechanism with threaded locking for faster and more secure setup. The tailstock sleeve is equipped with a device to prevent drill rotation, effectively protecting the tailstock components.
7. Programming is done using ISO international standard codes, with manual keyboard input or import via USB interface. It features power failure protection and diagnostic functions. The CNC system uses domestic products such as Beijing Kaindi KND1OOTi and Guangshu GSK980, and other systems can be selected according to customer requirements.
8. Users can select appropriate machine tools of various types based on the characteristics of their products.
Type A: Full Stepless Speed Change (100-2000 RPM). This machine tool is suitable for high-speed precision turning and frequent speed changes.
B Type: Multi-pole mechanical speed regulation (52-1210 RPM). This machine tool is suitable for low-speed, heavy cutting with a single speed change.
Type C: High and low-grade variable speed (L: 75-750 RPM, H: 150-1800 RPM). Broader applicability.
Optional accessories include hydraulic collets, hydraulic tailstock, pneumatic collets, pneumatic tailstock, handheld electronic pulse handwheels, etc.
9. This series of CNC lathe is user-friendly with an excellent cost-performance ratio, and has been highly favored by customers for a decade since its launch into the market.
