I. Product Overview

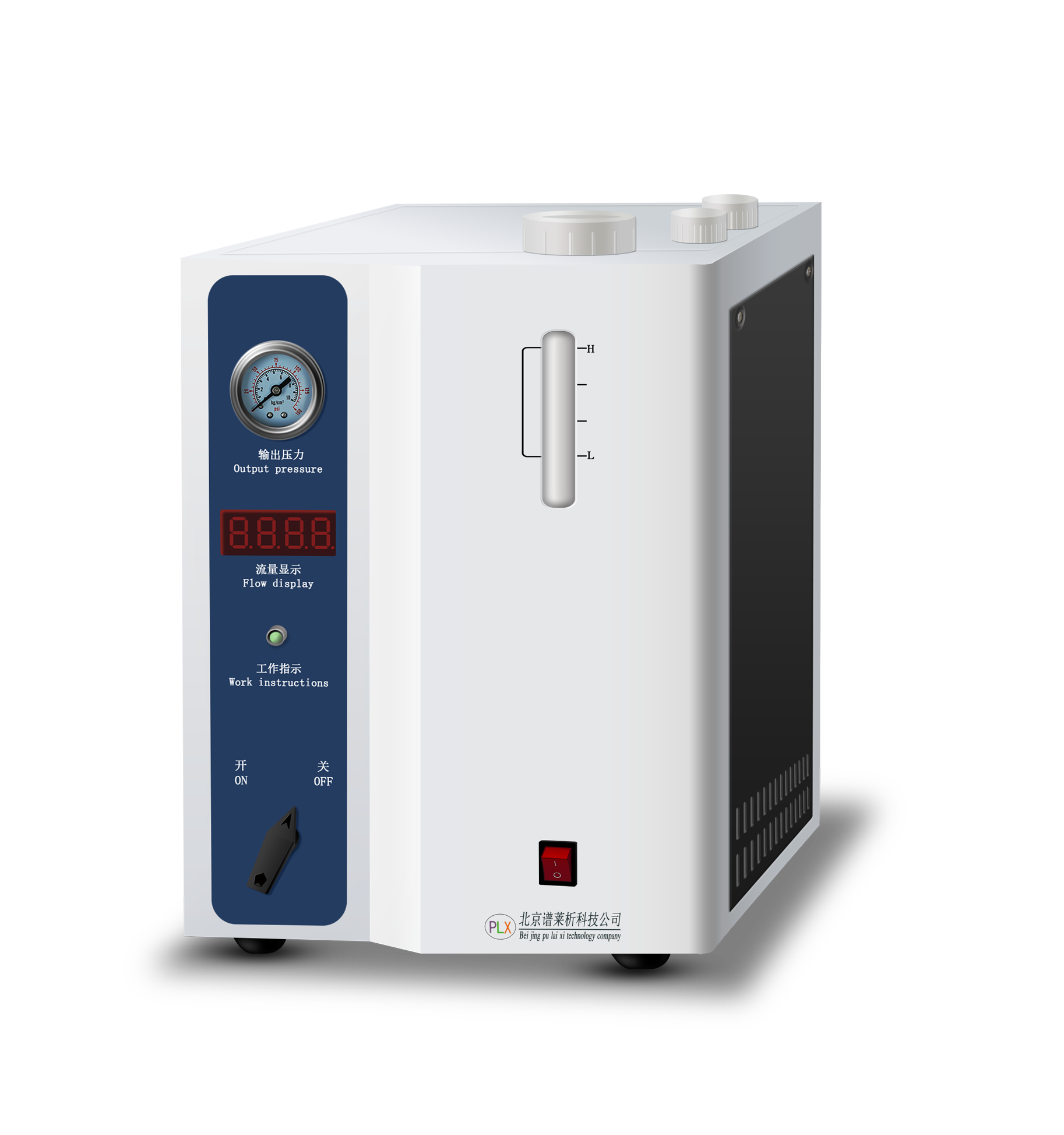

Pure Water Series QingGasGenerator employs Solid Polymer Electrolyte (SPE) technology, using pure water as the electrolyte, and produces high-purity Qing through electrolysis using titanium metal electrodes.AirOxygen content < 0.1 ppm.GasAfter gas-liquid separation, drying, and purification, it outputs with stable pressure (fluctuation < 0.001 MPa), ready-to-use production, and zero alkaline solution addition, featuring core advantages suitable for laboratory, medical, and industrial applications.

II. Technical Specifications

Product Model

PGH-1000B

Gas purity

99.999% relative oxygen content

Outbound traffic

0-1000ml/min

Output Pressure

0-0.7 MPa (Factory default: 0.4 MPa)

Maximum Power

360W

Power Voltage

220V 50Hz

Dimensions

550mm*320mm*450mm（L*W*H）

Weight

Approx. 22 kg

Water Quality Requirements

Greater than 2MΩ deionized water or double distilled water



Section 3: Instrument Features

1. Smart Control System

One-touch operation: Simply press the power switch to start gas production, supporting continuous or intermittent operation.

Accurate Monitoring: Highlighted LED digital screens display flow rate (±1ml accuracy) and pressure values in real time, with data being clear and easy to read.

Pressure-adaptive: The system automatically adjusts the gas output when the pressure reaches the preset value (e.g., 0.4MPa), ensuring the output pressure fluctuation ≤ 0.001MPa.

2. Low-maintenance design

Simplified Maintenance: Simply replenish with pure water or distilled water periodically.

3. Safety Protection

Anti-backflow Technology: Equipped with an internal anti-backflow device, eliminating the risk of liquid backflow.

Multiple Protection: Over-voltage and low-liquid automatic shutdown to ensure equipment and operation safety.

4 High-Efficiency Compact Structure

High conversion efficiency: Electrolytic cell efficiency ≥95%, maximum gas production up to 1000ml/min, meets high load requirements.
