I. Product Overview

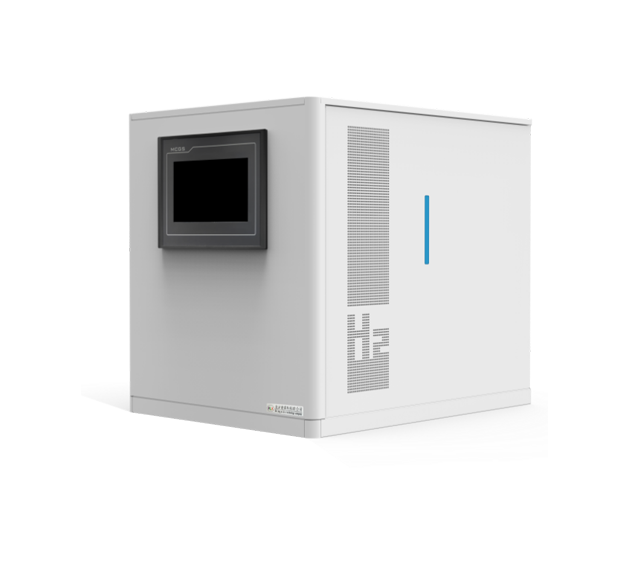

This equipment utilizes advanced PEM electrolytic water purification technology:The system includes, but is not limited to, electrolytic cells, power supply facilities, and gas-liquid separation equipment.qingGasPurification facilities, PLC control systems, etc. Specific equipment includes: circulating pumps, water-gas separators, gas dryers, valve and pipeline components, constant current power supplies, control panels and control systems, safety systems, and more.Through the above equipment, adjustable flow support (0~1000ml/min) and high-pressure output (0~7MPa) are achieved. It is equipped with an internal three-stage purification system to ensure qing.GasPurity > 99.999%, dew point < -45°C, suitable for precision instruments (such as GC-MS, fuel cell testing) and industrial applications.

I. Core Technology and Advantages

PEM electrolytic water purification technology

· Utilizing Proton Exchange Membrane (PEM) electrolysis technology, directly generates hydrogen gas through electrolysis of deionized water, without the need for alkali solutions or other chemicals, ensuring safety and environmental protection.

·Highly energy-efficient, with electrolysis efficiency improved and energy consumption lower than traditional alkaline electrolysis technology.

·Supports quick start/stop and power adjustment, reducing energy waste under no-load or low-load conditions compared to the slow response of traditional alkaline electrolysis.

2. High-pressure air output

·Customizable pressure: Supports 0~7MPa pressure adjustment for various applications such as fuel cell, refueling station storage, industrial reactors, etc.

·Drying and Purification System: Equipped with a three-stage filtration system including molecular sieve, silica gel, and trace oxygen removal agent, ensuring the air is dry and pure, meeting the requirements of precision instruments such as CVD, GC-MS, etc.

3. Smart Control System

One-touch operation: Simply press the power switch to start gas production; supports continuous or intermittent operation.

Accurate Monitoring: Large touch screen displays flow (±1ml accuracy) and pressure values in real-time, data is clear and prominent.

Pressure Adaptive: When the pressure reaches the preset value (e.g., 0.4MPa), the system automatically adjusts the gas production volume to ensure output pressure fluctuations ≤0.001MPa.

4. Low-maintenance design

Simplified Maintenance: Simply replenish Yibao water or distilled water (18.25M) periodically.

5. Safety Protection

Multiple Protection: Overvoltage protection, ensuring equipment and operation safety.

6. Efficient and compact structure

High conversion efficiency: Electrolytic cell efficiency ≥ 85%, maximum gas production up to 300ml/min, meeting high load requirements.

Section 2: Intelligent Control System

Siemens SMART 200 ST40 PLC

· Core control utilizes Siemens industrial-grade PLC, featuring high stability and anti-interference capability, supporting real-time monitoring and closed-loop regulation of pressure, flow, and temperature.

·TCP/IP Communication Protocol: Supports remote monitoring and data exchange, seamlessly integrates with factory DCS or IoT platforms for unattended operation and intelligent maintenance.

·Human-Machine Interface: Equipped with a touchscreen, it displays operating parameters (pressure, flow, temperature) in real-time, supports fault alarms, and allows for the traceability and export of historical data.

2. Safety Protection Mechanism

· Multi-level safety protection: Automatic leak alarm, overpressure automatic release, electrolytic cell overheat protection, ensuring equipment and operation safety. Fault self-diagnosis: The system can identify issues such as abnormal water quality, automatically shut down, and send maintenance reminders.

Section II: Application Scenarios

Qing in the field of transportation and travel

·Supports home users to produce their own qing gas, refuel qing-powered two-wheelers, and address the pain points of charging.

2. Industrial Manufacturing and Precision Production

· Provides a stable gas source for semiconductor and electronic industries, petrochemical and chemical synthesis, and metal heat treatment and powder metallurgy.

3. Research and Laboratory Settings

·Supply high-purity carrier or reaction gases for equipment such as GC, GC-MS, and ICP-MS, as alternatives to hazardous steel cylinders.

· Supports fuel cell stack performance testing, single cell efficiency verification, etc.

4. Emerging and Cross-industry Applications

· Food Packaging Nitrogen Filling (Extend Shelf Life)

·Pharmaceutical Qing reaction (such as antibiotic synthesis)
