I. Product Overview

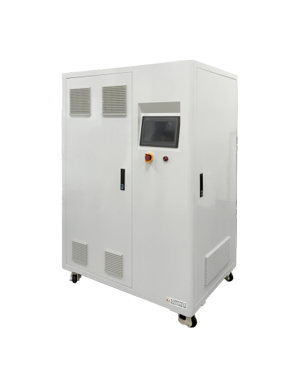

0.6 cubic feet QingGasGenerator, integrated with Proton Exchange Membrane (PEM) and electrolytic pure water production for high-purityqingAirThe system utilizes a water circulation system to deliver qualified deionized water into the electrolytic cell for electrolysis, forming negative oxygen ions and positive ions. The negative oxygen ions release electrons at the anode to form oxygen, carrying some water vapor into the reservoir, which is then exhausted by the oxygen exhaust pump. The positive ions, on the other hand, gain electrons at the cathode to form...GasAfter gas-liquid separation, the maximum pressure obtained is 3.0 Mpa.Gas。

The system encompasses the development and implementation of a production system including, but not limited to, electrolytic cells, power supply facilities, pure water preparation facilities, gas-liquid separation facilities, and production equipment.GasPureification facilities, PLC control systems, etc.

Complete technical utility auxiliary system design, including but not limited to energy management systems, recirculating cooling water systems, chilled water systems, instrument air systems, and auxiliary power supply. Specific equipment includes: circulating pumps, water-gas separators, gas dryers, valves and piping components, constant current power supplies, control panels and control systems, and safety systems.

Section 3: Instrument Features

1. The Qing System is equipped with QingGasLeak detection and comprehensive safety protection features.

2. The Qing system should be arranged in a rational and aesthetically pleasing manner.

3.qingAirAutomatic Back Pressure Control

4. Equipped with qingGasGas-liquid separation treatment function, with liquid level monitoring and automatic external drainage at proximity to the threshold.

5. Recirculating water tank with automatic deionized water replenishment;

6. Preheating and temperature rise rate of electrolytic cell: 4°C/min

7.Large touch screen displays real-time flow (±1ml accuracy) and pressure values, with data being clear and prominent.Equipped with remote monitoring capabilities, the system operates automatically with 24/7 unattended secure dynamic operation.

8. Operating conditions can be freely edited or a pre-set condition can be selected.

9. Power output voltage, power monitoring, and protection

10. Full flow path multi-point temperature, pressure monitoring, and protection.

11. Equipped with abnormal water conductivity alarm and processing function for recycling water;

12. Features testing for Qing leak concentration monitoring and protection.

13. Equipped with multi-method automatic safety protection operations, capable of executing load reduction, unloading, circuit break, temperature reduction, pressure reduction, and reaction interruption.

14. Water supply and safety protection measures

15. QingGasSide and oxygen side safety high altitude direct exhaust function, with fire arrester installed.

16.qingGasSeparator tanks and recirculating water tanks are equipped with liquid level detection.

17. Equipped with oxygen, qingGasAtmospheric pressure, room temperature, safe sampling and testing capabilities.

18. Equipped with emergency stop and interlock protection in the emergency stop state.

Section 4: Product Advantages

1 Ultra-Pure QingGasThe producedqingGasPurity over 99.999%, dew point below -70°C.

High adaptability, strong load adaptation; gas production can be continuously adjusted from 20% to 120%, with quick response.

3 High-pressure production can reach a pressure of 3.0 Mpa.

4 Capable of cold/hot start, features hot standby, reduces energy consumption, and increases production efficiency.

5 Safe and reliable with qingAirLeak detection and comprehensive safety protection features, such as emergency stop and interlocked protection in the emergency stop state.

6 Stable performance with long lifespan, low temperature, stable performance during long working hours, low failure rate, and smooth operation.GasThe pressure difference fluctuation range is less than 0.05 Mpa.

Easy to install, highly integrated, safe and reliable, user-friendly, compact, and easy to set up.
