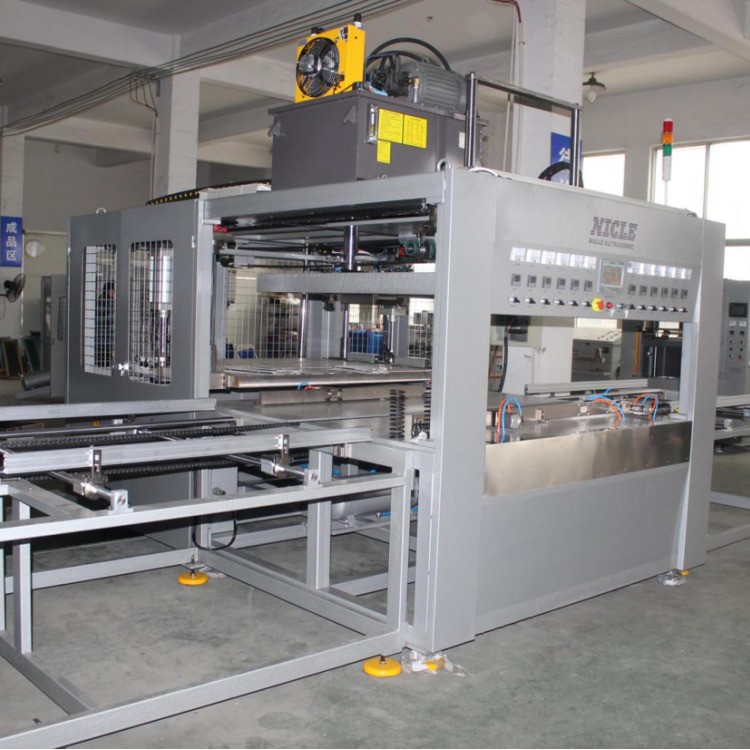

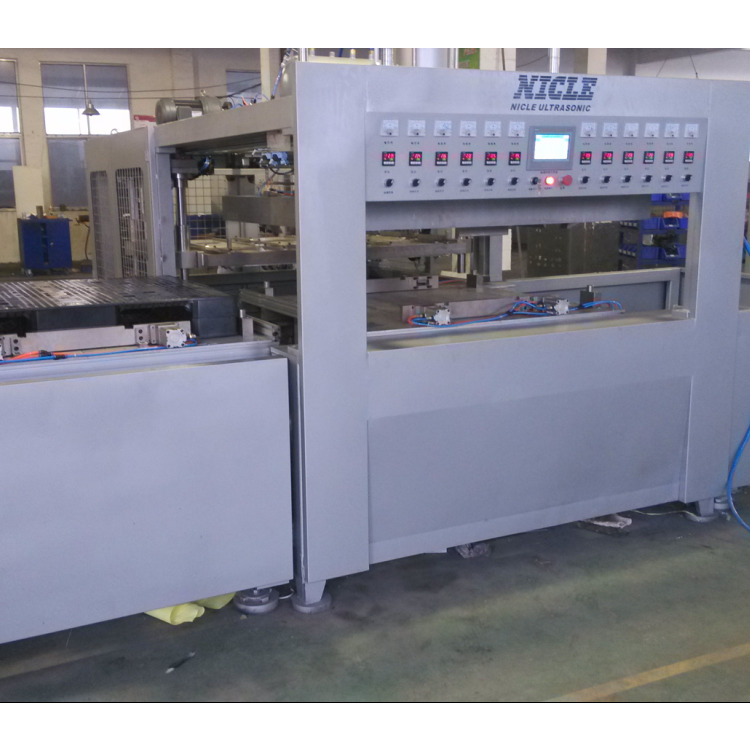

Plastic Pallet Hot Plate Welding Machine, also known as Plastic Pallet Welder or Hot Melt Welding Equipment for Plastic Pallets, is driven by a hydraulic system. The welding of plastic pallets is typically done using PP or PE plastics, which have good welding properties. Welding Requirements: Ensure the焊接 surface of the PE sheet is smooth and free of welding marks after welding.
Introduction to Plastic Pallet Heat Welding Machine
The plastic pallet welding machine primarily welds plastic parts through temperature-controlled heating plates. During welding, the heating plate is placed between two plastic components. As the workpiece approaches the heating plate, the plastic begins to melt. After a predetermined heating time, the plastic on the workpiece surface reaches a certain degree of melting. At this point, the workpiece is separated from both sides, the heating plate is removed, and then the two workpieces are joined together. The welding process is complete when a certain welding time and depth are achieved.

Plastic Pallet Hot Plate Welding Machine Application Range
Suitable for tray welding in this specification, size up to 1200mm*1200mm, maximum 1800mm*1500mm
The main features of the plastic pallet hot plate welding machine are its simple structure, easy operation, and high production efficiency. After welding, it meets the requirements for water tightness, air tightness, and durability. It is suitable for welding various sizes of plastic components for pallets and thermoplastic materials. It is a widely applied, cost-effective, and highly efficient welding process.

Key Technical Parameters of Plastic Pallet Heat Welding Machines
Power: 380VAC
Power: 75 kW
Air Source: 0.8MPa, 1m³ Air Compressor
Control System: PLC (Programmable Logic Controller) and Human-Machine Interface Operation Screen
Plastic Pallet Welding Machine Work Surface Travel Space:
Dimensions: 1800mm x 1500mm x 200mm
1800mm x 1500mm x 200mm
Machine Dimensions: 2500*3500*2120mm
Weight: 4,500 kg
Plastic Pallet Hot Plate Welding Machine Design Concept
1. Designed according to customer specifications, this equipment features a maximum welding area of 1.8m x 1.5m. The upper cold mold and hot mold are bolted to the equipment's movable panel, while the lower cold mold utilizes a roller structure. The side employs an pneumatic positioning mechanism, allowing for automatic positioning and removal of workpieces. Electrical and pneumatic connections both utilize quick connectors for ease, speed, and time savings. Mold change mode: manual mold change. The upper cold and hot molds use an integrated modular structure for easy assembly and disassembly; the lower cold mold's fixed fixture is adjustable.

3. Equipment Structure: The entire unit features a frame structure, with an outer cover equipped with a hinged door frame for easy mold replacement and equipment maintenance.

4. Transmission: The transmission section utilizes linear guides (Taiwan ABBA) to ensure stable operation and high precision of the equipment. Cylinders are used as power sources.

5. Electrical Control Section: The electrical control system of the equipment uses a PLC control method (Delta) and a Chinese display touch screen (Delta).
Plastic pallet welder, standard hot plate welder with non-standard design.
