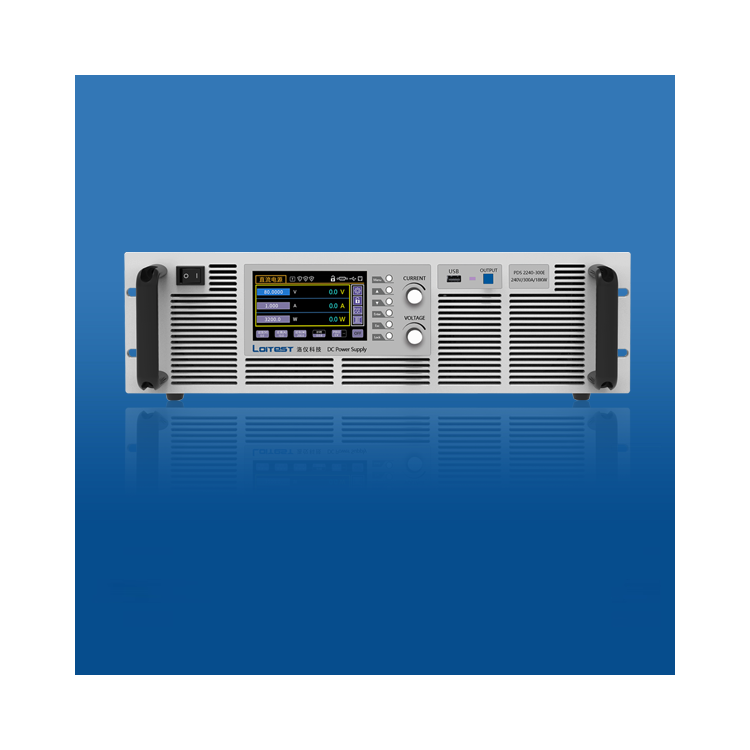

PDS 2000ED Series wide-range DC power supplies offer power output from 7kW to 20kW, with voltage ranging from 80V to 2400V and a single-unit current up to 1000A. Features include high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation. Key Features:
Input Voltage: 320V~480VAC
■ Voltage Range: Selectable from 0~2400V
■ Current Range: Selectable from 0~1000A
Voltage Accuracy ≤ 0.1% F.S
Current Accuracy ≤ 0.2% F.S
Power Range: 0~20KW available, supports parallel expansion to higher power
■ Efficiency up to 93%
■ Automatic range output, flexible power adjustment output stage
High precision/high stability
Panel Programming Function
Master-slave control function
Multiple Protection Functions (OVP, OCP, OPP, OTP)
Built-in control interface, supports SCPI command language
Communication Interface: RS-232/USB/LAN
Smart temperature control fan for cooling, reduced noise
Color screen control panel, displaying actual values, set values, status, and alarm information
