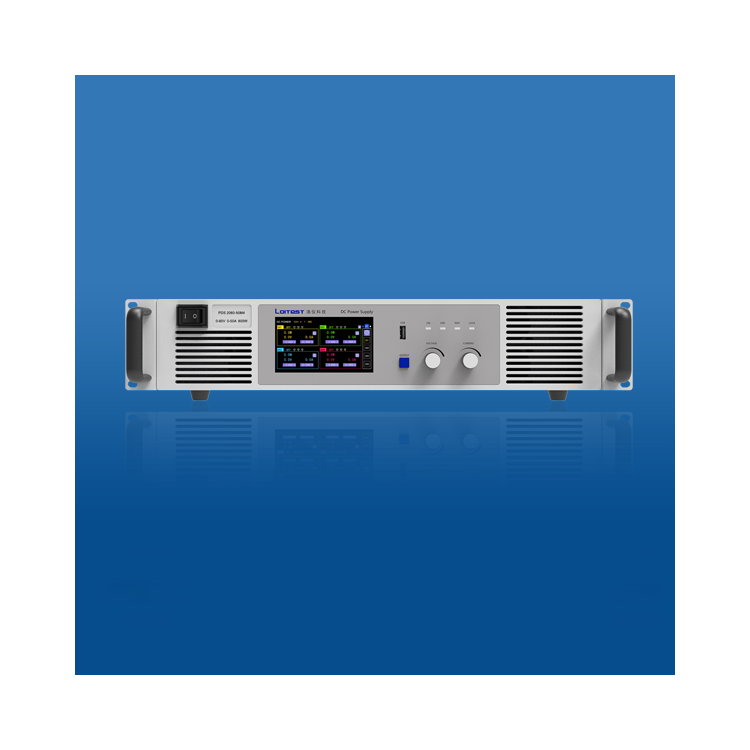

Multichannel DC Power Supply PDS 2000M Series

The PDS 2000M series multi-channel DC power supply offers power output ranging from 800W to 1500W, with a voltage range of 60V to 800V and a single machine current up to 50A. It boasts high power density, low ripple noise, fast dynamic response, and high reliability during long-term operation. The power supply can output through multiple channels simultaneously, and its output power per channel can be controlled differently via programming software, simplifying the operation process. It is suitable for the requirements of DC sources in batch complex testing environments.

Key Features:
Input Voltage: 180V~270VAC
Voltage Range: 0~800V available
■ Current Range: 0~50A Available
Voltage Accuracy ≤ 0.1% F.S
Current Accuracy ≤ 0.1% + 0.1% F.S
■ Power Range: Single Channel 0~1500W Available
Efficiency up to 93%
Automatic range output, flexible power adjustment output stage
High Precision/High Stability
Panel Programming Function
Channel Count: 2~4 Channels Output
Multiple Protection Functions (OVP, OCP, OPP, OTP)
■ Built-in control interface, supporting SCPI command language
Communication Interface: RS-232/USB/LAN
Smart temperature-controlled fan for cooling, noise reduction
Color Display Control Panel, capable of showing actual values, set values, status, and alarm information
