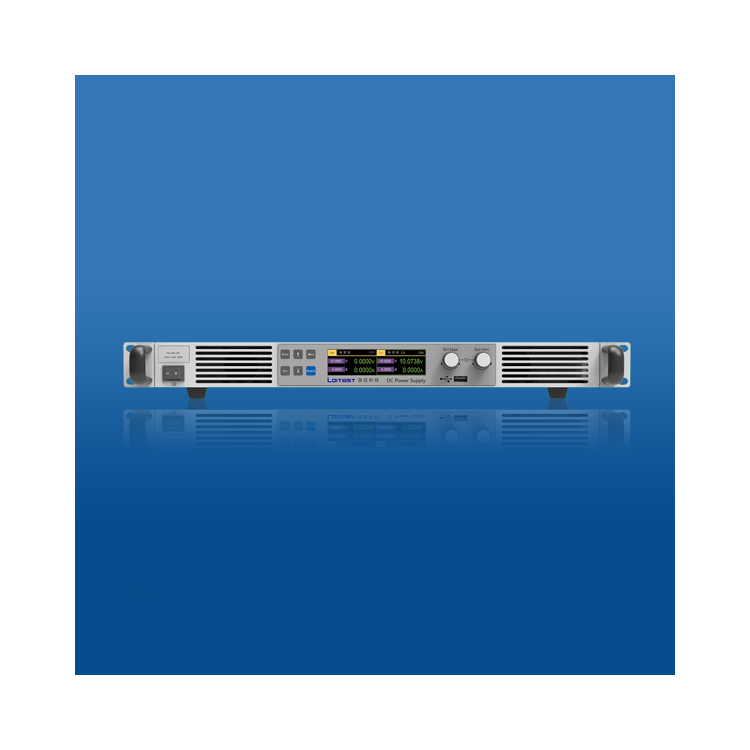

Dual-Channel DC Power Supply PDS 2000CM Series

PDS 2000CM Series dual-channel DC power supply, offering power output from 800W to 1500W, voltage range of 40V to 1000V, and a single machine current up to 60A. It features high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation. The power supply can output from both channels simultaneously, controlled by programming software to set different power outputs for each channel, simplifying the operational process. It is suitable for the requirements of DC power sources in batch complex testing environments.

Key Features:
Input Voltage: 180V~270VAC
Voltage Range: Selectable from 0 to 1000V
■ Current Range: Selectable 0~60A
Voltage Accuracy ≤ 0.1% F.S
Current accuracy ≤ 0.1% + 0.1% F.S
■ Power Range: Single Channel 0~1500W Available
Efficiency up to 93%
Automatic range output, flexible power adjustment of output stage
High precision/high stability
Panel Programming Function
Channel Count: 2 Channel Output
Multiple protection functions (OVP, OCP, OPP, OTP)
Built-in control interface, supporting SCPI command language
Communication Interface: RS-232/USB/LAN
Smart temperature-controlled fan cooling, noise reduction
Color screen control panel, displaying actual values, set values, status, and alarm information

Product Dimensions
