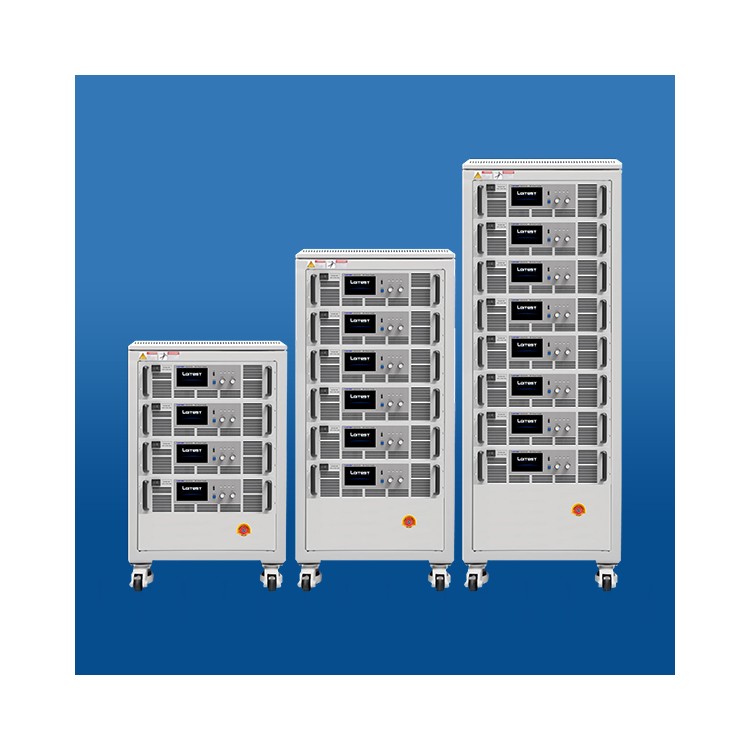

Direct Current Power Supply Cabinet System PDS 2000L/XU Series

The PDS 2000L/XU series DC power supplies are high-power DC power systems integrated into 19" rackmount or enclosed cabinets. This DC power supply cabinet system is composed of pure DC sources and its high power density products can be easily paralleled to achieve an output power of up to 180KW, with voltages as high as 2250VDC and currents as high as 6120ADC. Its modular design and standardized power and protection modules allow for an economical and flexible adaptation to various user requirements.

Key Features:
Input Voltage: AC 380V ± 10%
Voltage Range: 0~2250V available
Maximum current up to 6120A
■ Voltage Accuracy: 0.02% + 0.02% F.S.
Current Accuracy: 0.1% + 0.1% F.S.
■ Power Range: Available from 30KW to 180KW
■ Auto-range output, flexible power adjustment output stage
All products pre-set, wiring installed, easy to use
High precision/high stability
Master-slave control function
Support CV, CC priority mode
■ Communication Interface: LAN/
Smart temperature-controlled fan cooling, noise reduction
Automatic Line Loss Compensation Feature
Integrated control interface, supporting SCPI command language
Multiple protection functions (OVP, OCP, OPP, OTP, under-voltage, reverse polarity, etc.)
