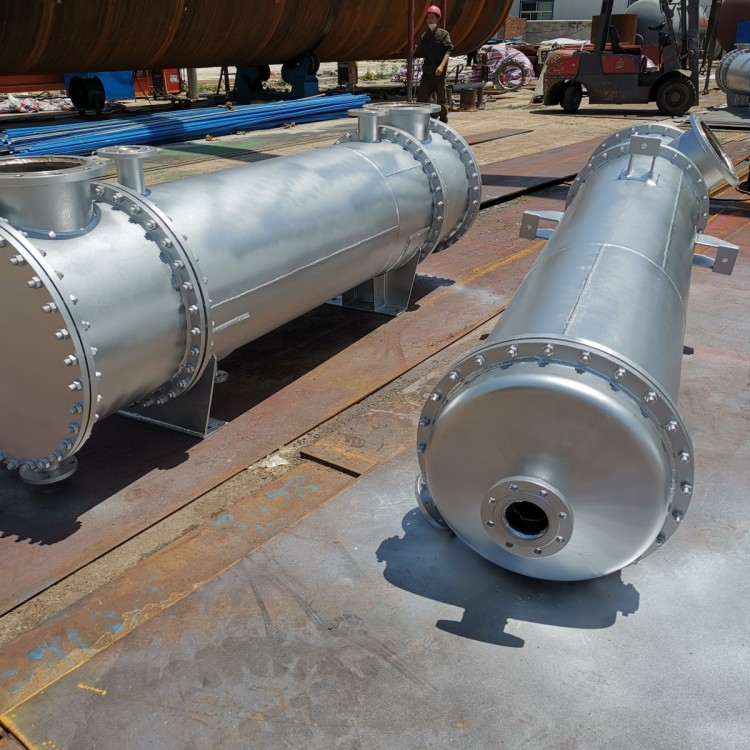

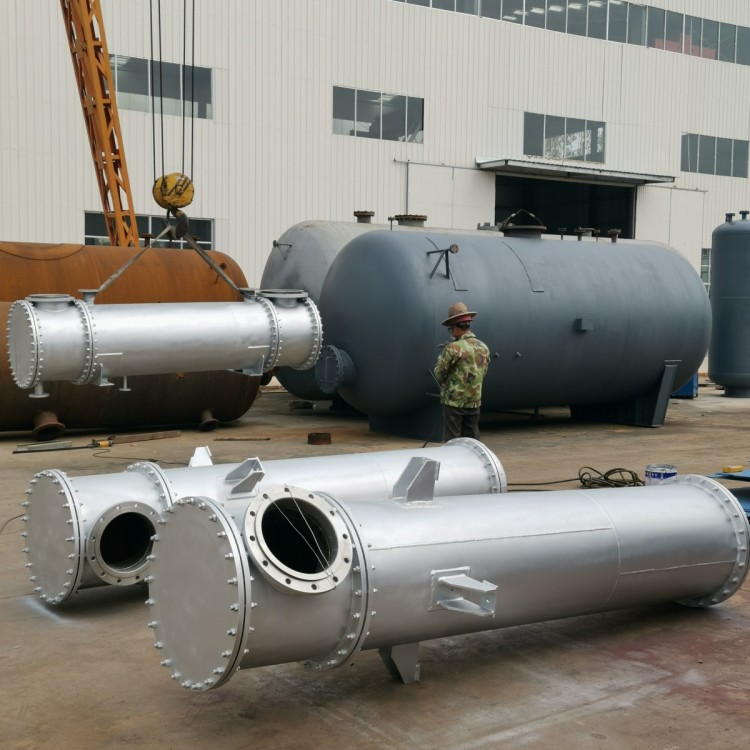

Tubular Cool Oil Heater Utility Model Patent∶ZL 2014 2 0456485.0
One. Usage and Features∶
（1Usage
Turbines, fans, coal mills, pumps, and marine propulsion systems in industrial and mining enterprises all require oil coolers for the lubrication of large and medium-sized machinery. Based on the advantages of similar products, our company has conducted extensive experiments on the vibration of the oil-side laminar flow in the heat exchange tubes, successfully developing a new type of tubular oil cooler.
（2Product Structure and Working Principle
The tubular cooler features a flow operation where oil flows through the shell side and water flows through the tube side. The heat transfer coefficient on the oil side outside the tube is [insert coefficient value] times that of the inside tube.120-10The thermal resistance is primarily on the oil side. This equipment replaces traditional arch baffles with swirling guide vanes, with the main principle being that the cooled oil, after entering the cold oil cooler shell through the oil pump, is directed to rotate forward by the swirling guide vanes. The oil, while rotating, also washes along the circumferential direction of the pipes. The structural parameters of the pipes are the result of optimal selection through multiple comparative tests, offering excellent performance, safety, and reliability. It is an ideal auxiliary equipment for steam turbine units.
（3Product Features
Tubular cool oilers have the following advantages compared to other types of cool oilers:∶
1. High thermal efficiency is a feature of the plate-type cool oiler.2-3X2
2.Tightly structured∶Its compactness is superior to plate-type heat exchangers.1-2Multiple;
3.Low oil resistance due to the use of swirl guide plates, with the oil entering in a tangential flow, which is favorable for fluid operation.
4.Long lifespan, easy installation and maintenance∶The heat exchange tubes have minimal thermal expansion stress, thus eliminating common issues like cracking and leakage. Additionally, their tube-shell structure allows for easy installation and maintenance.
II. Product Series Performance and Technical Specifications
Condensing Turbine Cold Oil Cooler Performance and Specifications
Section 3: Product Dimensions∶
Section 4: Product Selection∶
1Target Users of the Product
This product series is specifically designed for condensing steam turbines in power plants and various heating steam turbines, and can also be used for lubrication and cooling of power oils in industrial and mining enterprises, such as boiler feed pumps, coal mills, and forced-air blowers.
2Product Model Patterns....
3Selection Guidelines
A wide variety of turbine types are designed by domestic and international turbine manufacturers. Based on extensive information collection, our company has compiled various ordering and selection schemes for turbine oil coolers, as shown in the table. If users have special usage requirements, please contact our company. V. Installation of the oil cooler∶
1Preparation before installation
Coolant exchanger is pre-assembled before shipment.0.6mpaHydrostatic testing is required. However, prior to installation, the provisions of the "Technical Code for Construction and Acceptance of Electric Power Projects" (Turbine Chapter) should be followed.∶“Cool oil side should be at working pressure1.5Multiple water pressure tests, maintain5Minute leak-proof.
2Coolant Separator Installation∶
（1The cooler is supported on pre-prepared brackets and can reliably meet its dynamic and static load requirements.
（2Due to the change from an arch-shaped baffle to a swirl guide plate for the support, the cold oil cooler's oil inlet direction is clockwise. Do not install it in reverse.
