Xi'an Pure Curtain Wall Aluminum Panel System Creates Indoor Spaces
Publish Time:2025-02-17        View Count:69        Return to List

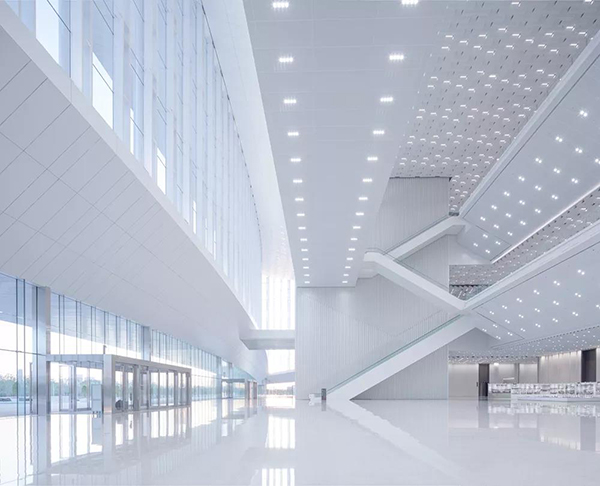

The conference center's facade consists of an upper main curtain wall system and a ground-level floor-to-ceiling curtain wall. Both are symmetrically designed on all four sides, fully encircling the building to create a pristine, fully transparent facade.

The upper main facade features an inward concave single-skin facade, with each panel measuring 198.6 meters in length, 43.5 meters high at the corners, and 24.8 meters high in the center, harmonizing with the crescent-shaped design. It employs a suspended structure, with cantilevered suspension columns spanning approximately 3 meters. The vertical columns are a combination of two columns to reduce the cross-sectional size, ensuring the facade's transparency, with horizontal tension cables on the suspension columns. At the building corners, the two-column combination transitions to a single column to maintain the purity of the corner facade.

The first floor facade features a ground-level glass rib facade, which is also an inward-curved single curvature facade. The central peak is 8.5 meters high, while the corner low point measures 5 meters.


>
