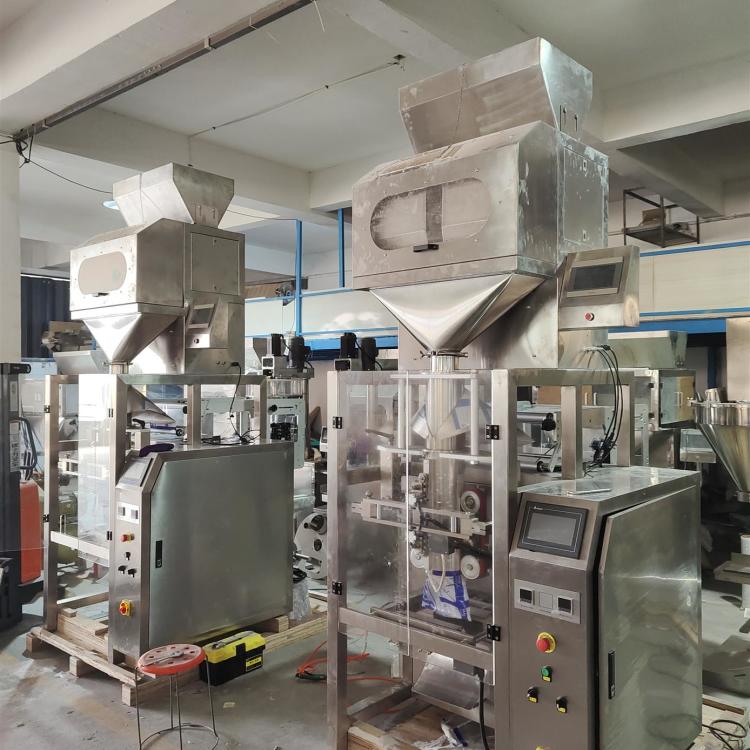

Technical Specifications of Fully Automatic Vertical Granule Packaging Machine:

Equipment Model: KL 420-KL 820 Series

Filler Head: Electronic Combination Scale

Packaging Range: 10g - 15kg

Packaging Accuracy: ±0.3-1%

Packaging speed: 25-45 bags/min (specific speed depends on material and bag size)

Bagging Width: 75-400mm

Bagging Length: 75-500mm

Film Width: 170-820mm

Film Thickness: 0.06mm - 0.08mm

Power Supply: 380V / 50Hz

Overall Power: 4.5Kw - 9.5Kw

Working Pressure: 0.6-0.8 MPa

Overall Weight: 700-1,000 kg

Dimensions: 1.9x1.6x3.0 meters (specific dimensions depend on equipment plan)

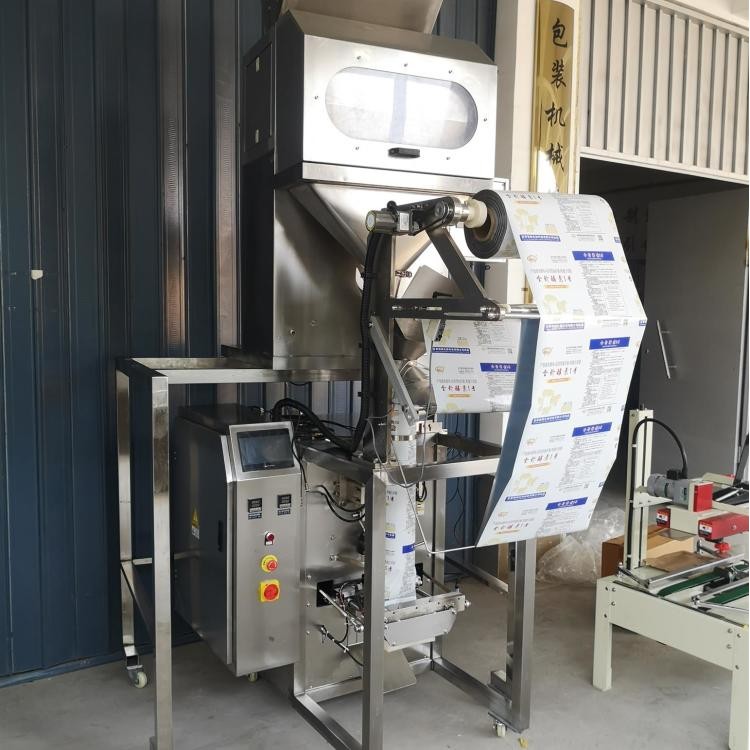

Name: Fully Automatic Granule Packaging Machine

Model: LY-6000K

Technical Specifications

Model: LY-6000K

Production Capacity: 30-50 bags/min

Range of measurement: 2-100g per bag (custom-made measuring cups based on customer's actual packaging quantity)

Bag Size: (L) 40-160mm (W) 40-100mm

Sealing Type: Back Sealed / Three-Sided Sealed / Four-Sided Sealed (Choose One)

Accuracy: ±2%

Total Power/Power: 1.2 kW

Power Voltage: 220V/50-60Hz

Packing Material: Paper/Polyethylene, Polyester/Aluminum Foil/Polyethylene, Nylon/Polyethylene, Tea Filter Paper, etc.

Paper/the polyethylene，polyester/aluminum foil/polyethylene，nylon/polyethylene，tea filter paper，etc

Net Weight: 200kg

Gross Weight: 230 kg

Overall Dimensions: (L) 650 (W) 760 (H) 1650mm

After packing: (L) 780(W) 810(H) 1750mm

Description: The fully automatic granule packaging machine can be customized according to packaging requirements, with slight variations in parameters.

Product Features

1. The fully automatic granule packaging machine can automatically complete all tasks such as weighing, bag-making, filling, sealing, cutting, counting, and batch numbering during the packaging process.

2. The fully automatic granule packaging machine control system is automated to match various actions, featuring high precision, easy bag length adjustment, and accurate results without error.

3. The fully automatic granule packaging machine features a color code control system, ensuring complete logo patterns for intact packaging.

4. The fully automatic granule packaging machine features stepless speed and bag length adjustment. The packaging speed and bag length can be adjusted continuously within the rated range without the need to replace any parts.

5. The fully automatic granule packaging machine is designed with a special embedded sealing, reinforced heat sealing mechanism, and intelligent temperature controller for precise temperature regulation. It boasts good thermal balance, adaptable to various packaging materials, excellent performance, low noise, clear sealing patterns, and strong sealing.
