With the accumulation of technological expertise and product reputation, Lin Shang Vacuum Coating Online Thickness Gauge LS152 has gained a certain reputation in the vacuum coating industry. Not only has it cultivated a loyal customer base, but it has also attracted a number of new cooperative clients. Recently, Kunshan Dongwei Technology Co., Ltd. has ordered its first custom...LS152 Vacuum Deposition Film Online Thickness GaugeFormally completed and subsequently handed over for use.
Kunshan Dongwei Science & Technology Co., Ltd. is a specialized company deeply engaged in the independent research and development of PCB (Printed Circuit Board) electroplating equipment. The company produces traditional PCB products such as one-time copper, double-time copper, electroplated nickel gold, PTH, and black oxidation, while actively promoting a new patented product – PCB Vertical Continuous Plating (VCP). The LS152 instrument custom-made for our company is primarily used for real-time monitoring of the quality of copper film products on the production line.
LS152 Vacuum Deposition Online Thickness Gauge Product Introduction
The LS152 Vacuum Deposition Film Thickness Gauge utilizes the principle that the transmittance (optical density) of a material is proportionally related to the thickness of its coating. By monitoring the optical transmittance of the material, it aims to control the thickness and uniformity of the material's coating. Custom requirements vary across different industries.

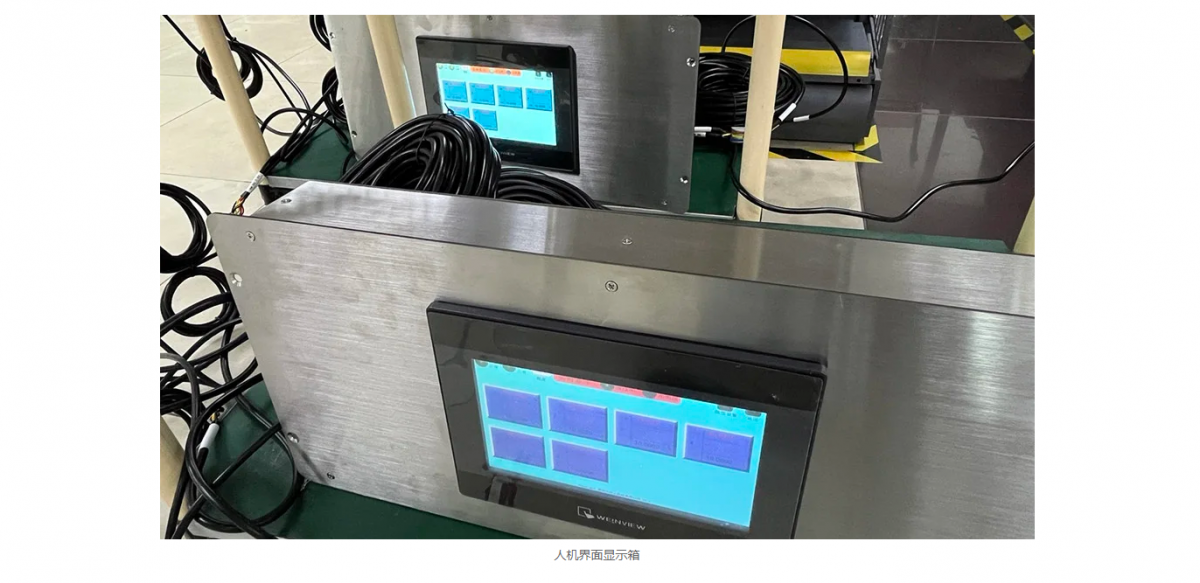

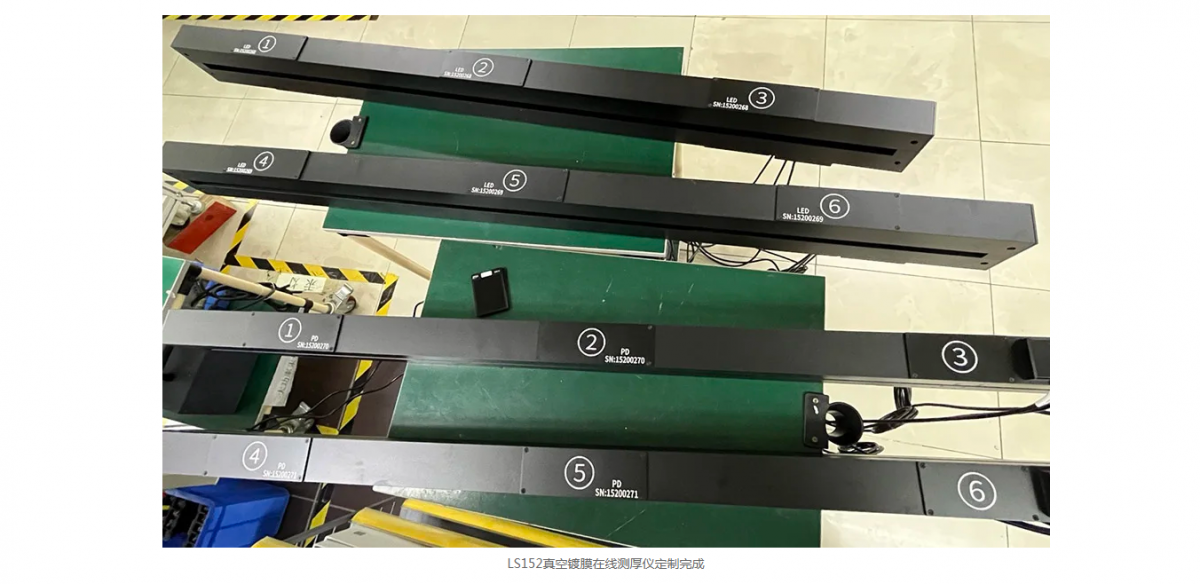

The customized equipment consists of four LS152 instruments, arranged in two pairs. Each instrument utilizes an 850nm light source, with three points per instrument, totaling six points per pair, and twelve in total. Each instrument has a width of 1510mm, with light source points spaced 500mm apart, with points 2 and 5 being the central positions. The custom equipment also includes a human-machine interface display box, shared by two instruments each.

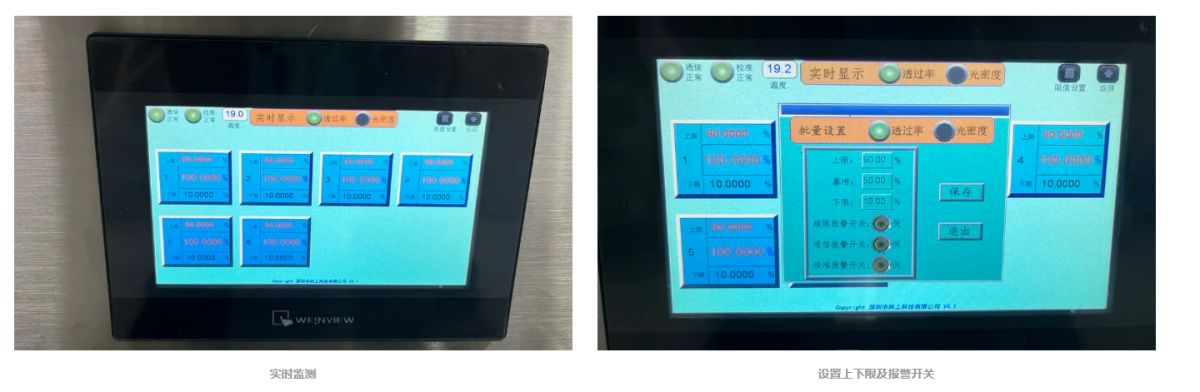

The human-machine interface display box comes with an alarm, which emits an alarm beep when the product is found to be不合格 by setting upper and lower limits and turning on the alarm switch, making it convenient for operators to promptly understand the product's status in practical applications.
LS152 Vacuum Deposition Film Thickness Gauge Product Advantages
Customizable Freedom, instruments can select the number of testing points freely, up to a customizable 45 points.
The dual communication protocol utilizes dual RS485 communication interfaces and the MODBUS communication protocol, allowing for connection to PLCs, human-machine interfaces, and computers, facilitating automation integration and achieving closed-loop control.
Highly resistant to interference, featuring stable test data, and utilizing temperature compensation technology, it ensures testing stability even in complex environments.
High measurement accuracy, the instrument's transmittance measurement precision can reach better than ±1%, comparable to well-known overseas online thickness gauges.
Optical non-contact measurement, which does not directly contact the test material, will not cause any damage to the material.
Modular design with an ultra-compact controller embedded within the measurement and control host, featuring super-easy usage and installation, and single-point detachable for convenient future maintenance.
Dust-resistant design ensures that dust does not affect the probe's internal components; simply clean the front glass of the probe.
The Overlimit Alarm Function Enhances Intelligent Quality Control, Reduces Dependence on Personnel, and Boosts Production Efficiency and Quality.
The continuous advancement of vacuum coating technology has propelled the rapid growth of the vacuum coating market, with the applications of products becoming increasingly diverse. The customizable nature of the LS152 online thickness gauge for vacuum coating can meet various application needs within the industry. For more information, please contact our business personnel. Welcome both new and existing customers to customize!
