Recently, Guangdong Hongwangda New Materials Co., Ltd. has customized with our company.LS152 Vacuum Coating Machine Online Thickness Measurement EquipmentThe project has been officially completed and is ready for use upon successful delivery.
The LinShang LS152 Vacuum Coating Online Thickness Gauge is a professional instrument for detecting transparent coatings. The instrument achieves the purpose of monitoring the coating thickness and uniformity of materials by measuring the optical transmittance of the material. It can monitor both the transmittance and light density parameters, and is widely used in the industry. The LinShang LS152 vacuum coater customized by Guangdong Hongwangda New Material Co., Ltd. has 5 testing points, with all light sources being 380-760nm white light, primarily using a diffuse transmission optical path.

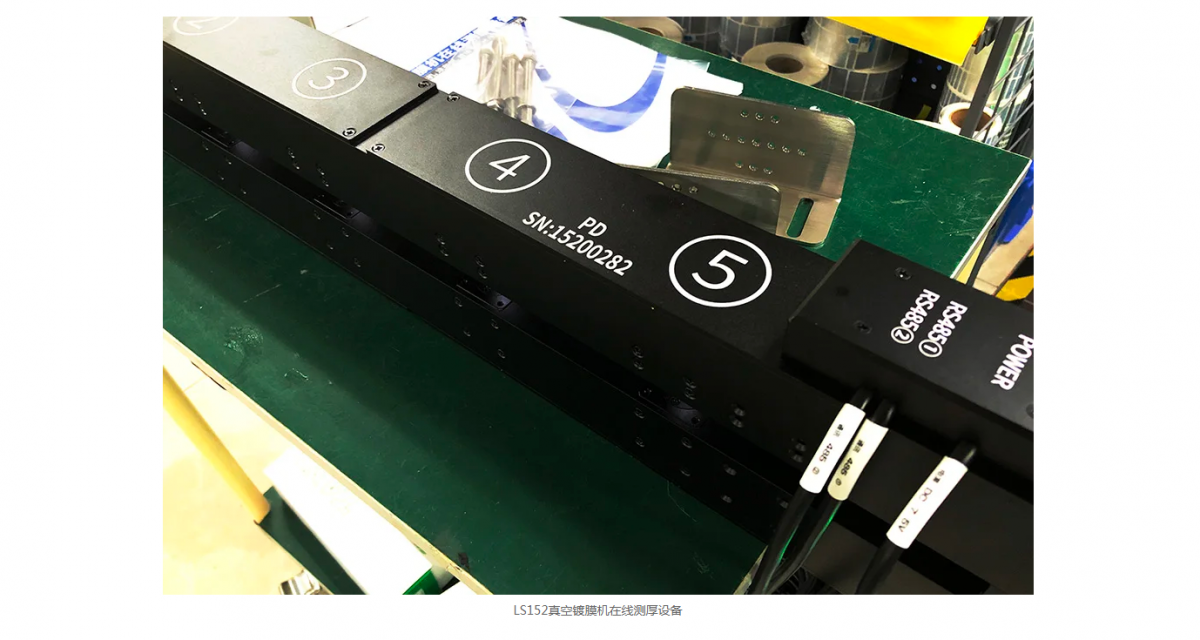

LS152 Vacuum Coating Machine
The application of coating is widespread, but the requirements vary across different industries. The LinShang LS152 vacuum coating machine supports flexible customization to meet the measurement needs of various industries. Its features include:
The instrument is composed of three parts: the control host, the human-machine interface control box, and the optional real-time computer monitoring software. In the customized instrument for Hongwangda New Materials Co., Ltd. this time, two human-machine interface units are required for monitoring.

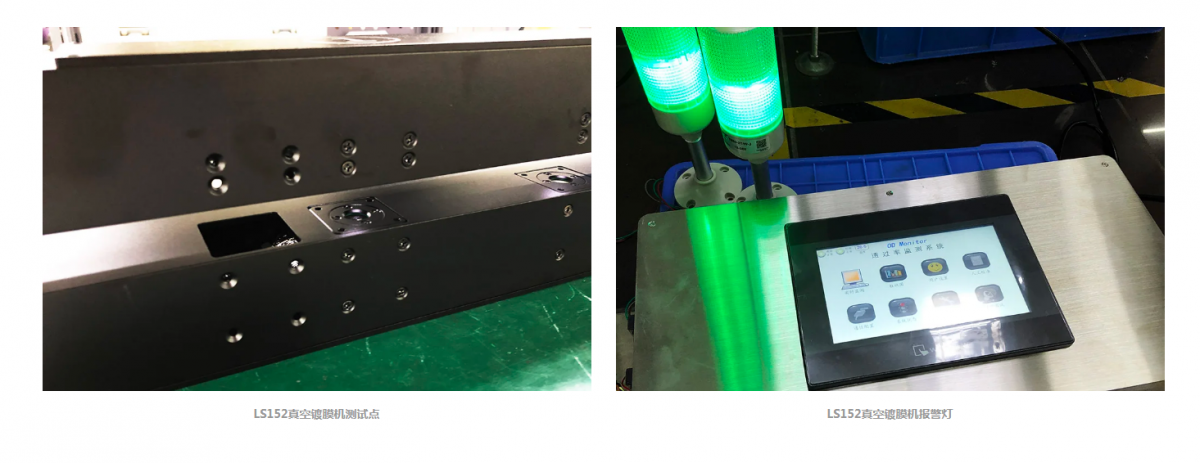

The flexible customization of the LS152 vacuum coating machine is also demonstrated in the free customization of test points. The instrument offers many customizable options for 45 test points, but in this customized machine, only 7 points were processed, with 5 being test point locations and the remaining two being reserved holes.
The instrument features a modular design, with the ultra-compact controller integrated within the measurement and control host, making both usage and installation simple. In addition, each point of the instrument is removable for easy maintenance.
Achieve intelligent control with limit alarm functions for instruments. An alarm will trigger when exceeding the customized threshold, reducing reliance on personnel and enhancing production efficiency and quality. Hongwangda New Material Co., Ltd. has customized two alarm lights for more convenient quality monitoring.
Non-contact optical measurement is used in our materials and instruments, ensuring no direct contact with the test material, thereby protecting the material.
The instrument features dual RS485 communication interfaces and MODBUS communication protocol, allowing for connection to PLCs, human-machine interfaces, and computers, facilitating automated integration and achieving closed-loop control.
The instrument can detect two parameters: transmittance and light density. The measurement accuracy of transmittance is superior to ±1%, with a resolution of 0.005%, comparable to renowned online thickness measurement devices overseas; the light density data ranges from 0.00 to 3.00 OD, with a resolution of 0.01 OD, and the values between 3.00 to 5.00 OD have a resolution of 0.05 OD.
The instrument also features a dust-proof design, ensuring that dust does not affect the probe's internal components. Subsequent cleaning only requires the glass at the probe's front end to be cleaned.
As the vacuum coating market evolves, an array of vacuum coating products emerges, each with varying detection requirements.LS152 Vacuum Coating Machine Online Thickness Measurement EquipmentCustomizable to meet various industry-specific application requirements, customers interested in learning more about online thickness measurement equipment for vacuum coating machines are welcome to contact our business personnel.
