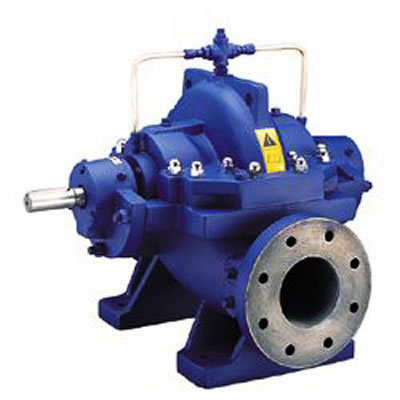

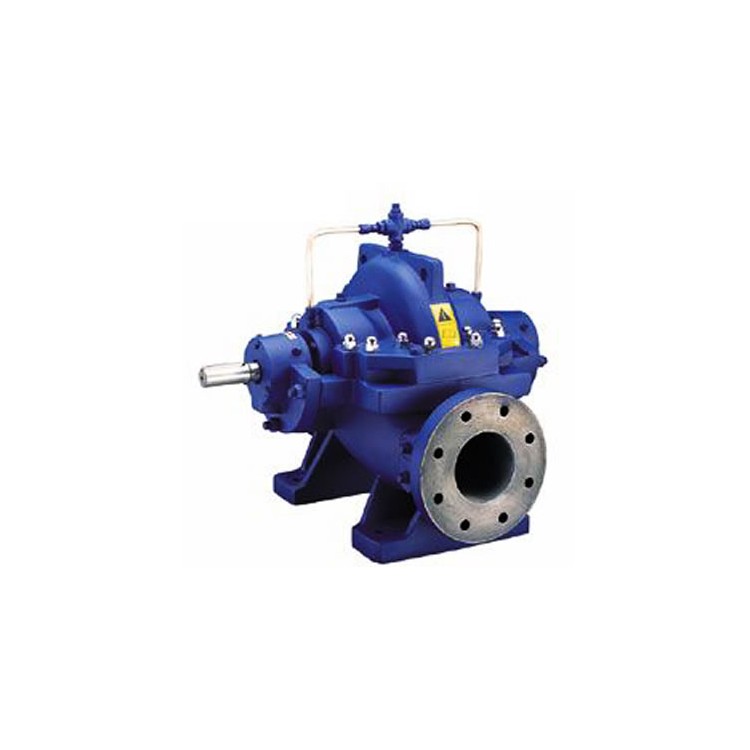

DLS Type Single Stage Double Suction Centrifugal Pump with Mid-Opening Impeller Shell
Product Application:
Suitable for water supply and recirculation applications with high flow rates and certain lift requirements.
Work Conditions:
RPM: 990, 1480, and 2960 rpm
Voltage: 380, 6K or 10KV
Inlet and outlet diameter: 150-600mm
Flow Range: 68～3,975 m³/h
Flow Range: 6～180m
Temperature Range: Liquid high temperature ≤100°C, special configuration up to 150°C, ambient temperature generally ≤40°C
High working pressure (import pressure + pumping pressure): 1.0 MPa (Hsp ≤ 75m) or 1.6 MPa (Hsp > 75m); special configurations can reach 1.6 MPa or 2.5 MPa respectively.
Permitted conveying medium: clear water or other liquids with similar physical and chemical properties to clear water
Sealed pipe components: Do not install when the imported pressure is ≥ 0.03 Mpa
Structure Design: Single-stage double-suction axial split-case centrifugal pump, horizontal installation, prime mover (electric motor or internal combustion engine)
