HJ Type Alkaline Liquid Chemical Pump

品牌：	Jiangsu Kainan
Brand：	Kai Nan
Application Scope：	Papermaking industry, steel industry, alkali production, nonferrous metallurgy, petrochemical industry.
Product Features：	Single-stage, single-suction, overhead arm centrifugal pump
单价：	电议
最小起订Quantity：	1 Tai
供货总Quantity：	10000 Tai
有效期至：	长期有效
最后更新：	2022-12-02 17:44

详细Info

I. Overview of HJ Chemical Process Pumps

The HJ Corrosion-Resistant Chemical Process Pump is a single-stage, single-suction, cantilevered centrifugal pump. Its marking, rated characteristics, and dimensions all comply with the GB5662-1985 standard, equivalent to ISO2858-1975. It belongs to the same type as the IH-type pump promoted by the state.

HJ chemical process pumps' components in contact with the medium commonly use cast iron, cast steel, 2Cr13, 0Cr18Ni9, 1Cr18Ni9, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 40Cr, Monel, 1Cr18Ni12Mo2Ti, Ti (Titanium), 00Cr17Ni12Mo2Ti, Hastelloy B alloy, 0Cr25Ni20, F5 series alloys, 20 alloy steel, and 0Cr25Ni6Mo3Cu2Mn2Si materials. The shaft seal uses mechanical, dynamic, and packing seals, allowing users to select according to the actual operating conditions.

Section II: Applications of HJ Chemical Process Pumps

Pulp and bleaching liquid conveyance in the papermaking industry.

Steel Industry: Electroplating, pickling, waste acid treatment.

Alkali Industry: Ammonium盐水 mother liquor from soda ash and ammonia-based alkali production, room temperature caustic soda from chlor-alkali production, chlorine and chlorate products, hypochlorite salts

Transportation of electrolyte for electrolytic copper and nickel, acid mist for cobalt production, slurry for zinc production, ammonium metavanadate for vanadium production, acid and thiourea solution for gold production, etc.

Petroleum & Chemicals: Acetaldehyde refining, alkylbenzene production.

Acid Manufacturing Industry: Nitric acid, sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, etc.

Synthetic fibers and plastics industry: polyester, polyvinyl chloride production, textile, dyeing and printing industry.

Fertilizer Industry: Production of urea, ammonium nitrate.

Environmental Protection: Acid mist liquid transfer.

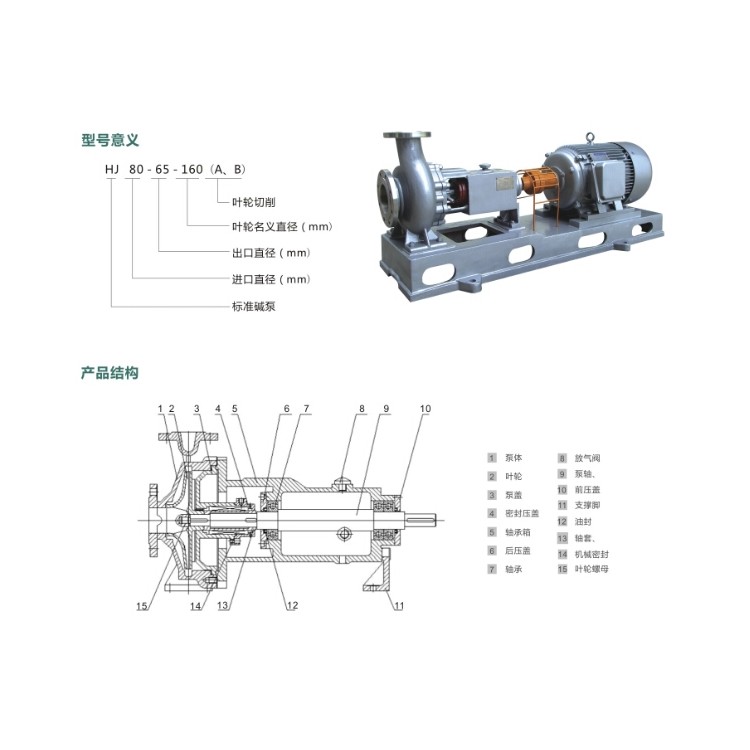

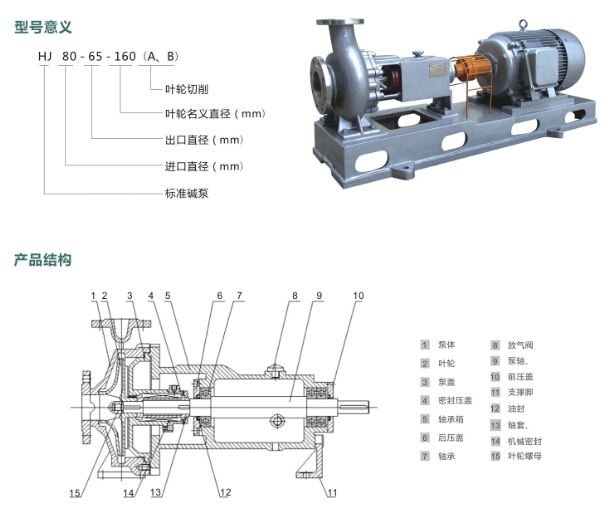

Section 3: HJ Chemical Process Pump Model Significance and Structure Diagram

Section 4: HJ Chemical Process Pump Performance Parameters

Pump model	Traffic Q		Yang Cheng H	RPM	Power P (kW)		Efficiency η	Necessary NPSH (Net Positive Suction Head)
	Traffic Q		Yang Cheng H	RPM	Power P (kW)		Efficiency η	（NPSH）(m)
	(m³/h)	(L/S)	(m)	(r/min)	Axial Power	Motor Power	（%）
HJ32-20-125	3.2	0.88	20	2900	0.48	Please provide the Chinese content you would like translated into American English.	35	5
HJ32-20-160	3.2	0.88	32		0.93	Liquid	30	3.5
HJ32-20-200	3.2	0.88	50		1.62	Body	27	4
HJ32-20-250	3.2	0.88	80		4.1	No Chinese content provided.	17	4.5
HJ40-20-125	6.3	1.74	20		0.66	Please provide the Chinese content you would like translated into American English.	52	5
HJ40-20-160	6.3	1.74	32		1.53	Heavily	36	3.5
HJ40-20-200	6.3	1.74	50		2.52	And	34	3.5
HJ40-20-250	6.3	1.74	80		5.3	Glue	26	4.5
HJ50-32-125	7.5	2.08	23	2900	1.09	Degree	43	2
	12.5	3.47	20		1.33	Select	51	2
	15	4.17	18		1.5	Please provide the Chinese content you would like to be translated into American English.	49	2.5
HJ50-32-125A	6.8	1.89	18.8	2900	0.87		40	2
	11.3	3.14	16.4		1.01		50	2
	13.6	4.17	14.7		1.16		47	2.5
HJ50-32-125	3.75	1.04	5.75	1450	0.16		36	1
	6.3	1.74	5		0.19		45	1
	7.5	2.08	4.5		0.21		44	1.2
HJ50-32-125A	3.4	0.94	4.7	1450	0.13		33.3	1
	5.7	1.59	4.1		0.149		43	1
	6.8	1.89	3.7		0.163		42	1.2
HJ50-32-160	7.5	2.08	34.5	2900	2.13		33	2
	12.5	3.47	32		2.37		46	2
	15	4.17	30		2.45		50	2.5
HJ50-32-160A	6.8	1.89	28.5	2900	1.76		30	2
	11.3	3.14	26.4		1.85		44	2
	13.6	3.78	24.8		1.91		48	2.5
HJ50-32-160	3.75	1.04	8.6	1450	0.3		29	1
	6.3	1.74	8		0.34		40	1
	7.5	2.08	7.5		0.36		43	1.2
HJ50-32-160A	3.4	0.94	7.1	1450	0.253		25.9	2
	5.7	1.59	6.6		0.277		37.1	2
	6.8	1.89	6.2		0.28		41	2.5
HJ50-32-200	7.5	2.08	51.8	2900	3.78		28	2
	12.5	3.47	50		4.36		39	2
	15	4.17	48		4.56		43	2.5
HJ50-32-200A	6.8	1.89	42.7	2900	3.16		25	2
	11.3	3.14	41		3.24		38	2
	13.6	3.78	39.5		3.57		41	2.5
HJ50-32-200	3.75	1.04	12.9	1450	0.57		23	1
	6.3	1.74	12.5		0.65		33	1
	7.5	2.08	12		0.68		36	1.2
HJ50-32-200A	3.4	0.94	10.6	1450	0.488		20	1
	5.7	1.59	10.3		0.516		31	1
	6.8	1.89	9.9		0.54		34	1.2
HJ50-32-250	7.5	2.08	82	2900	7.28		23	2
	12.5	3.47	80		8.25		33	2
	15	4.17	78.5		8.79		36.5	2.5
HJ50-32-250B	7	1.94	71.9	2900	6.84		20	2
	11.7	3.25	70		6.97		32	2
	14	3.89	68.8		7.71		34	2.5
HJ50-32-250	3.75	1.04	20.5	1450	1.23		17	1
	6.3	1.74	20		1.27		27	1
	7.5	2.08	6.2		1.29		31	1.2
HJ50-32-250A	3.51	0.98	18	1450	1.12		15.4	1
	5.9	1.64	17.5		1.125		25	1
	7.02	1.95	17.2		1.18		27.9	1.2
HJ65-50-125	15	4.17	21.3	2900	1.85		47	2
	25	6.94	20		2.2		62	2
	30	8.33	18.6		2.4		63	2.5
HJ65-50-125A	13.6	3.78	17.6	2900	1.48		44	2
	22.7	6.31	16.5		1.67		61	2
	27.3	7.58	15.4		1.91		59.9	2.5
HJ65-50-125	7.5	2.08	5.4	1450	0.25		44	1
	12.5	3.47	5		0.31		55	1
	15	4.17	4.5		0.33		56	1.2
HJ65-50-125A	6.8	1.89	4.5	1450	0.23		41	1
	11.3	3.14	4.1		0.234		54	1
	13.6	3.78	3.7		0.258		53	1.2
HJ65-50-160	15	4.17	34.2	2900	3.18		44	2
	25	6.94	32		3.82		57	2
	30	8.33	30		4.15		59	2.5
HJ65-50-160A	13.6	3.78	28.4	2900	2.56		41	2
	22.7	6.31	26.5		2.93		56	2
	27.3	7.58	24.8		3.29		56	2.5
HJ65-50-160	7.5	2.08	8.55	1450	0.45		39	1
	12.5	3.47	8		0.53		51	1
	15	4.17	7.5		0.58		52.5	1.2
HJ65-50-160A	6.8	1.89	7.09	1450	0.37		35.5	1
	11.3	3.14	6.6		0.41		49.6	1
	13.6	3.78	6.2		0.46		49.9	1.2
HJ65-40-200	15	4.17	53.2	2900	5.3		41	2
	25	6.94	50		6.55		52	2
	30	8.33	47.6		7.27		53.5	2.5
HJ65-40-200A	13.6	3.78	43.9	2900	4.28		38	2
	22.7	6.31	41		5.07		50	2
	27.3	7.58	39.3		5.73		51	2.5
HJ65-40-200	7.5	2.08	13.3	1450	0.78		35	1
	12.5	3.47	12.5		0.93		46	1
	15	4.17	11.9		1.02		47.5	1.2
HJ65-40-200A	6.8	1.89	11	1450	0.64		31.8	1
	11.3	3.14	10.3		0.72		44	1
	13.6	3.78	9.8		0.81		44.8	1.2
Pump model	Traffic Q		Yongcheng H	RPM	Power P (kW)		Efficiency η	Necessity for NPSH (Net Positive Suction Head)
	Traffic Q		Yongcheng H	RPM	Power P (kW)		Efficiency η	（NPSH）(m)
	(m³/h)	(L/S)	(m)	(r/min)	Shaft Power	Motor Power	（%）
HJ65-40-250	15	4.17	81.2	2900	9.76	As per	34	2
	25	6.94	80		11.84	Liquid	46	2
	30	8.33	78.4		12.8	Body	50	2.5
HJ65-40-250A	14	3.89	71	2900	8.73	No content provided for translation.	31	2
	23.4	6.5	74.8		10.6	Please provide the Chinese content you would like translated into American English.	45	2
	28	7.78	68.6		11.13	Heavily	47	2.5
HJ65-40-250B	13.2	3.67	62.8	2900	7.29	And	31	2
	22	6.11	61.8		8.42	Glue	44	2
	26.4	7.33	53		8.45	Degree	45	2.5
HJ65-40-250	7.5	2.08	20.3	1450	1.48	Select	28	1
	12.5	3.47	20		1.75	Please provide the Chinese content to be translated.	39	1
	15	4.17	19.6		1.86		43	1.2
HJ65-40-250A	7	1.94	17.8	1450	1.35		43	1
	11.7	3.25	17.5		1.47		25	1
	14	3.89	17.2		1.64		37.9	1.2
HJ65-40-315	15	4.17	126.8	2900	18.5		40	2
	25	6.94	125		21.8		28	2
	30	8.33	124		23.8		39	2.5
HJ65-40-315A	14	3.89	111.2	2900	18.1		42.5	2
	23.4	6.5	109.5		18.36		25	2
	28	7.78	108.8		22.12		38	2.5
HJ65-40-315B	13.2	3.67	98	2900	14.69		40	2
	22	6.11	96.5		15.63		24	2
	26.4	7.33	95.9		17.67		37	2.5
HJ65-40-315	7.5	2.08	32.4	1450	3		39	1
	12.5	3.47	32		3.3		22	1
	15	4.17	31.7		3.5		33	1.2
HJ65-40-315A	7	1.94	28.4	1450	2.84		37	1
	11.7	3.25	28		2.78		31	1
	14	3.89	27.8		3.12		34	1.2
HJ80-65-125	30	8.33	23.2	2900	3.16		60	3
	50	13.9	20		3.95		69	3
	60	16.7	17.6		4.29		67	4
HJ80-65-125A	27.2	7.56	19.1	2900	2.48		57	3
	45.3	12.58	16.5		3.04		67	3
	54.4	15.12	14.5		3.36		64	4
HJ80-65-125	15	4.17	5.8	1450	0.44		54	1.5
	25	6.94	5		0.53		64	1.5
	30	8.33	4.4		0.58		62	1.7
HJ80-65-125A	13.6	3.78	4.8	1450	0.349		51	1.5
	22.6	6.28	4.1		0.407		62	1.5
	27.2	7.56	3.6		0.452		59	1.7
HJ80-65-160	30	8.33	36	2900	5.16		57	2
	50	13.9	32		6.5		67	2.3
	60	16.7	28.4		7.14		65	3.3
HJ80-65-160A	27.2	7.56	29.7	2900	4.08		54	2
	45.4	12.6	26.4		5.02		65	2.3
	54.4	15.12	23.4		5.39		62	2.3
HJ80-65-160	15	4.17	9	1450	0.74		50	1.1
	25	6.94	8		0.88		62	1.1
	30	8.33	7.2		0.95		62	1.3
HJ80-65-160A	13.6	3.78	7.4	1450	0.58		47.3	1.1
	22.7	6.31	6.6		0.68		60	1.1
	27.2	7.56	5.9		0.74		59	1.3
HJ80-50-200	30	8.33	55.2	2900	8.5		53	2
	50	13.9	50		10.8		63	2.5
	60	16.7	45.2		11.9		62	3.2
HJ80-50-200A	27.2	7.56	45.4	2900	6.73		50	2
	45.3	12.58	41		8.29		61	2.5
	54.4	15.12	37.2		9.35		59	3.2
HJ80-50-200	15	4.17	13.5	1450	1.25		44	1.1
	25	6.94	12.5		1.49		57	1.1
	30	8.33	11.5		1.6		58	1.3
HJ80-50-200A	13.6	3.78	11.1	1450	1		41	1.2
	22.7	6.31	10.3		1.135		56.1	1.2
	27.2	7.56	9.5		1.28		55	1.4
HJ80-50-250	30	8.33	84	2900	16		43	2.5
	50	13.9	80		20.6		53	2.5
	60	16.7	75		22.7		54	2.5
HJ80-50-250A	28.14	7.82	73.55	2900	13.2		42.7	2.5
	46.9	13.03	70.5		16.1		56	2.5
	56.28	15.63	67.4		17.8		58.03	3
HJ80-50-250B	26.4	7.33	64.8	2900	11.4		40.86	2.5
	44	12.22	62.2		13.8		54	2.5
	52.8	14.67	60		15		50	3
HJ80-50-250	15	4.17	21	1450	2.15		51	2
	25	6.94	20		2.72		50	1.2
	30	8.33	18.8		3.01		51	1.2
HJ80-50-250A	14.04	3.9	18.2	1450	1.66		42	1.5
	23.4	6.5	17.6		2.25		50	1.2
	28.08	7.8	16.7		2.63		48.5	1.2
HJ80-50-315	30	8.33	128	2900	33.1		38	1.5
	50	13.9	125		34.1		50	2.5
	60	16.7	123		38		53	3
HJ80-50-315A	28.14	7.82	113.4	2900	21.5		40.4	2
	46.9	13.03	110		28.1		50	2
	56.28	15.63	107.7		30		55	2.5
HJ80-50-315B	26.4	7.33	100.5	2900	17		43.5	2
	44	12.22	97		24.2		48	2
	52.8	14.67	95		25		54.6	2.5
HJ80-50-315	15	4.17	32.5	1450	3.59		37	1
	25	6.94	32		4.54		48	1
	30	8.33	31.5		4.95		52	1.2
Pump model	Traffic Q		YanCheng H	RPM	Power P (kw)		Efficiency η	Necessary NPSH (Net Positive Suction Head)
	Traffic Q		YanCheng H	RPM	Power P (kw)			（NPSH）(m)
	(m³/h)	(L/S)	(m)	(r/min)	Axial Power	Motor Power	（%）
HJ80-50-315A	14.1	3.92	29.2	1450	3.52	As per	31.8	1
	23.5	6.53	28.3		4.12	Liquid	44	1
	28.2	7.83	27.1		4.41	Body	47.2	1.2
HJ100-80-125	60	16.7	23.7	2900	5.96	No Chinese content provided.	65	3
	100	27.8	20		7.47	Please provide the Chinese content to be translated.	73	4.2
	120	33.3	16.3		7.72	Heavy	69	4.8
HJ100-80-125A	55	15.3	19.4	2900	4.68	And	62	3
	91.8	25.5	16.8		5.9	Glue	71	4.2
	109	30.5	13.7		6.12	Degree	67	4.8
HJ100-80-160	60	16.7	37	2900	10.1	Select	60	3.8
	100	27.8	32		11.9	Used	73	4.3
	120	33.3	28		12.5		73	5
HJ100-80-160A	54.6	15.17	30.6	2900	7.98		57	3.8
	91	25.28	26.5		9.25		71	4.3
	109.2	30.34	23.2		9.85		70.4	5
HJ100-80-160	30	8.33	9.25	1450	1.3		58	2.1
	50	13.9	8		1.58		69	2.1
	60	16.7	7		1.68		68	2.3
HJ100-80-160A	27.3	7.58	7.66	1450	1.03		55.3	2.1
	45.5	12.64	6.6		1.22		67	2.1
	54.6	15.16	5.8		1.32		65.3	2.3
HJ100-65-200	60	16.7	56	2900	14.5		63	3.4
	100	27.8	50		18.9		72	3.9
	120	23.3	44		20.3		71	5.2
HJ100-65-200A	54.6	15.17	46.5	2900	11.5		60.1	3.4
	91	25.28	41.5		14.7		70	3.9
	109.2	30.34	36.6		16		68	5.2
HJ100-65-200	30	8.33	14	1450	1.91		60	1.8
	50	13.9	12.5		2.5		68	1.8
	60	16.7	11		2.85		63	2.1
HJ100-65-200A	27.3	7.58	11.6	1450	1.51		57	1.8
	45.5	12.64	10.3		1.83		66	1.8
	54.6	15.16	9.1		2.52		60.1	2.1
HJ100-65-250	60	16.7	88	2900	25.2		57	3
	100	27.8	80		32		68	3.6
	120	33.3	74		36.1		67	4.5
HJ100-65-250A	56.11	15.58	77	2900	21.8		54	3
	93.5	25.97	70		27.4		65	3.6
	112.2	31.16	64.7		30.9		64	4.5
HJ100-65-250B	52.7	14.64	67.9	2900	18.3		53.3	3
	87.8	24.39	61.7		23.1		64	3.6
	105.4	29.28	57		26		62.9	4.5
HJ100-65-250	30	8.33	22	1450	3.6		50	1.8
	50	13.9	20		4.3		63	1.8
	60	16.7	18.5		4.7		64	2.1
HJ100-65-250A	28	7.79	19.2	1450	3.12		47	1.8
	45.5	12.64	17.4		3.53		61	1.8
	56	15.58	16.2		4.06		60.9	2.1
HJ100-65-315	60	16.7	132	2900	44.9		48	2.8
	100	27.8	125		54.9		62	3.2
	120	33.8	119		60.8		64	4.2
HJ100-65-315A	56.1	15.58	115.5	2900	39.2		45	2.8
	93.5	25.97	109		45.5		61	3.2
	112.2	31.16	104		52.1		61	4.2
HJ100-65-315B	52.7	14.64	102	2900	33.3		44	2.8
	88	24.44	97		38.7		60	3.2
	105.4	29.28	92		44		60	4.2
HJ100-65-315	30	8.33	33.5	1450	6.2		44	1.6
	50	13.9	32		7.5		58	1.6
	60	16.7	30.5		8.3		60	1.9
HJ100-65-315A	28	7.79	29.3	1450	5.46		41	1.6
	46.5	12.92	28		6.33		56	1.6
	56	15.58	26.7		7.15		57	1.9
HJ125-80-160				2900
	160	44.4	32		17.7		79	5.3

HJ125-80-200				2900
	160	44.4	50		28.3		77	4.3

HJ125-80-250				2900
	160	44.4	80		47.1		74	4

HJ125-100-200	120	33.3	61	2900	29.3		68	4.5
	200	55.6	50		35.4		77	5
	240	66.7	41		38.3		70	5.8
HJ125-100-200A	109.1	30.3	50.5	2900	23.1		64.9	4.5
	182	50.56	41.4		27.4		75	5
	218.2	60.6	34		30.1		67.1	5.8
HJ125-100-200	60	16.7	15.25	1450	3.89		64	2.5
	100	27.8	12.5		4.66		73	2.9
	120	33.3	10.25		5.08		66	3.6
HJ125-100-200A	54.7	15.2	12.6	1450	3.08		61	2.5
	91	25.28	10.3		3.6		71	2.9
	109.4	30.4	8.5		4.02		63	3.6
HJ125-100-250	120	33.3	90	2900	47.4		62	3.7
	200	55.6	80		58.1		75	4.5
	240	66.7	73		64.5		74	5.5
HJ125-100-250A	112	31.1	78	2900	40.3		59	3.7
	186.5	51.8	69.5		48.35		73	4.5
	224	62.2	63.5		54.5		71	5.5
HJ125-100-250B	105.5	29.3	69	2900	34.2		58	3.7
	175.5	48.75	61.5		41.4		71	4.5
	211	58.6	56		46		69.9	5.5
HJ125-100-250	60	16.7	22.5	1450	6.23		59	2
	100	27.8	20		7.56		72	2.3
	120	33.3	18.25		8.4		71	3
HJ125-100-250A	56	15.56	19.5	1450	5.31		56	2
	93	25.83	17.4		6.29		70	2.3
	112	31.1	15.9		7.13		68	3
HJ125-100-315	120	33.3	132.5	2900	65.3		52.6	4
	200	55.6	125		94.6		72	4.5
	240	66.7	120		103		75	5
HJ125-100-315	60	16.7	33.5	1450	10.3		53	2.5
	100	27.8	32		13.5		65	2.5
	120	33.3	30.5		15.1		66	3
HJ125-100-400	60	16.7	52	1450	17.7		48	2.5
	100	27.8	50		24.8		55	2.5
	120	33.3	58.5		25.5		62	3
HJ125-100-400A	54.6	15.17	46	1450	13		44	2.4
	91	25.28	41		19		51	2.5
	109.2	30.34	36.6		19.6		58	3
HJ150-125-250	120	33.3	24.8	1450	12.3		66	2.5
	200	55.6	20		14.1		77	2.8
	240	66.7	15		14.4		68	3.5
HJ150-125-250A	109.1	30.3	20.5	1450	9.7		62.8	2.5
	182	50.56	16.5		10.9		75	2.8
	218.2	60.6	12.4		11.3		65.2	3.5
HJ150-125-315	120	33.3	36.3	1450	18.8		63	2.5
	200	55.6	32		23.2		75	2.8
	240	30.3	28.5		25.9		72	3.8
HJ150-125-315A	109.1	30.3	36.3	1450	14.85		60	2.5
	182	55.6	32		17.32		73	2.8
	218.2	66.7	28.5		20.23		69	3.8
HJ150-125-400	120	33.3	57.5	1450	30.8		61	2
	200	55.6	50		38.9		70	2.5
	240	66.7	44		45.6		63	3
HJ150-125-400A	109.1	30.3	47.5	1450	24.3		58	2
	182	50.56	41		29.9		68	2.5
	218.2	60.6	36.5		36.1		60	3
HJ200-150-250	240	66.7	23	1450	23.3			2.5
	400	111.1	20		29.4		74	2.8
	460	127.8	8		30.6			3
HJ200-150-315	240	66.7	35.6	1450	34.7		67	3
	40	111.1	32		44.1		79	3.5
	460	127.8	29.4		47.8		77	4
HJ200-150-315A	218.2	60.6	29.4	1450	27.3		, 64	3
	100.8	25.5	32.7				77	3.5
	418	116.1	24.3		37.4		4
HJ200-150-400	240	66.7	55.8	1450	54.4		67	3
	400	111.1	50		69.8		78	3.5
	460	127.8	47		78.5		75	4
HJ200-150-400A	218.2	60.6	46	1450	42.7		64	3
	363	100.8	41		53.3		76	3.5
	418	116.1	38.8		61.3		72	4

询价单

Jiangsu Kainan Pump Industry Co., Ltd.

Forced Circulation Pumps, Screw Pump Rotor, Screw Pump St...

Product Center

News Dynamic

Honor Qualification

Contact us
