32768Hz is a commonly used clock frequency in quartz crystals, primarily for achieving precise timing. The time displayed on our watches, smartphones, and computers every day is provided by this frequency. So, as a standard frequency, what are the packaging sizes for 32.768KHz?

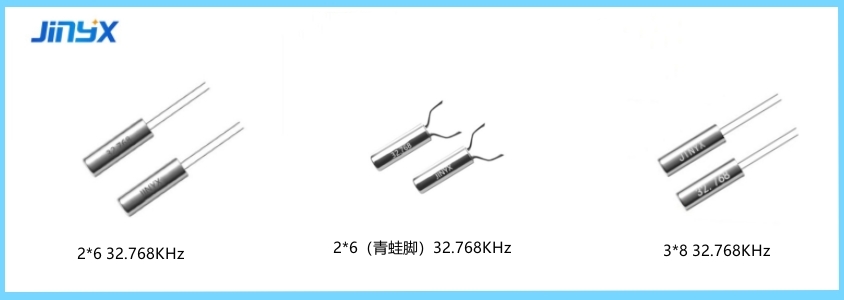

Plug-in Encapsulation: It features compact size, light weight, low resistance, low power consumption, and low cost. Common dimensions include:

2x6: DIP φ2.0x6.0, standard load capacitance: 6PF/7PF/9PF/12.5PF, accuracy up to +/-5PPM, +/-10PPM, +/-20PPM, +/-30PPM.

(2) 3x8: DIP φ3.0x8.0, standard load capacitance: 7PF/9PF/12.5PF, with precision up to +/-10PPM, +/-20PPM, and +/-30PPM.

2 : SMD Packaging: Features include ultra-thin, compact size, higher reliability and temperature resistance, better shock resistance, and higher welding efficiency.

(1) 1610 (1.6 x 1.0 x 0.5 mm), 2012 (2.0 x 1.2 x 0.6 mm), 3215 (3.2 x 1.5 x 0.75 mm), 2-pin metal packaging, compact size, ultra-thin common load capacitors: 6PF/7PF/9PF/12.5PF, accuracy up to +/-10PPM, +/-20PPM.

(2) The 7015 (7.0*1.5*1.4MM) and 8038 (8.0*3.8*2.5MM) models feature 4PIN ceramic packaging with excellent temperature resistance and cost-effectiveness. Common load capacitors include 6PF/7PF/12.5PF, with accuracy up to +/-10PPM and +/-20PPM.
