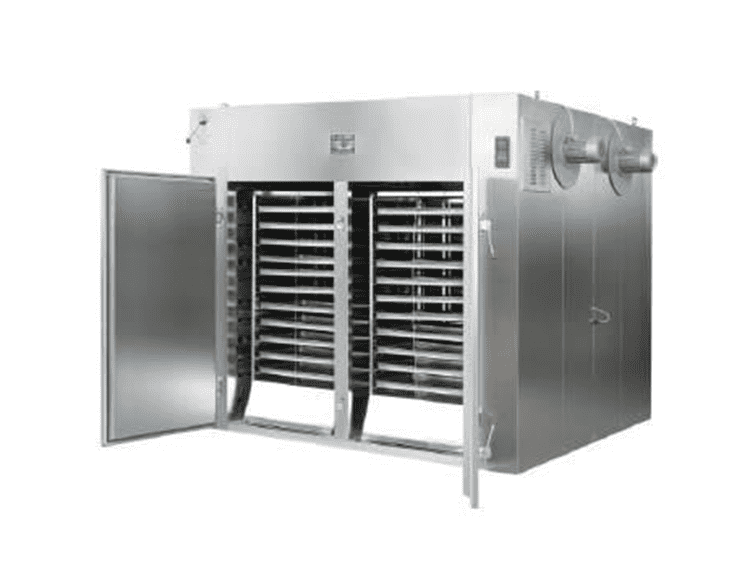

Hot Air Circulation Oven

A vehicle oven with hot air circulation, suitable for heating, curing, drying, and dehydrating materials in industries such as chemicals, food, agricultural by-products, aquatic products, light industry, and heavy industry.

Principle:

1. Available heat sources include steam, thermal oil, hot water, and electric heating pipes for customer selection.

2. Operating Temperature: Steam heated from 140 to 150 degrees.

3. Utilize electric heating up to 350 degrees.

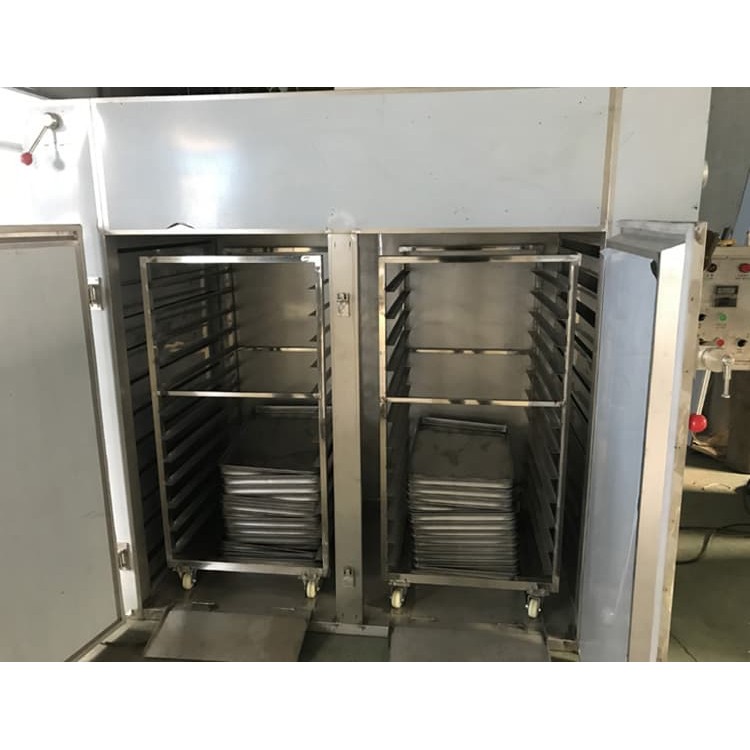

4. Our factory's oven cars and trays are uniform in size and interchangeable; we have four oven cars and 96 trays.

5. Oven dimensions (mm): 940 x 700 x 1300.

6. Tray Size: 640×460×45mm, Material: 304 stainless steel, Steam Heating Temperature: max 150°C, Electric Heating Temperature: max 350°C, Drying Time: adjustable

Full stainless steel 304, thermal insulation thickness 60mm, inner and outer panels 1.5mm thick, with thermal cotton in between.

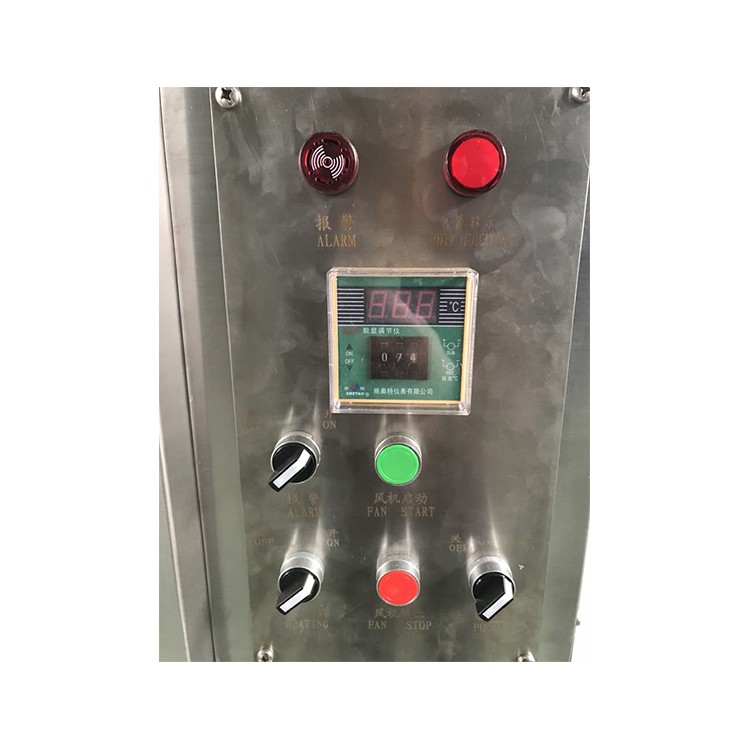

PID Brand ANTHONE

Features:

Most of the hot air circulates within the oven, ensuring high thermal efficiency and low energy consumption.

The oven is equipped with adjustable baffles, utilizing forced ventilation to achieve uniform drying of the target material.

The unit operates stably with low noise, automatic temperature control, easy installation and maintenance, and a wide range of applications.
