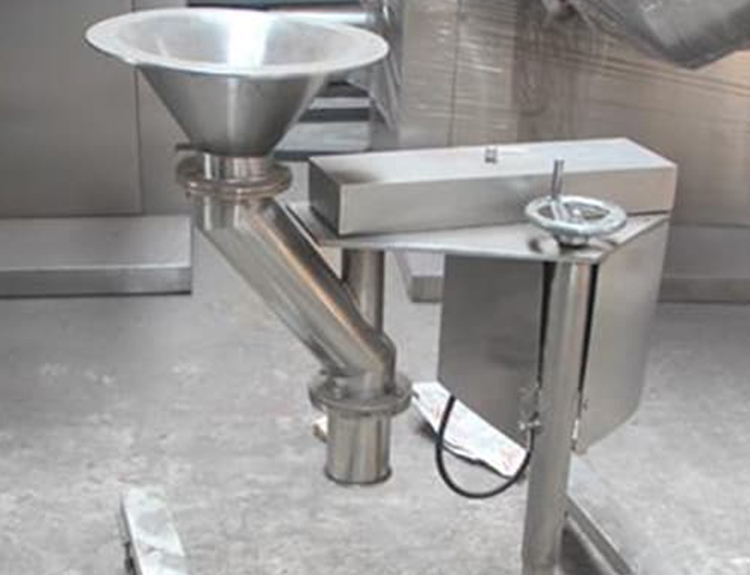

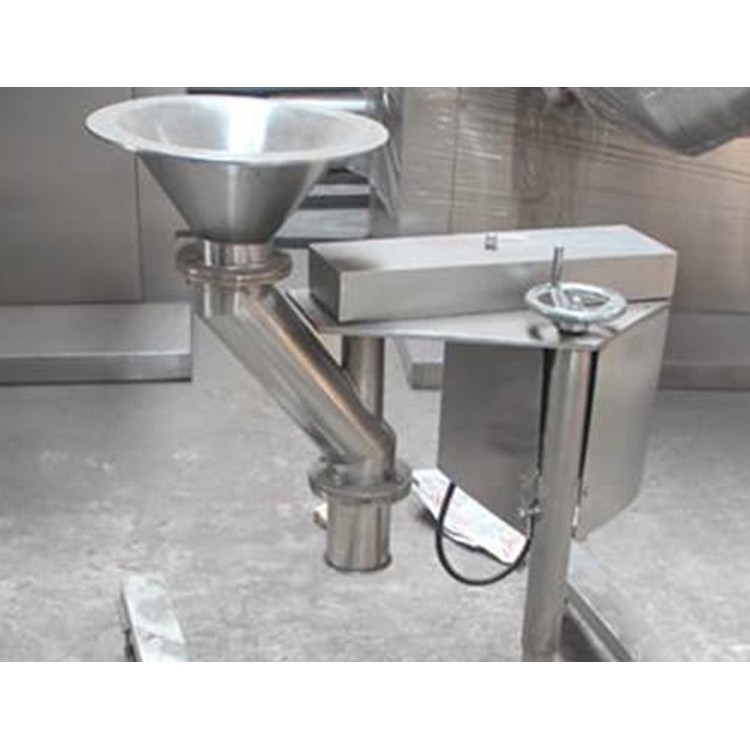

Quick Granulating Machine

Features:

Low heat generation and minimal dust during operation.

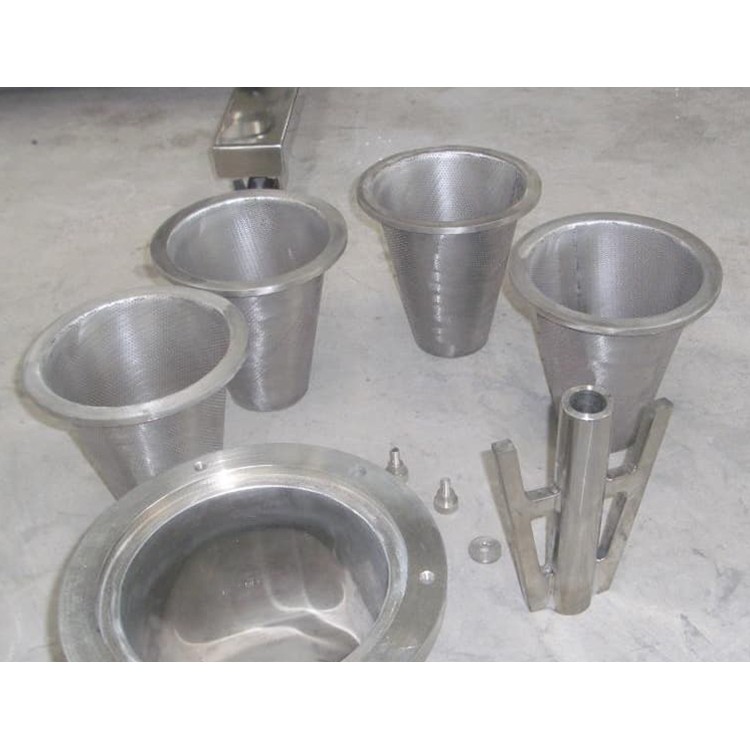

● The stator screen is made of stainless steel plate, durable and less prone to damage.

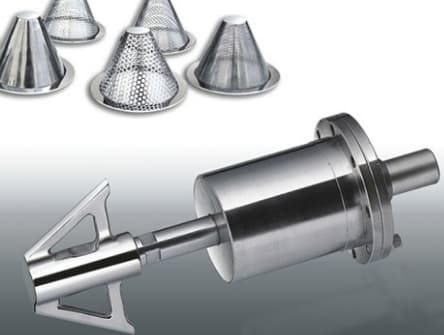

The gap between the crushing blade and sieve is adjustable.

● Handles sticky, gum-like, heat-sensitive, and moist materials.

Working Principle:

The quick granulator is widely used in the chemical and food industries, with excellent results. The machine features a well-designed filter screen, rod, capable of粉碎 large quantities of fragile materials. It employs the principle of centrifugal force, using a filter screen with special holes for meticulous screening. The dedicated friction filter rod can crush sturdy particles and simultaneously grind large polymer chunks.

Application Range:

Dry, wet granulation with uniform particle size, whole granules.

2. Crushing of lumpy materials and whole grains.

3. Thermosensitive Material Crushing

This unit is suitable for the crushing and sorting of granules in industries such as food, chemical pigments, and feed.

● The granules obtained through various granulation processes and equipment come in different shapes and sizes. After the granulated particles are cut by the high-speed rotating blades of this machine, they are discharged through a sieve plate, resulting in granules with consistent shapes and sizes.

All parts of this machine are made of stainless steel, with a polished surface for easy assembly, disassembly, and cleaning.
