1. Part Name: Mechanical Component 2. Anti-Rust Medium: Apply Anti-Rust Oil
II. Process Flow:
Loading → Apply oil (rust preventive oil) with atomizing spray → Blow oil with compressed air → Unloading
III. Technical Parameters: (Tentative)
1. Workpiece loading width: 600mm, height: 880mm
2. Equipment Dimensions: 3000×1400×1800 (Length x Width x Height)
3. Feed Rate: 0～1.5mm/min (Variable Frequency Drive) synchronized with existing equipment.
4. Rust Inhibitor: Rust Inhibiting Oil.
5. Fuel Tank Capacity: 0.4 m³ (reusable)
6. Spray Lubricator Pump Power: 0.55 kW (Explosion-proof) (Rust-proof Oil for Workpiece Mist Spray Lubrication)
7. Compressed Air Pressure: 400-600 MPa
8. A set of oil mist treatment system. (After processing, the residual oil mist is discharged externally.)

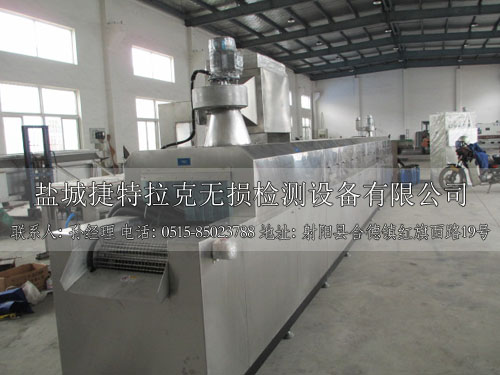

9. Working Method:
Automatic through-type, place the cleaned and dried workpiece at the loading mouth of the machine, the workpiece enters the conveyor belt smoothly through the link channel and automatically enters the misting spray rust-proof oil station, where the floating oil on the workpiece is blown off by compressed air and then discharged.
IV. Conveying System:
Composed of electric motor reducers, sprockets, stainless steel chains, main and driven shafts, conveyor belts, etc. The feed opening is equipped with a tensioning mechanism for adjustment during operation, and the discharge opening is fitted with an emergency stop button.
