Dry-type gear shaper SE series

Company operating the products:Nidec Machine Tool Corporation

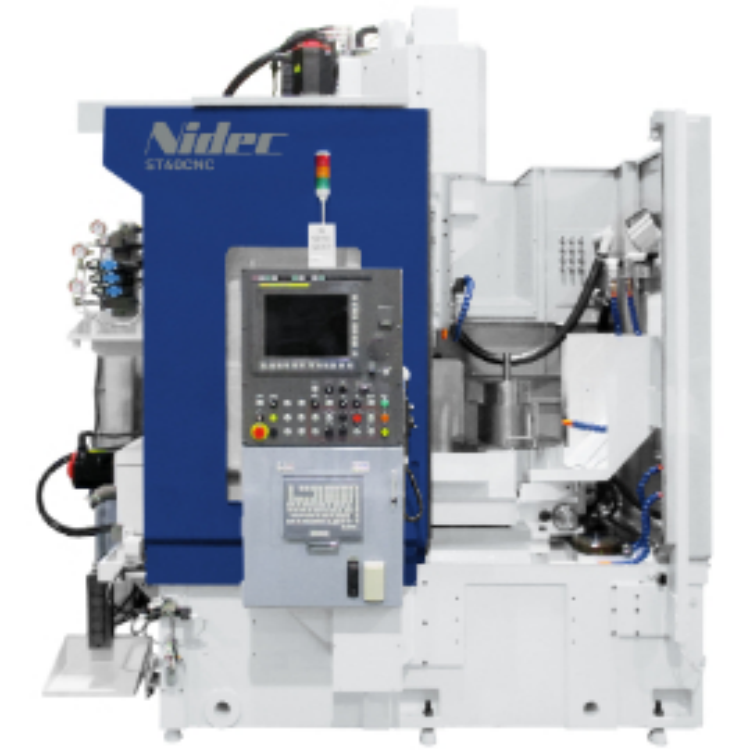

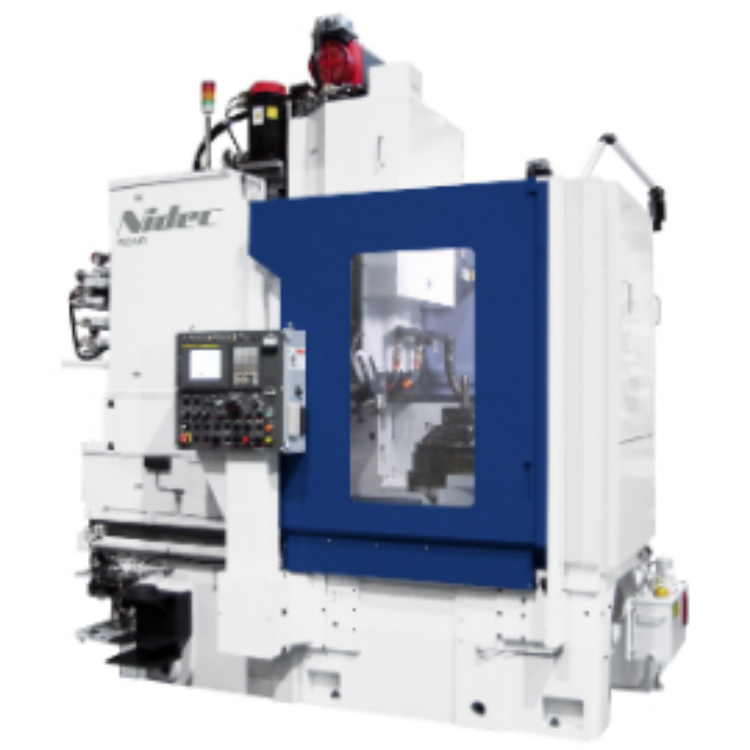

The SE series is a gear hobbing machine designed for complete dry cutting, offering stable and high-efficiency processing.



SE15A Series

· Workpiece Diameter （mm）
External Gear ⌀150
Inner Gear: ⌀150 (⌀60 + Tool Diameter)

· Modular
4



SE25A Series

· Workpiece Diameter （mm）
External Gear ⌀250
Internal Gear ⌀250 (⌀120 + Tool Diameter)

· Modular
6

· Features

· Specs

· Contact

Features

Totally dry cutting



Achieve easy assembly line organization through the modularization of transportation equipment.

Modularizing peripheral equipment and workpiece loading devices facilitates easy setup or layout changes on the production line. Therefore, it can greatly reduce the working time required for setting changes.
We offer two configurations for you to choose from based on the type of work.

· Type I: Flat front type suitable for manual workpiece loading

· TypeII: Suitable for narrow-width automated applications



Specs

Project/ Model

SE15A Series

SE25A Series

Workpiece Diameter

External Gear （mm）

⌀150

⌀250

Internal Gear （mm）

⌀150 (⌀60 + tool diameter)

⌀250 (⌀120 + Tool Diameter)

Modular

4

6

Gear Width （mm）

32

60

Spindle Stroke Speed （min-1)

400 to 2,000

180 to 1,800

Cutting次数

1-4

1 to 4

Tooling spindle diameter （mm）

⌀90

⌀90

Main Motor (Continuous Rated Value) （kW）

7.5

Controlled shaft count

4 or 5

Total electricity output （kVA）

22

24

Machine Weight （kg）

6,500

9,000
