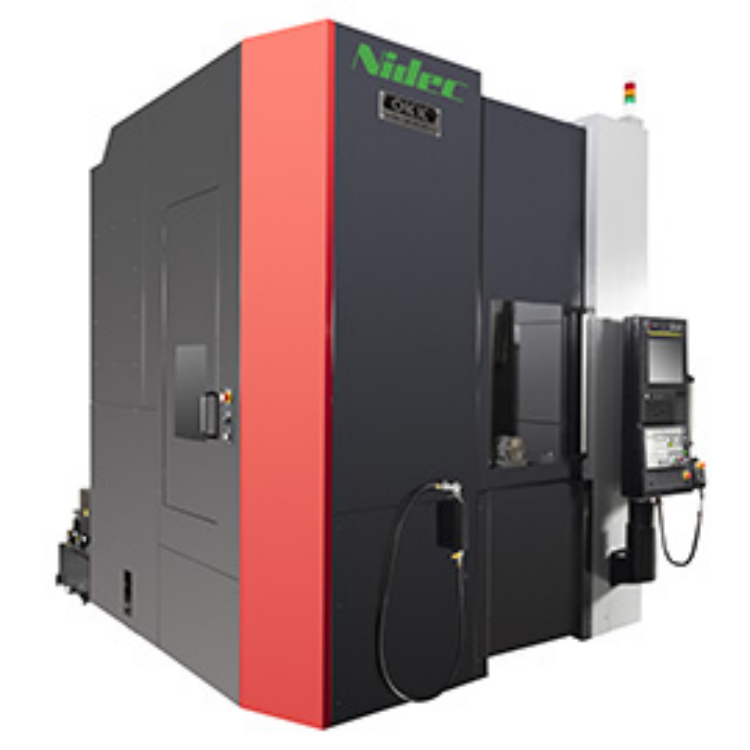

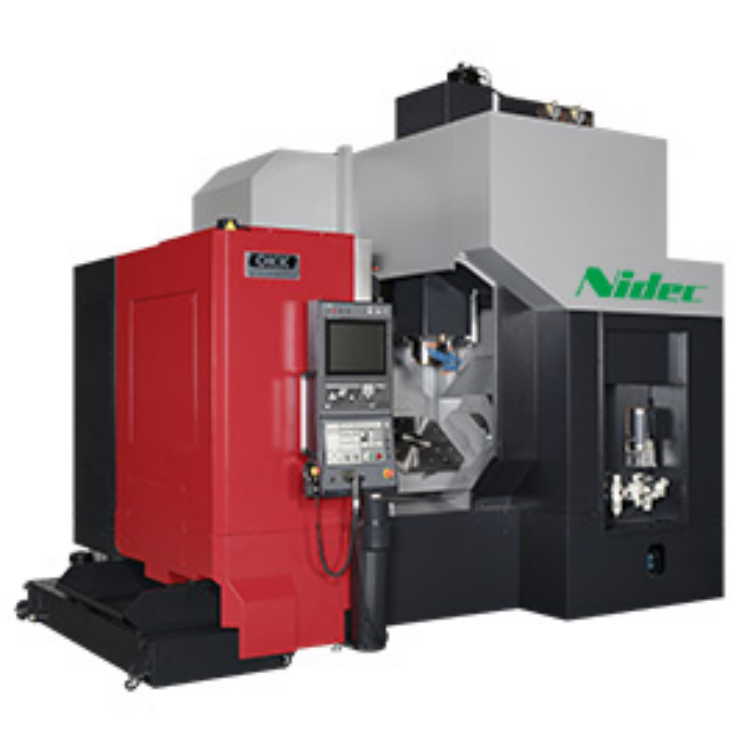

VC-X500 Series

Company: Nidec OKK Corporation

· Print

This machine tool showcases its prowess in efficiently integrating and processing complex and variable molds and components!

Nidec OKK's technology is focused in this unique 5-axis model. Process integration shortens the delivery time of the VCX-350, while setup improvements enhance its accuracy and ease the operator's workload.



· Product Data

· Product Features

Product Data

Product Specifications

InX/Y/Z axis movement

700/850/610 mm

InA/C shaft movement

-120 to 30/360 degrees

Table dimensions

500mm

Table Load Capacity

500 kg

Rapid movement speed

Wheelbase:48m/min Z-axis: 32m/min

Spindle Speed

12,000 minutes - 1 (OP: 20,000 minutes - 1)

Spindle taper

Item Number 40

Number of storage tools available

40 （OP：60,80,120）

Product Features

Main Structure



The product has expanded the processing area, enhancing space utilization.Y Axial displacement increased to240mm，z Axial displacement increased to150mmIn addition to expanding the processing area,VCX-500 The workpiece loading range has been increased compared to the existing models.60%。

Operational ease of the workbench



The operator of this product is positioned at a distance from the center of the workbench. 620mmThe distance between the floor surface and the top of the workbench is1,080mmThe operator's distance from the center of the main shaft is120mmWith these exceptional accessibility,VCX-500 Enhanced work efficiency.
