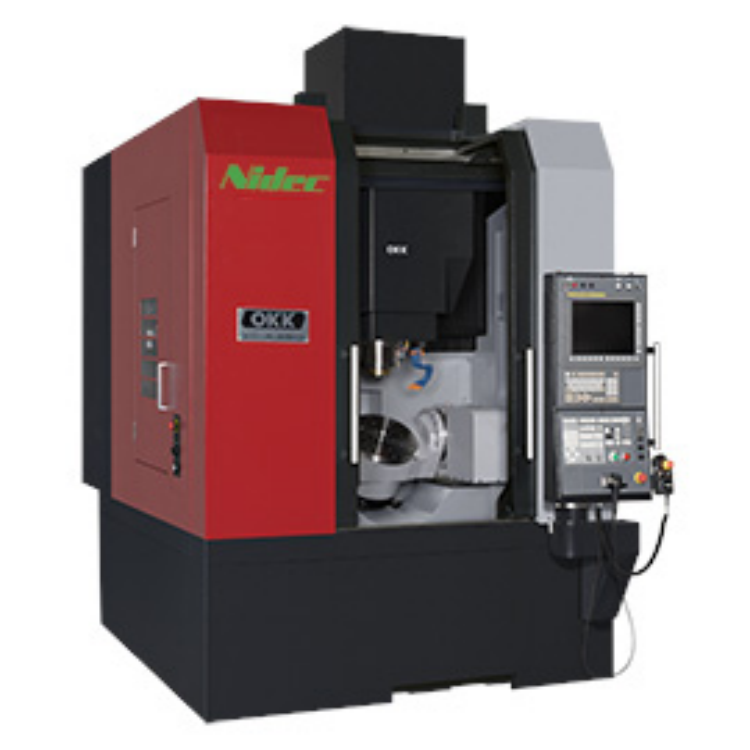

VC-X350 Series

Company: Nidec OKK Corporation

· Print

This machine tool showcases its prowess in efficiently integrating and processing complex and variable molds and components!

Nidec OKK's technology is concentrated in this unique 5-axis model. Process integration shortens the delivery time of the VCX-350, while setting improvements enhance its accuracy and ease the operator's workload.



· Product Data

· Product Features

Product Data

Product Specifications

Please provide the Chinese content you would like translated into American English.Motion along the X/Y/Z axes

600/430/460 mm

Please provide the Chinese content to be translated.A/C shaft movement

-120 to 30/360 degrees

Palette dimensions

φ350mm

Loadable weight of the table

200 kg

Rapid movement speed

Wheelbase:50m/min on Z-axis: 36m/min

Spindle Speed

12000 minutes - 1 (OP: 20000 minutes - 1)

Main shaft taper

Part Number 40

Number of Storage Tools Available

20 (Operations: 30, 40, 60, 80)

Product Features

Main Structure



The round table's rotation speed is twice that of the current model, with the rapid feed speed increased.50m/minEnhanced efficiency.

Linear roller guide tracks and ball screw



VCX-350 Utilizing a straight roller guide rail larger than the existing models, its rigidity is roughly equivalent. Furthermore, by employing large-diameter ball screws, the rigidity and cutting performance of this model have been enhanced.

Air Traffic Control



The model utilizes Nippon Chemi-Con components. OKK Developed renowned cam-type high-speed synchronous tool changer with stable tool-changing performance and exceptional durability.
