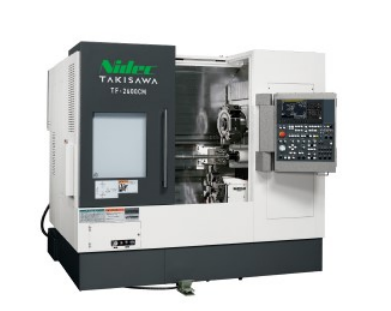

TF-2600 Model
Company: Takisawa Machine Tool Co.， Ltd
High-rigidity shaft-type machine tools, significantly reducing cutting time from flange processing to shaft processing and offering excellent chip removal performance.
Robust wide-range motor10-inch specification) / high-rigidity rectangular guide rail / vertical bed structure
NC Servo Tailstock: Travel 580mm / Sleeve Tapered Hole 8" Specification, MT.4, 10" Specification: MT.5 / Optional NC Servo Centering Fixture: Travel 720mm
Product Data
Main Machine Specifications
(Steering) | |||||
Collet Size | inch | 8 | 8 | 10 | |
Dota-style | 6 Stationary Tower | 8-Station Knife Tower | 6-Station Tower | 8-Station Tower | |
Large diameter turning | millimeters | φ260 | φ260 | ||
Z-axis turning length | millimeters | 750 | 650 | ||
Spindle Speed | min-1 | 3200 [OP. 5000] | 2500 [OP. 3000] | ||
Rotary Tool Speed | min-1 | - | - | ||
Rapid movement speed | Rice/minute | X ： 20 / Z ： 30 / A ： 20 / R ： 30 | X ： 20 / Z ： 30 / A ： 20 / R ： 30 | ||
Spindle Motor | kW | 11/15 | 15/11 (wide range) | ||
Rotary Tool Motor | kW | - | - | ||
Machine Height | millimeters | 2150 | 2150 | ||
Required Land Area | millimeters | $2,400 x 2,080 USD | $2,400 x 2,080 USD | ||
Machine Weight | pounds | 6100 | 6100 | ||
Turning and Milling | |||
Chuck Size | inches | 8 | 10 |
Dota-style | Upper: Rotational 8-Station Knife Tower (Full Handle Type) | ||
Large diameter turning | millimeters | φ260 (Bottom) | φ260 (bottom) |
Z-axis turning length | millimeters | $750 (Lower) | $650 (Lower) |
Spindle Speed | min-1 | 3200 [OP. 5000] | 2500 [OP. 3000] |
Rotary Tool Speed | min-1 | 6000 | 6000 |
Rapid movement speed | Rice/minute | X ： 20 / Z ： 30 / A ： 20 / R ： 30 | X ： 20 / Z ： 30 / A ： 20 / R ： 30 |
Spindle Motor | kW | 11/15 | 11/15 (wide range) |
Rotary Tool Motor | kilowatt | 2.2 | 2.2 |
Machine Height | millimeters | 2150 | 2150 |
Required Land Area | millimeters | $2,400 x 2,080 USD | $2400 x 2080 USD |
Machine Weight | pounds | 6100 | 6100 |
Loader Target Workpiece (Optional) | |||
Collet Size | inches | 8 | 10 |
Outer Diameter | millimeters | φ70 | φ70 |
Length | millimeters | 750 | 650 |
Weight | pounds | 10 | 10 |
