Mobile scissor lift

Product Features:

1. The lifting mechanism is made of high-strength manganese steel rectangular tube.

2. Equipped with an overload hydraulic safety protection system featuring a lift platform.

3. Equipped with a safety anti-fall device to prevent pipeline bursting.

4. Equipped with an emergency descent valve for manual descent during power failure.

5. Optional telescopic desk top for expanded high-altitude operation range.

6. Optional with inflatable or solid tires.

7. Optional manual hydraulic pump for lifting power.

8. Optional AC two-phase or three-phase power for power supply.

9. Optional with DC battery or diesel engine as power source.

Maintenance Tip:

After approximately 2 months of equipment use (based on actual usage frequency), lubricant should be applied to the rotating parts once.

2. Conduct a monthly inspection of the pinion shaft operating condition. If loose pins or screws are found, they must be tightened immediately to prevent accidents caused by pinion shaft or screw detachment.

3. Hydraulic oil should be kept clean and replaced every 6 months.

Always raise the safety prop when performing maintenance, repair, and cleaning on the hydraulic lift.

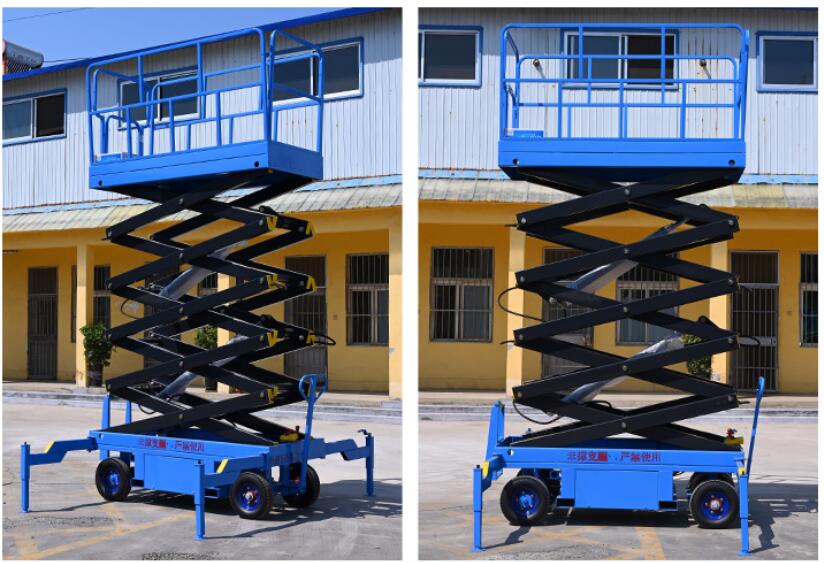

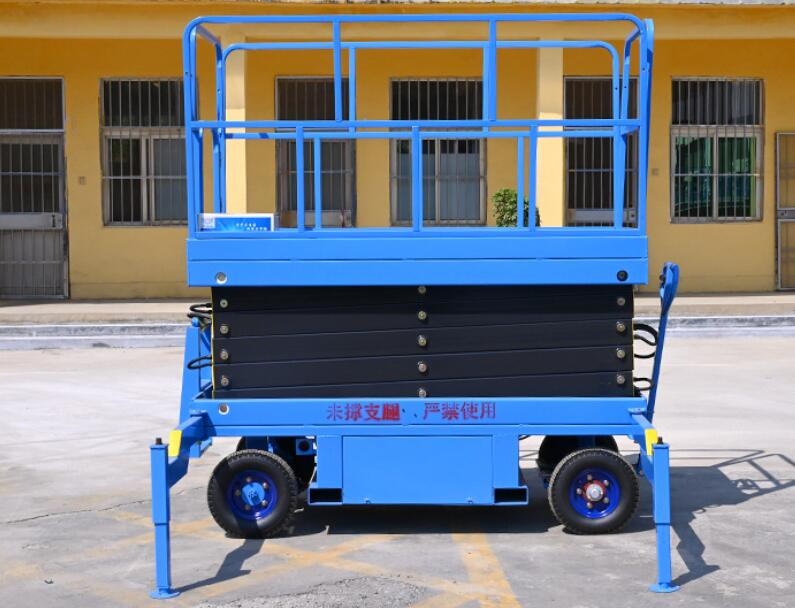

Product photos: Authentic shots
