I. Product Overview:

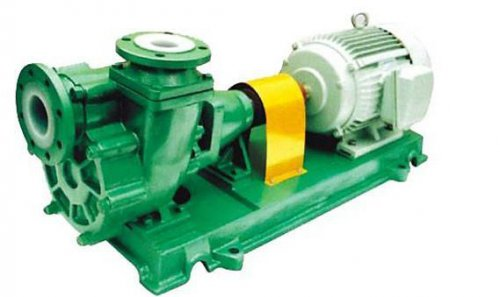

The FZB type fluoroplastic self-priming chemical pump is manufactured in accordance with international standards and combines the design and technology of non-metallic pumps. The pump body is lined with fluoroplastic on a metallic shell, with all flowing parts made of fluoroplastic alloy. The pump cover and impeller are all formed by sinter pressing a metallic insert encased in fluoroplastic. The shaft seal features an externally mounted advanced bellows mechanical seal. The static ring is made of 99.9% alumina ceramic (or silicon nitride), while the dynamic ring is filled with Teflon, offering excellent corrosion and wear resistance. Both the pump's inlet and outlet are reinforced with cast steel, enhancing its pressure resistance. Actual usage shows that this pump boasts advantages such as corrosion and wear resistance, high-temperature resistance, non-aging, high mechanical strength, smooth operation, advanced and reasonable structure, strict and reliable sealing performance, easy disassembly and maintenance, and long service life.

The FZB type fluoroplastic self-priming chemical pump stands out for its self-priming feature, capable of pumping liquids below the pump's installation level. It boasts stable performance and simple operation. After filling the pump for the first time, subsequent uses require no refilling; simply start the pump. The self-priming height can be determined within 2 to 4 meters based on the medium's density, making it the ideal alternative to bulky submersible pumps.


II. Product Application:


The FZB type fluoroplastic self-priming chemical pump features all-pass components made of fluoroplastic and has self-priming capabilities. Thus, the applications of the FZB fluoroplastic self-priming pump are extremely versatile, including pumping corrosive liquids from underground tanks to their destination, transferring acids or alkalis from tanks without outlets at the bottom to the target location, or for circulation between multiple acid tanks, or for acid unloading, etc.

The FZB type fluoroplastic self-priming chemical pump, with its humanized design principles and exceptional performance, has become an indispensable pump equipment for an increasing number of users. This product is widely applicable in industries such as chemicals, pesticides, acid and alkali production, papermaking, acid pickling processes, and electronics.


III. Technical Specifications:


FZB Type Fluoroplastic Self-Priming Chemical Pump

Flow rate: 3.6 to 50 m³/h

Flow Head: 18～45m

RPM: 2900 r/min

Power: 2.2-15KW

Import Diameter: 25-80mm

Applicable Temperature: -20℃ to 120℃.


4. Model Significance:


FZB Type Fluoroplastic Self-Priming Chemical Pump

For example: 50FZB-30L

50 - Inlet Diameter (mm)

F-Overcurrent component is Fluoroplastic

Z- Self-priming capability

Single Stage Single Suction Overhung Centrifugal Pump

30 - Head (m)

L-long arm connection
