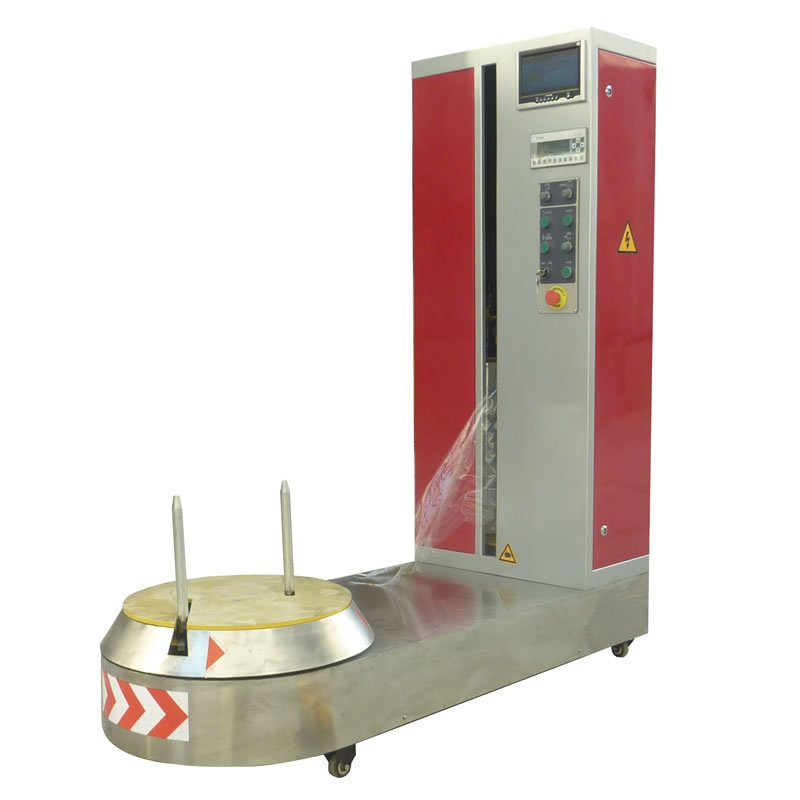

JCP600F-LLuggage packing machine

u Technical Specifications:

¶ Turntable Diameter    500mm

¶ Overall Height: 1750mm

¶ Turntable Load Capacity: 100kg

¶ Overall Weight: 240 kg

¶ Total Power Output0.75kw

¶ Power Voltage: 220V

¶ Rpm Range: 0~36RPM (Variable Frequency Drive available)

¶ Applicable Film: 15~35 pre-stretched shrink wrap film (25μ recommended)

¶ Machine Dimensions: 1650*600*1800mm（L*W*H）

¶ Maximum luggage size: 800mm x 450mm x 1000mm (L x W x H)

¶ Maximum packaging weight: 100 kg

u Key Performance Traits

Control System

¶ PLCProgrammable control; variable winding layers and counts

¶ Photoelectric switch, automatic sensing of cargo height

¶ Fully automatic operation available, with manual override (can be set on the control panel), allowing for wrapping irregular luggage manually.

¶ Number of wraps, film tension can be controlled on the panel .

¶ The "Top Time Setting" feature ensures safe film change, quick and convenient, and allows for either single upward or single downward movement.

¶ Special rubber guiding rods, minimize damage to wrapping film, ensuring smooth, even film output.

¶ Adjustable speed for rising, falling, and film feeding.

Film System

¶ Film Frame Power Pre-stretching Mechanism, Pre-stretching up to200%。

¶ The membrane frame features electronic constant tension control, allowing adjustable speeds for both rising and descending, as well as adjustable film feeding speed.

¶ Chain control, smooth and reliable, gradual start and stop .

¶ Top and bottom winding counts can be adjusted separately.

¶ The film frame can easily adjust its up and down position to accommodate taller luggage (over 500mm).

¶ Film system actuator, one pull and go

¶ DC Speed Control System for Film Tension Control

Memory Function

The machine's display screen shows the number of packages completed.

Pillar section

¶ Single chain drive, smooth and reliable

¶ Maximum packaging height available for customization

Qualification Certification

¶ Mechanical conformsCEStandardized and certified by authorized bodies

Primary electrical configuration

¶ PLC                                       Programmable Logic Controller

¶ Text ScreenYonghong

¶ Relay                             Omron

¶ Variable Frequency Drives (2 units) - Yung Hua

¶ NEMA Close Limit Switch - Omron

¶ Motorized Lift Platform for Film Frame

¶ Send Film Motor - Boshan

¶ Silicon Controlled Rectifier (SCR)FOTEK

¶ Photoelectric switchPanasonic

u Mechanical Components

The frame is made of stainless steel, and the columns are...1.5mm Made of steel with baked paint.

u Installation:

Equipment installation location should be on level ground.

No other equipment is permitted above the installation location of the equipment.

The equipment must have a separate power supply; it is strictly prohibited to share power with other equipment.
