One, Brief Introduction:

Brand: Agilent / An捷伦

Product Model: E8257D

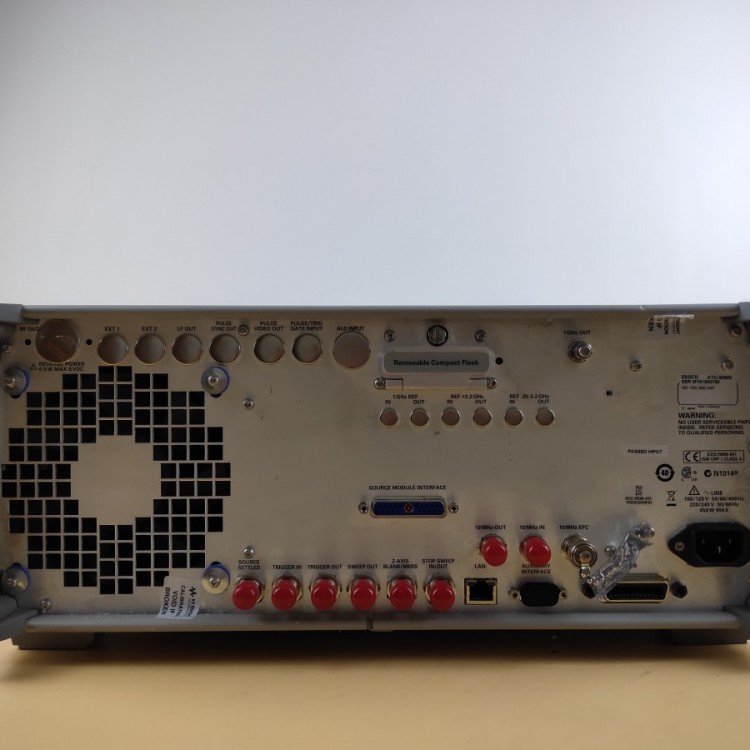

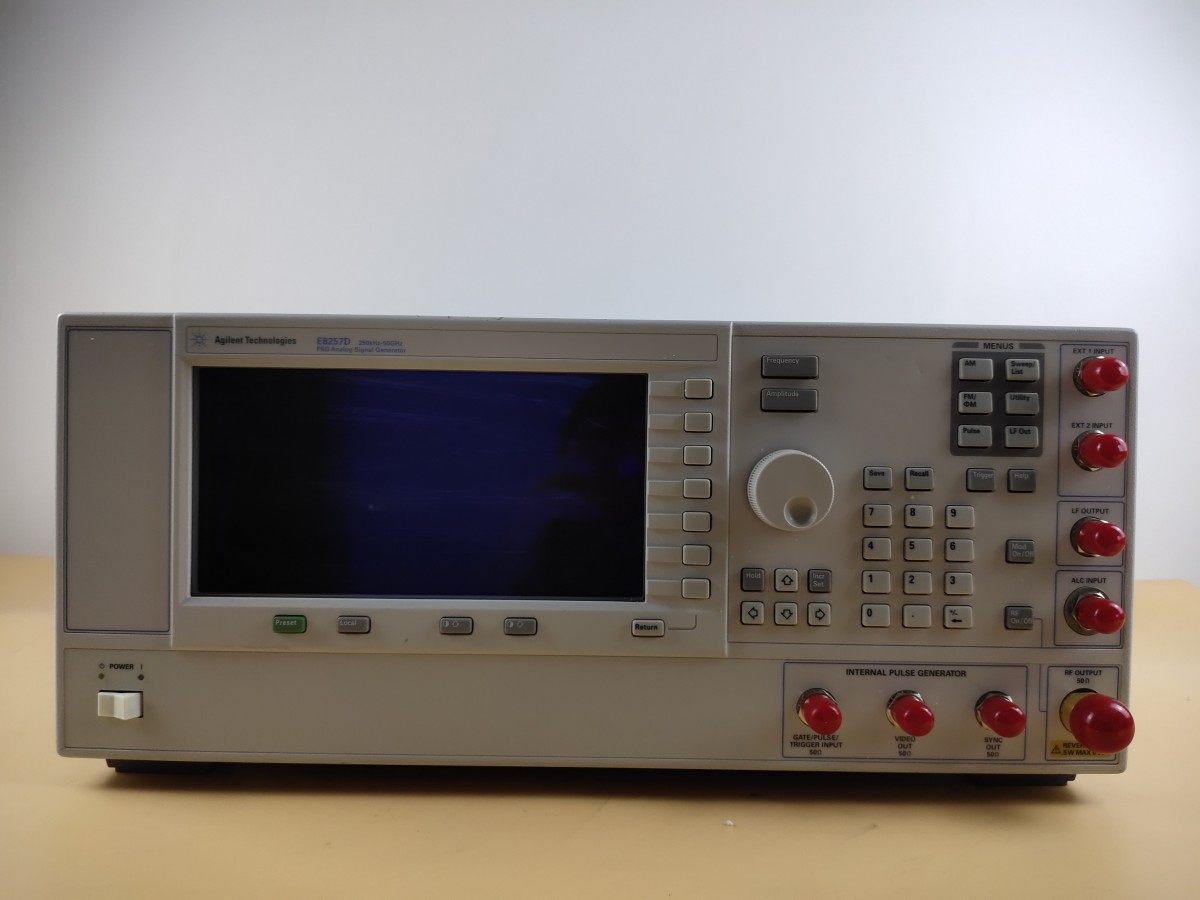

Product Information: E8257D PSG Analog Signal Generator

Product Specifications: E8257D 250 kHz to 20GHz

E8257D 250 kHz to 31.8 GHz

E8257D 250 kHz to 40 GHz

E8257D 250 kHz to 50 GHz

E8257D 250 kHz to 67 GHz

E8257D 1 0 kHz to 20 GHz

II. Main Features and Technical Specifications

Signal Characteristics

• 250 kHz to 20, 31.8, 40, 50, or 67 GHz, operating up to 70 GHz (0.001 Hz resolution), 10 MHz to 20 GHz (only for option 521)

• Scalable up to 75, 90, 110, 140, 170, 220, 325, or 500 GHz – Millimeter Wave Module

• Output power: +26 dBm @ 20 GHz, +17 dBm @ 40 GHz, +14 dBm @ 67 GHz; Option 521 offers +30 dBm @ 6 GHz and above (typical value)

• Industry - SSB Phase Noise - Option UNX

Mixed

• AM, FM, ØM, Pulse, and Scan

• 8 ns rise/fall time and 20 ns pulse width (typical)

• Two built-in function generators: sine wave, square wave, triangular wave, ramp wave, and noise

Scan

• Stepped scanning, list scanning, and sawtooth scanning (frequency and power)

• Utilize PSA series spectrum analyzers to control signal sources PSA series spectrum analyzers

• Compatible with Agilent 8757D scalar network analyzer code

Automatic and Communication Interface

•10baSet LAN and GPIB

• SCPI and IVI-COM drivers

• Backward compatible with all PSG signal generators
