Thermogravimetric analysis (TG, TGA) involves observing the change in sample mass with temperature or time during heating, isothermal, or cooling processes, with the aim of studying the thermal stability and composition of materials. It is widely used in research and development, process optimization, and quality control in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials, and composite materials.
The primary characteristics of thermal gravimetric analysis are its strong quantitative nature and its ability to accurately measure the change in mass and the rate of change of a substance. Based on this feature, it can be said that any mass change that occurs in a substance upon heating can be studied using thermal gravimetric analysis. Thermal gravimetric analysis can be used to detect both physical and chemical changes and processes. It is evident that these physical and chemical changes involve mass changes, such as sublimation, vaporization, adsorption, desorption, absorption, and gas-solid reactions.

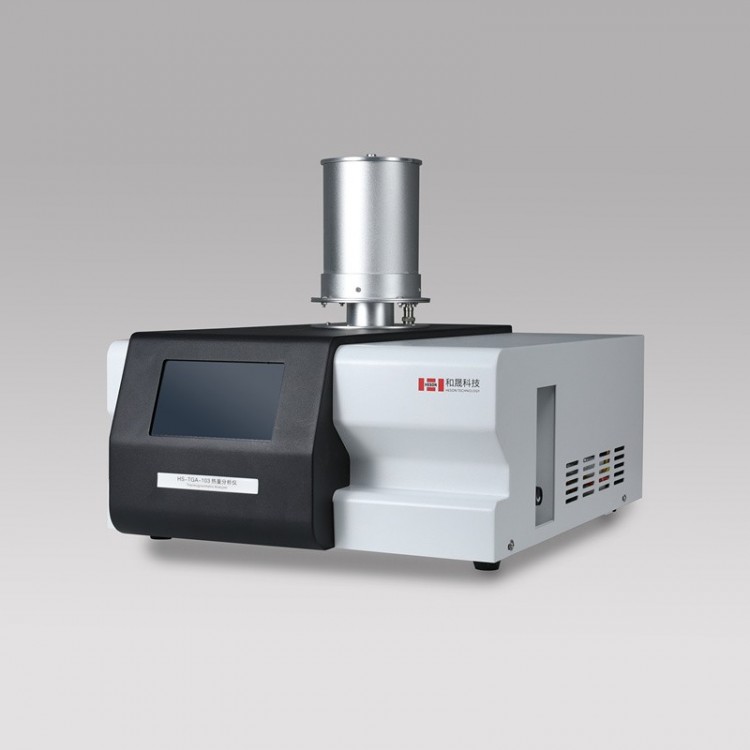

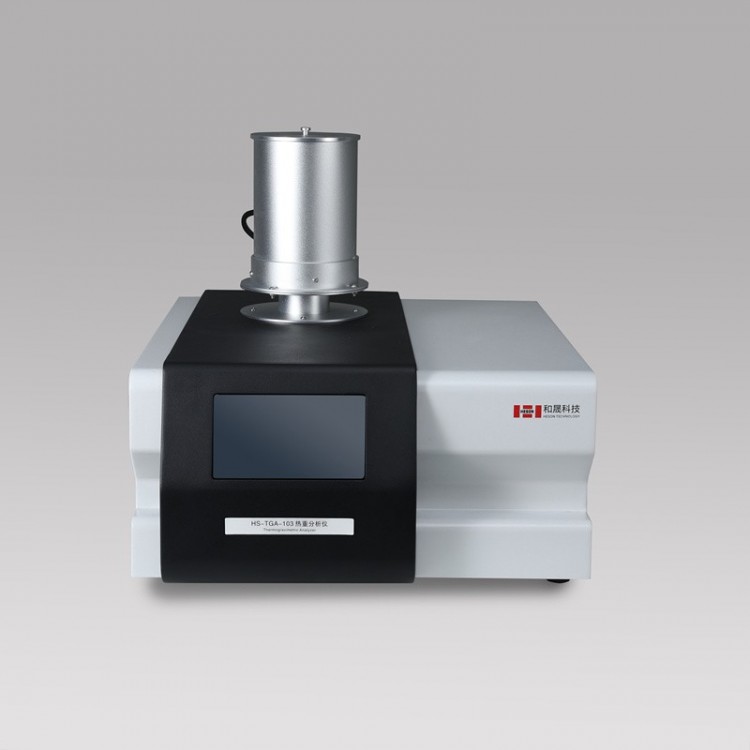

Product Features
1. The furnace heating is achieved with a double row winding of precious metal nickel-chromium alloy wire, reducing interference and offering greater resistance to high temperatures.
2. Tray sensor, crafted from high-quality noble metal nickel-chromium alloy, boasts features such as high-temperature resistance, anti-oxidation, and corrosion resistance.
3. Power supply, cooling circuit, and main unit are separated to minimize the impact of heat and vibration on the micro-thermal balance.
4. The top-opening lid structure is user-friendly. It's difficult to lift the furnace body to place samples, which may easily damage the sample rod.
5. The main unit features a water-based constant-temperature device to isolate the heat impact from the heating furnace on the cabinet and micro-thermo balance.
6. Features a 32-bit ARM Cortex-M3 processor core, offering faster sampling and processing speeds.
7. The 24-bit four-channel ADC collects DSC signals, TG signals, and temperature T signals.
8. Available for body replacement as per customer request.
Technical Specifications:
Applications from Selected Universities and Enterprises
| 1、 | Research on Absorbent Properties of Acrylic Resin Modified with Carbon Nanotubes | Shanxi Jinhuan Keyuan Environmental Resources Technology Co., Ltd. |
| 2、 | Study on Volatility Characteristics of Pb and As during the Co-treatment Process of Sintering Machine with Hazardous Waste | Hebei Iron & Steel Group |
| 3、 | Research on the Preparation, Structure, and Properties of Nylon 612 | China Petroleum & Chemical Corporation, Dalian Petrochemical Research Institute |
| 4、 | Investigating the Factors Affecting the Critical Cracking Thickness of PTFE Emulsion Spray Products | Zhejiang Juhua Co., Ltd. |
| 5、 | SEBS, PP, and PLA blending modification and application in smoke temperature reduction for non-combustible heating | Hubei Zhongyan Cigarette Materials Factory |
| 6、 | Research on High-Temperature-Resistant Organic Silicon Coatings for Titanium Alloys | Institute of Mechanical Science Research |
| 7、 | Nickel-coated fly ash hollow microspheres/poly pyrrole composite preparation and its microwave absorption property study | Donghua University of Technology |
| 8、 | Preparation and Physical Property Research of Lanthanum Praseodymium Calcium Manganese Oxide Nanofibers and Graphene | Qingdao University |
| 9、 | Research and Preparation of Mid-Temperature Reversible Thermochromic Fluorocarbon Coatings | Harbin University of Science and Technology |
| 10、 | Manufacturing, Characterization, and Property Study of Fly Ash-Based Granular Phosphate Removal Material | China University of Mining and Technology |
| 11、 | Preparation of CuO/Cellulose and Study on the Degradation of Phenol Wastewater by Persulfate | Xi Hua University |
| 12、 | Study on the Extraction, Derivatization, and Packaging Application of Qinpi Amino Acid | Shaanxi University of Science & Technology |
| 13、 | 1076 t/h Subcritical Circulating Fluidized Bed Boiler Mixed Coal Combustion Numerical Simulation Research | Jilin University |
| 14、 | Study on the hydrothermal preparation of MoS2 and its effect on the performance of resistive random-access memory | Xi'an University of Technology |
| 15、 | Research on the polymerization process of intercalated oligomeric polyaniline and its applications in composite materials | Shandong University |
| 16、 | Preparation of Graphene-Based Composite Materials and Research on the Resource Utilization of Electroplating Heavy Metal Waste Water | Hefei University of Technology |
| 17、 | Research on the thermal oxidative aging characteristics and mechanisms of microwave asphalt modifier powder | Lanzhou Jiaotong University |
| 18、 | Amorphous semiconductor thin film target materials for Tellurium (Te) compounds preparation | Beijing General Research Institute of Nonferrous Metals, Institute of Rare Metal Metallurgy Materials |
| 19、 | Research on Flame Retardant Properties of PP-Based Composite Materials | Lanzhou University of Technology |
| 20、 | Study on the Explosive Characteristics of Coal Powder in Coal Milling Process | Daton Northeast Electric Power Test Research Institute Co., Ltd. |
| 21、 | Synthesis of Novel Cationic Polyacrylamide via Aqueous Solution Method and Characterization Study | Jiangxi Science & Technology Normal University |
| 22、 | Propyl dimethoxysilicate cyclic phosphonate synthesis and application | Suzhou University of Science and Technology |
| 23、 | Yellow Mealworm Exuvia Preparation of Shell Oligosaccharides and Their Applications | Chongqing Technology and Business University |
| 24、 | Research on High-Temperature Properties of Nylons Modified Cold Box Resin | Ningxia Shared Chemical Co., Ltd. |
| 25、 | The effects of electron beam irradiation on polydopamine and polydopamine/gold nanoparticle composite films | Beijing Jiaotong University |
| 26、 | Research on Selective Laser Sintering of Polystyrene/Glass Fiber Composite Materials and Molding Technology | Xi'an University of Science and Technology |
| 27、 | Synthesis of rapeseed straw-based polyols and its research on polyurethane rigid foam systems | Shanghai University of Applied Sciences |
| 28、 | Research on ligand exchange of alloy quantum dots for display applications | Beijing Institute of Technology |
| 29、 | Chlorinated Acrylic Resin Application in PVC Hard Products | Xinjiang Tianye (Group) Co., Ltd. |
