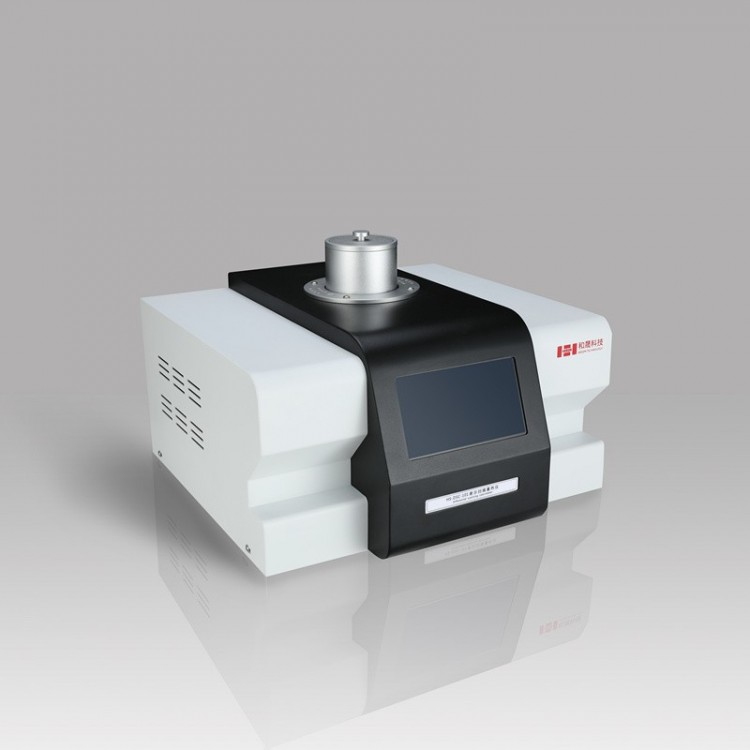

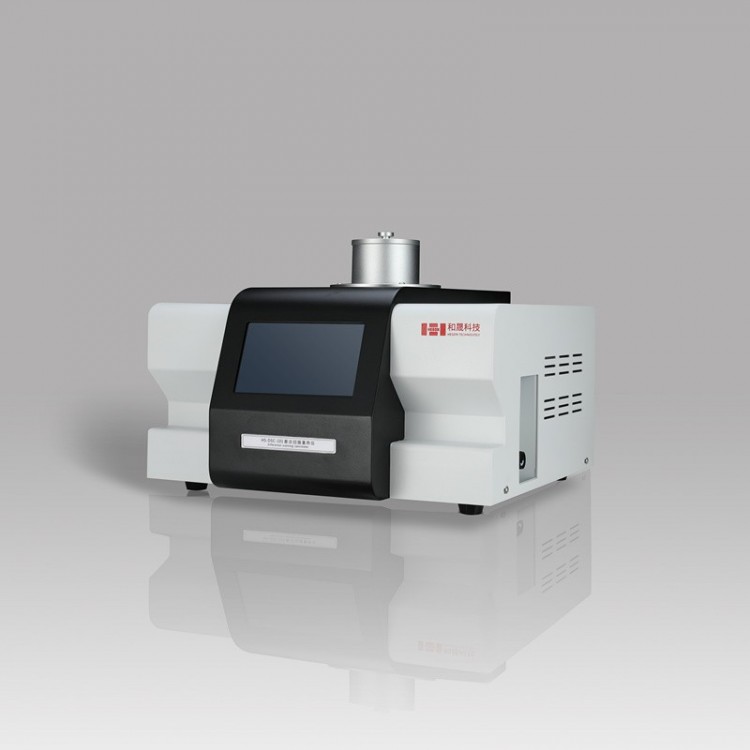

Product Introduction:
Differential Scanning Calorimeter (DSC) is a thermal analysis instrument that measures the relationship between the heat flow difference and temperature parameters between the reference and sample ends. It is primarily used to measure various characteristic parameters during the heating or cooling process of substances, such as glass transition temperature (Tg), oxidation induction time (OIT), melting temperature, crystallization temperature, specific heat capacity, and enthalpy.
Key Features:
1. A brand new furnace body structure, ensuring baseline stability in resolution and definition.
2. Digital gas mass flow meter, controls purge gas flow, data recorded directly in the database
3. The instrument can be controlled bidirectionally (host control, software control), with a user-friendly interface and simple operation.
Technical Specifications:
| Model | HS-DSC-101 |
| Display Method | 24-bit color, 7-inch LCD touch screen display |
| DSC Range | 0～±600mW |
| Temperature Range | Room temperature to 600°C |
| Temperature Resolution | 0.01℃ |
| Temperature Fluctuations | ±0.1℃ |
| Rise Rate | 0.1～100℃/min |
| Temperature Repeatability | ±0.1℃ |
| Temperature Accuracy | ±0.1℃ |
| DSC Resolution | 0.001mW |
| DSC Resolution | 0.001mW |
| Program Control | Achieves four-zone temperature control with constant temperature, special parameters available for customization. |
| Curved scan | Heat-up Scan & Cool-down Scan |
| Atmosphere Control Device | Dual-channel Automatic Switching (Instrument Automatic Switching) |
| Gas Flow | 0-300 mL/min (Other ranges available upon request) |
| Gas Pressure | Gas Pressure |
| Data Interface | Standard USB Interface |
| Parameter Standards | Equipped with standard materials (Indium, Tin, Lead), users can self-correct the temperature. |
| Instrument thermocouple | Three sets of thermocouples: one for testing the temperature of the samples, one for testing the internal environment temperature of the instrument, and one for the overheating self-check sensor of the furnace body. |
| Work power supply | AC220V/50Hz |
Hesheng Differential Scanning Calorimeter in Application Examples at Some University Research Institutes
| 1、 | Study on the Preparation Technology of Crosslinked Hydroxypropyl Starch | Jilin University |
| 2、 | Circularly polarized light-induced asymmetric polymerization reaction for the preparation of helical polyacetylene | University of Science and Technology of China |
| 3、 | Analysis of Liquid Polymerization Techniques and Their Impact on Polymer Properties | Wuhan University of Technology |
| 4、 | Study on the Atomization Characteristics of ADN-based Propulsion Agent and Simulation of the Operation Process of ADN-based Thrusters | Beijing Jiaotong University |
| 5、 | Research on thermal-electrical characteristics and module thermal management technology of 18650 power cells | Guangdong University of Technology |
| 6、 | Vacuum-assisted resin infusion process for the penetration and defect of wind turbine blade resin | Qiqihar University |
| 7、 | Controllability of hot air solidification fiber net bead structure and its crystallization kinetics | Donghua University |
| 8、 | Study on the Effects of Oxidation-Reduction and pH Dual-Responsive Mesoporous Silica-Taxol Nanodelivery System on A549 Cells | Jinzhou Medical University |
| 9、 | Preparation of polymer electrolytes with enhanced ionic conductivity and their application in lithium-oxygen batteries | Chengdu University of Technology |
| 10、 | Study on the Preparation Process and Physical Properties of Purple Potato Resistant Starch | Jilin Academy of Agricultural Sciences |
| 11、 | Graphene Oxide/Polyurea Composite Preparation and Property Study | Jinan University |
| 12、 | Research on the Application and Physiological Functions of Soybean Oil-Based Diacylglycerols as Edible Oils | South China University of Technology |
| 13、 | AZ31B Magnesium Alloy/5052 Aluminum Alloy Dissimilar Material Friction Stir Welding Microstructure and Property Study | Hubei University of Technology |
| 14、 | Research on high-temperature-resistant organic silicone coatings for titanium alloys | Institute of Mechanical Science Research |
| 15、 | Preparation and Structural Dimensional Controllability Research of Polymer Composite Array Materials | West China Normal University |
| 16、 | Development of high-toughness powder coatings for household appliances | China Electrical Research Institute Co., Ltd. |
| 17、 | The effects of different extraction temperatures on the physicochemical properties of white mullet skin gelatin | Hefei University of Technology |
| 18、 | Preparation and Application Research of Porous Polymer Templates with Controllable Structure/Size | Southwest University of Science and Technology |
| 19、 | The effect of surface modification on the bonding properties of injection molded NdFeB magnets | Mineral Metallurgy Technology Group Co., Ltd. |
| 20、 | Research on Long Basalt Fiber-Reinforced Flame Retardant Polypropylene | Zhejiang University |
| 21、 | Preparation of PP/CaCO3 composite materials and research on their use in reinforcing the flexural strength of concrete | Inner Mongolia Vocational Technical College of Transportation |
| 22、 | The effects of extrusion and时效 treatment on the microstructure and mechanical properties of architectural aluminum profiles | Hubei Vocational Technical College of Light Industry |
| 23、 | Research on the Application of Natural Extracts in Antioxidant Modification of Polyolefins | Shandong University of Science and Technology |
Customers using our differential scanning calorimeter, with some parts being utilized in their SCI papers
1、Natural compounds from Punica granatum peel as multiple stabilizers for polyethylene
2、Electro-Thermochromic Luminescent Fibers Controlled by Self-Crystallinity Phase Change for Advanced Smart Textiles
3、Carbon fiber/polyetherketoneketone composites. Part I: An ideal and uniform composition via solution‐based processing
4、Isolation and characterization of acid-soluble collagen and pepsin-soluble collagen from the skin of hybrid sturgeon
5、Physicochemical properties of soybean-based diacylglycerol before and after dry fractionation.
6、Water-in-oil emulsions enriched with alpha-linolenic acid in diacylglycerol form: Stability, formation mechanism and in vitro digestion analysis
7、Effects of treatment methods on the formation of resistant starch in purple sweet potato
8、High Lithium Ion Flux of Integrated Organic Electrode/Solid Polymer Electrolyte from In Situ Polymerization
9、Preheat Compression Molding for Polyetherketoneketone: Effect of Molecular Mobility
10、Characterization and experimental investigation of aluminum nitride-based composite phase change materials for battery thermal management
11、Experimental investigation of the flame retardant and form-stable composite phase change materials for a power battery thermal management system
12、Experimental investigation on immersion liquid cooled battery thermal management system with phase change epoxy sealant
13、Experimental Investigation on Thermal Management of Electric Vehicle Battery Module with Paraffin/Expanded Graphite Composite Phase Change Material
