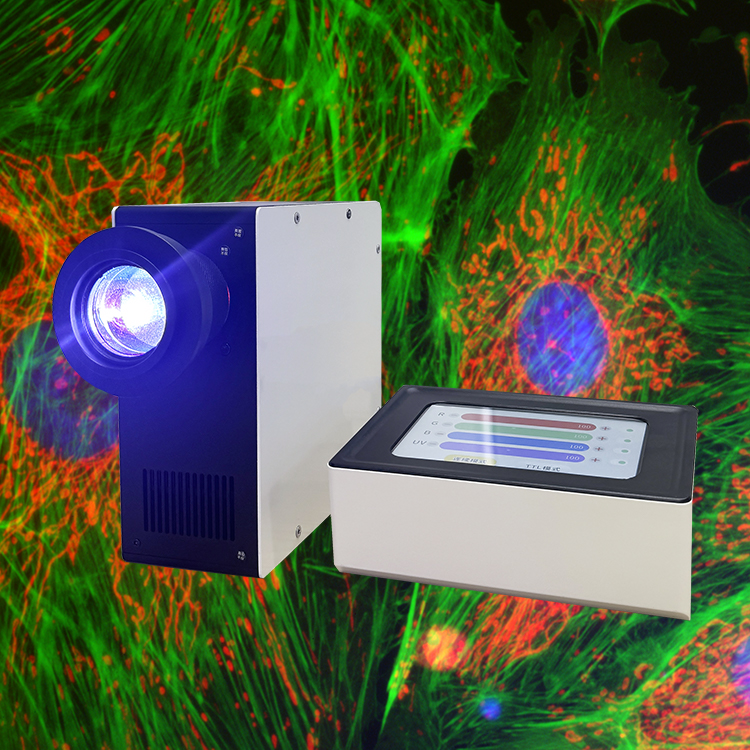

High-power multi-spectral LED fluorescence light sourceMH-400-LED
Product Advantages:
2. Utilizes a direct-connection adapter to minimize fiber loss and ensure high energy efficiency output. Narrow band LED, with high compatibility with commonly used fluorescent dyes in the market, delivering more concentrated excitation energy.
2 Independent far-red light correction, resolving the issue of weak far-red light excitation energy. Stronger than imported brand fluorescence.
2 High cost-performance ratio, priced similarly to some long-life halogen and mercury lamps, but without the need to replace bulbs, less maintenance required, and overall lower costs.
2 Full-wavelength excitation, featuring an integrated 330-730 nm full-spectrum LED light source, catering to all your daily experimental requirements.
2 Ready-to-use, low heat generation and power consumption, quick switching, fast mode switching, easy to trigger control, easy for software control.
2 Compatible with mainstream inverted and upright fluorescence microscopes on the market, such as: Zeiss, Leica, Nikon, Olympus.
Technical Specifications:
| Name
|
Technical Specifications
|
|
Wavelength Parameters
|
Available in wavelength ranges from 330nm to 730nm, standard options include 330-385nm/450-480nm/510-600nm/610-660nm.
|
|
Support for Dyes
|
DAPI、CFP、Aqua、FITC、TRITC、TxRed、Cy5 Alexa Fluor 350、405、430、488、514 Alexa Fluor 532、546、555、568、594 Alexa Fluor 610、633、647、660、680
|
|
Luminaire lifespan
|
Total illumination time ≥ 20,000 hours.
|
|
Brightness Adjustment
|
Continuous adjustable from zero.
|
|
Response Time
|
0-second response wait, no need for preheating, ready to use immediately.
|
|
Electronic shutter
|
Supports electronic shutter, supports monochromatic light channel electronic shutter.
|
|
Brightness Memory
|
Brightness memory function supported.
|
|
Dimming resolution
|
Minimum brightness resolution ≤ 1%, adjustable accuracy of 10% and optional 1%.
|
|
Pre-set Brightness
|
Supports 5 preset brightness modes.
|
|
External Trigger
|
Supports external trigger and PC control.
|
|
Input Voltage
|
DC 12V Power Consumption ≤ 50W.
|
|
Dimensions
|
L:178mm x H:165 mm x W:70mm。
|
|
Weight
|
≤1.9Kg
|
|
Light Source Control Box
|
3.5-inch color LCD screen, displaying current wavelength and brightness values
|
|
Light Intensity Control
|
The digital coding knob is designed to conform to human operational habits.
|
|
External Trigger Software (Optional)
|
Supports real-time brightness control, customizable on/off timing, adjustable flash frequency, immediate on/off capability, and switching between center wavelengths with either instant or programmed transitions.
|
