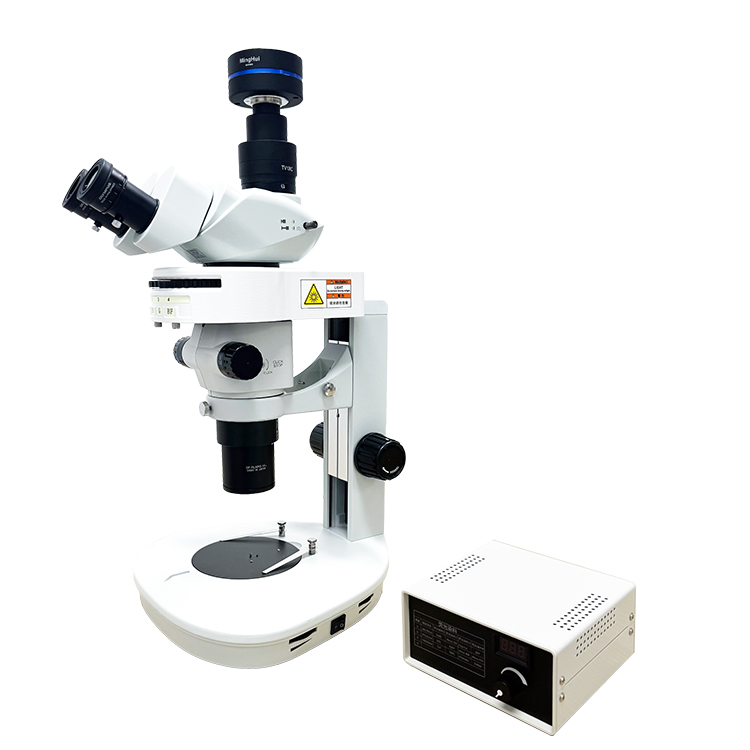

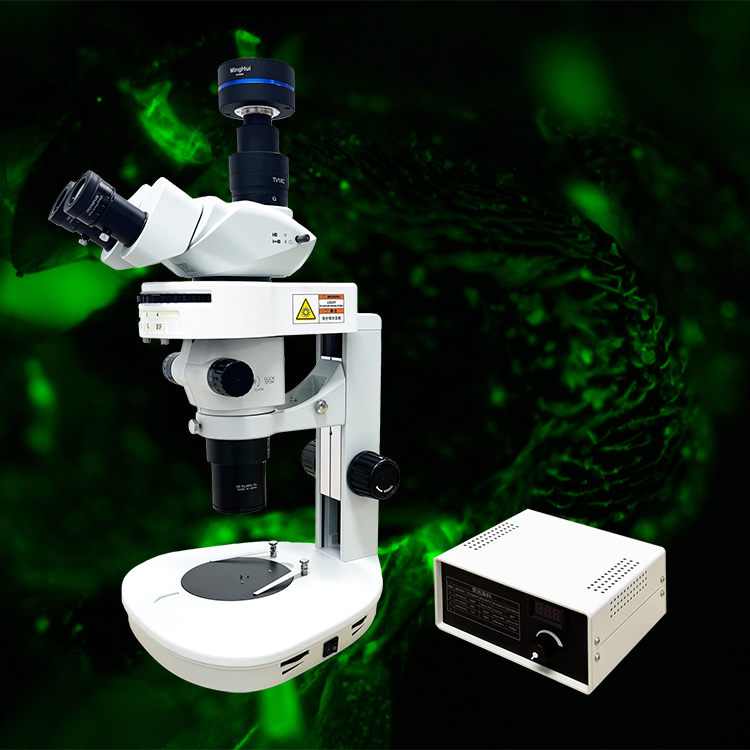

Stereo Fluorescence Microscope MHZF700
The MHZF700 series stereoscopic fluorescence microscope features an infinite-focal optical system and a user-friendly design, enhancing efficiency during daily applications. It incorporates an LED fluorescence dual-path illumination design, offering superior performance. It is widely used in research fields such as animal tissue imaging, nematode identification and screening, fruit fly classification, selection of fluorescent larvae and anesthetized adults, as well as the identification and embryo observation of zebrafish and mice.
Stereo Fluorescence Microscope MHZF700 Specifications Configuration:
Optical System
| Infinite Far Field Optical System
| ||
Magnification ratio
| 7:1 (0.8x to 5.6x)
| ||
Zoom lens
| · Zoom Drive: Horizontal Knob System ·Point stop positioning mechanism at each magnification level: Switchable · Magnification scales: 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6 ·Objective lens mounting: Threaded mounting, lead-free
| ||
Objective lens
| Achromatic Doublet Objective DF PLAPO1x-4 0.1 81mm
| ||
Observation Tube
| · Pivot-type three-eye telescopic tube, 30-degree tilt, all observation tubes lead-free, interpupillary distance adjustment range 50-76mm, with eyepiece clamp button · Optic Selection: Eyepiece/Photographic Port = 100/0 or 0/100
| ||
Objective Lens
| · 10X Field Number (FN) 22 Lead-Free
| ||
Fluorescent Accessories
| Standard with 3 fluorescence channels, up to 4 channels configurable, rotary fluorescence switching, 12V3A power adapter, with additional fluorescence baffle.
| ||
Light Source
| Standard configuration includes 6 pieces of 10W high-power UBG LED light sources, with a lifespan of over 30,000 hours.
| ||
Common Fluorescence Channels
| Fluorescence Excitation Channel
| Parameters
| |
Ultraviolet Long Pass Filter
| EX:360/50nm;DM:400nm;EM:410nmLP
| ||
Blue Bandpass BA
| EX:475/35nm;DM:500nm;EM:530/50nm
| ||
Green Long Pass
| EX:530/40nm;DM:560nm;EM:575nmLP
| ||
Power Supply Box
| Brightness is continuously adjustable with digital intensity display, INPUT: DC12V
| ||
Camera Interface
| 1x Interface
| ||
Base
| Standard Transmission Base
| Frame Installation: 76mm diameter, tension adjustment with rotary knob, focusing distance of 120mm Loading Plate: Special-purpose glass plate, diameter 160mm; special-purpose blackboard with diameter 160mm Light Source: Transmission Lighting: LED, Reflection Lighting: LED, Average LED Lifespan: 10,000 hours, Input Power: 100-240V, 50/60Hz, 10W
| |
Optional accessories
| Objective lens
| Color Compensating Objective D FPLAPO 2x-4 0.2 33.5mm
| |
Fluorescent Channel
| UV Bandpass Filter
| EX:360/50nm;DM:400nm;EM:450/60nm
| |
Blue Long Tonic B
| EX:475/35nm;DM:500nm;EM:515nmLP
| ||
Green Band Pass
| EX:530/40nm;DM:560nm;EM:605/60nm
| ||
Yellow Bandpass Y
| EX:560/30nm;DM:590nm;EM:630/70nm
| ||
The fluorescence filter set can be optimized and adjusted according to the customer's actual needs. For specific details, please consult our company.
| |||
Camera Interface
| 0.5x Interface
| ||
Microscope Camera
| USB3.0
| MHC600、MHD600、MHD800、MHD1200、MHD2000、MHD2100、MHS500、MHS600、MHS900、MHS2100
| |
