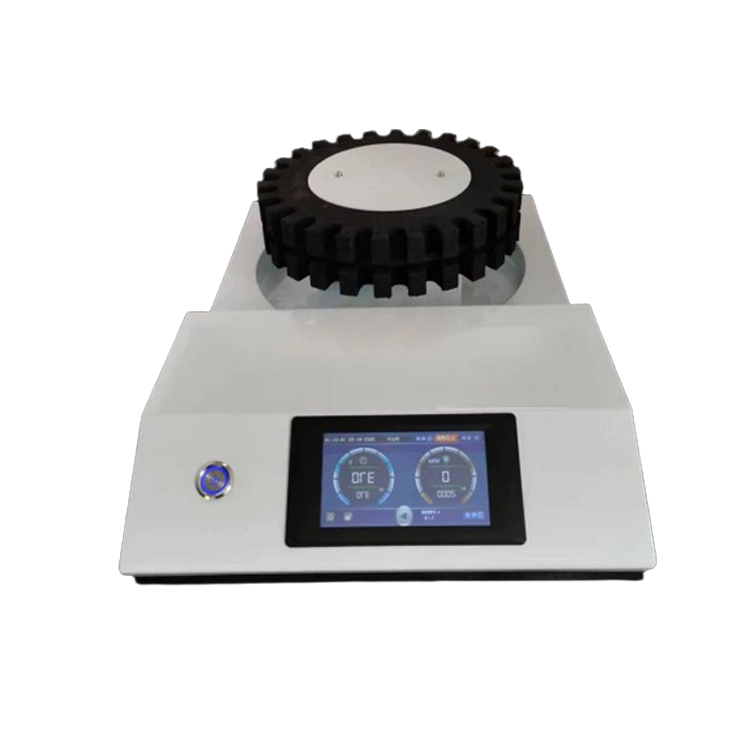

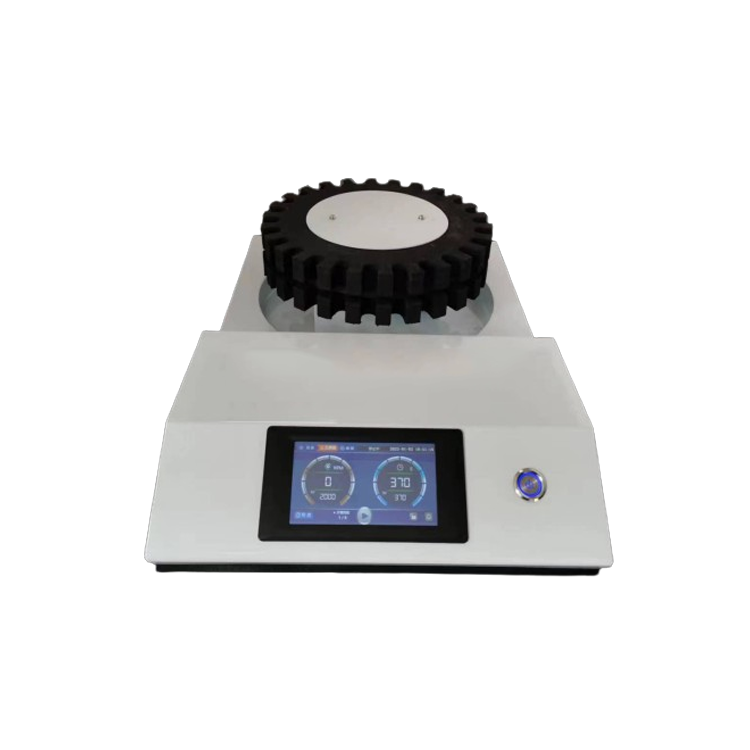

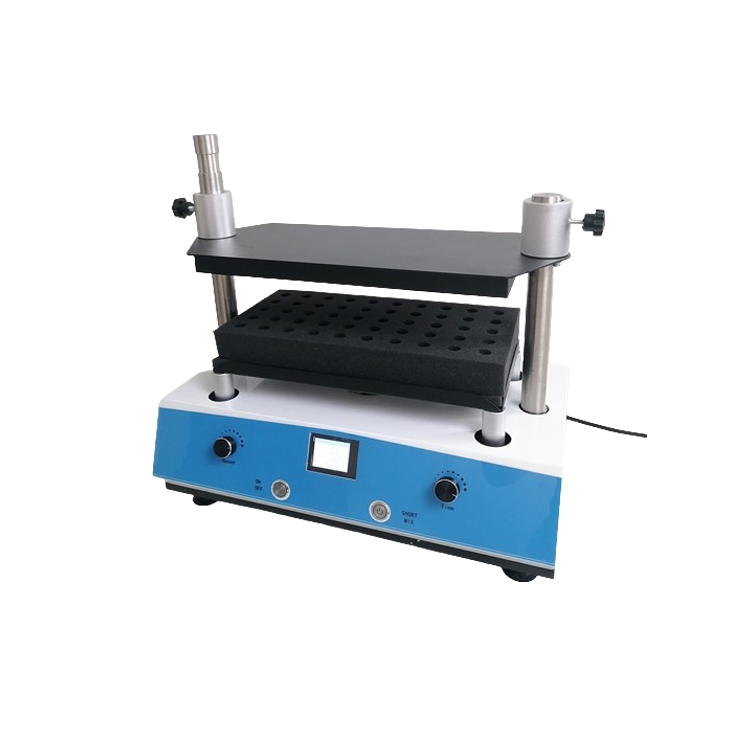

Multi-tube Turbulent Mixing Apparatus

Product Introduction

The Multi-Tube Turbulator is a laboratory instrument that ingeniously combines oscillation and vortex action, suitable for diverse vortex oscillation operations on multiple samples, making experiments more convenient and efficient. Traditional mixers often can only handle one test tube sample at a time, requiring manual switching and support, which is impractical for handling several or dozens of samples simultaneously. This greatly limits the experimental process.

The GH series multi-tube vortex mixer addresses these issues, enhancing efficiency and serving as an excellent assistant to laboratory technicians. It features a compact structure, attractive appearance, smooth operation, low noise, and a long service life. It can mix and process up to 50 samples at once. Various accessories are available for different tube specifications. The gentle start-up setting ensures safe and stable operation, along with high-precision digital speed control. Multiple foam tube racks are suitable for tubes of different diameters, offering convenient and flexible use.

Technical Specifications

40-tube rack, 40 tubes, 1.5mL/2.0mL microcentrifuge tubes, specialized

Adjustable speed range: 200-3000 rpm

Amplitude: 3mm, ensure each sample is thoroughly mixed, with an excellent vortex effect.

The control terminal features a high-definition color touchscreen, displaying real-time RPM and operating time.

Timing Range: 0-99h 59m / Always On

Operating Modes: Continuous, Single-Stroke, Pulsed

Sample Handling Quantity: 50

Pulse Time: adjustable from 10s to 59s

Control Accuracy: ±50 rpm (measured at 2500 rpm)
