I. Product Overview:

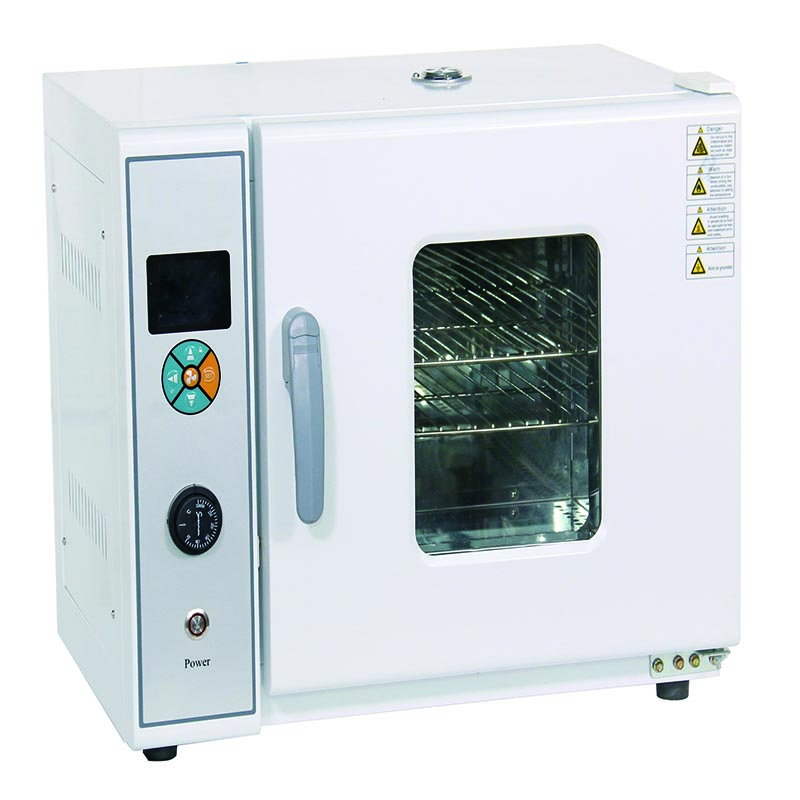

Electric hot-air oven is suitable for use in laboratories of industrial and mining enterprises, scientific research institutions, and other units for drying, baking, melting wax, and heat treatment.

II. Product Features:

The product casing is made by cold-rolled sheet forming and surface treated with a spraying process.

2. The workshop selects 304 mirror-polished stainless steel for processing and manufacturing.

3. Smart LCD temperature control gauge with features including timer, over-temperature alarm indicator, temperature deviation correction, self-tuning temperature control, automatic speed regulation of the fan, door control, and automatic heating shutdown upon door opening to effectively prevent overheating.

4. Thicker double-layer tempered glass observation window, easy to observe the changes inside the box.

5. Utilizes advanced synthetic silicone sealing strips for an aesthetically pleasing appearance and long-term operation at high temperatures, extending service life.

6. Optional features include over-temperature protector, timer, programmable control gauge, printer, 485 interface, USB storage, and SMS alarm functions.

7. The equipment is equipped with a fan speed regulator, allowing users to adjust the wind speed as needed or set to automatic wind speed.

8. High-precision microcomputer LCD temperature controller, reliable temperature control.

9. Quick: Rapid heating, forced convection, dry hot air directly passes through heated objects, resulting in significantly reduced drying and sterilization time.

10. Safety: Automatically shuts off at exceeding the restricted temperature, ensuring safety for personnel and equipment.

Hint: After the fan is turned off, there's a significant temperature fluctuation inside the room. Under no special circumstances should the fan be turned off.


ThreeTechnical Specifications Table

      Product Model

Parameters

GH-00BE

GH-10BE

GH-11BE

GH-12BE

GH-13BE

GH-13BEII

GH-14BE

Capacity

20L

45L

72L

125L

210L

245L

400L

Power Supply

220V  50HZ

Temperature Control Range

RT+10-300℃

Temperature Resolution

0.1℃

Temperature fluctuation

±1℃

Power

600W

1000W

1500W

2000W

3000W

3000W

4500W

Studio Size

(Length × Width × Height) mm

260×280×280

350×350×350

350×450×450

450×550×550

500×600×700

500×700×700

690×630×910

Dimensions

(Depth × Width × Height) mm

450×540×410

520×660×530

520×760×630

620×860×730

670×910×880

670×1010×880

855×930×1085

Packaging Dimensions

(Length × Width × Height) mm

500×590×485

570×710×600

565×805×705

675×900×800

720×970×950

720×1050×950

950×1010×1240

Net Weight/Gross Weight KG

28/33

35/41

45/51

63/73

77/92

80/96

118/167

Note: The above temperature and humidity parameters were measured at an unloaded temperature of 28°C and humidity of 65%RH.
