Product Overview

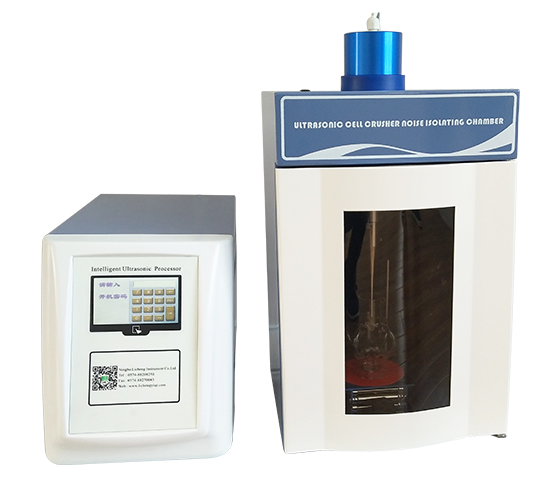

The Ultrasonic Cell Disruption Instrument (pulverizer) is a multifunctional and versatile device that uses strong ultrasound to generate cavitation effects in liquids for ultrasonic processing of materials. It is capable of breaking down various animal and plant cells, as well as viral cells. It can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among others. It is widely used in fields such as biochemical, microbiological, pharmaceutical, surface, physics, and zoological sciences.

2. Product Specifications


ModelGH88-IIN（LC-250Y）GH96-IIN or (LC-150Y)
Frequency KHz20-25K Auto Track20-25K Auto-Tracking
Watts5-250W Continuous Variable1-150W Continuous Variable
Random Range Rod mmΦ6Φ6
Optional extension rod mmΦ2、3、8、10Φ2、3、8
Crushed Capacity ml0.2-300 (with corresponding probe)0.2-150 (with corresponding probe)
Temperature Alarm Range0-100 ℃0-100 ℃
Instrument Protection FunctionOver-temperature, Over-effort, Over-timeOver-temperature, Over-performance, Over-time
Display MethodLiquid Crystal Display (LCD)Liquid Crystal Display


3. Reference values for ultrasonic transducer variable amplitude rods of various specifications:



Model: National StandardBritish SystemFrequencyRecommended Power Range Reference ValueRefer to the crushing capacity reference value
Φ2 1/12″20-25KHzmin-150W0.2-5ml
Φ31/8″20-25KHzmin-250W3-10ml
Φ61/4″20-25KHz20-400W10-100ml
Φ105/12″20-25KHz100-600W30-300ml
Φ121/2″20-25KHz200-900W50-500ml
Φ155/8″20-25KHz
19.5-20.5KHz		300-1000W100-600ml
Φ204/5″19.5-20.5KHz400-1100W100-1000ml
Φ225/6″19.5-20.5KHz400-1100W200-1000ml
Φ251″19.5-20.5KHz800-1500W500-1200ml
