DS-R1-E(RO) CNC Lathe Assembly, Adjustment, and Maintenance Training Equipment
Product Details
Numerical Control lathe machines (including horizontal and inclined bed types...
产品Price Negotiable
最小起订Quantity： 供货总Quantity：
Function Module |
|
Training Module |
Mechanical Assembly, Electrical Assembly, Electrical Fault Diagnosis and Elimination, Operation and Processing Simulation |
Equipment Module |
Numerical Control Machining Centers: Flat Bed CNC Lathe, Sloped Bed CNC Lathe, Vertical Machining Center |

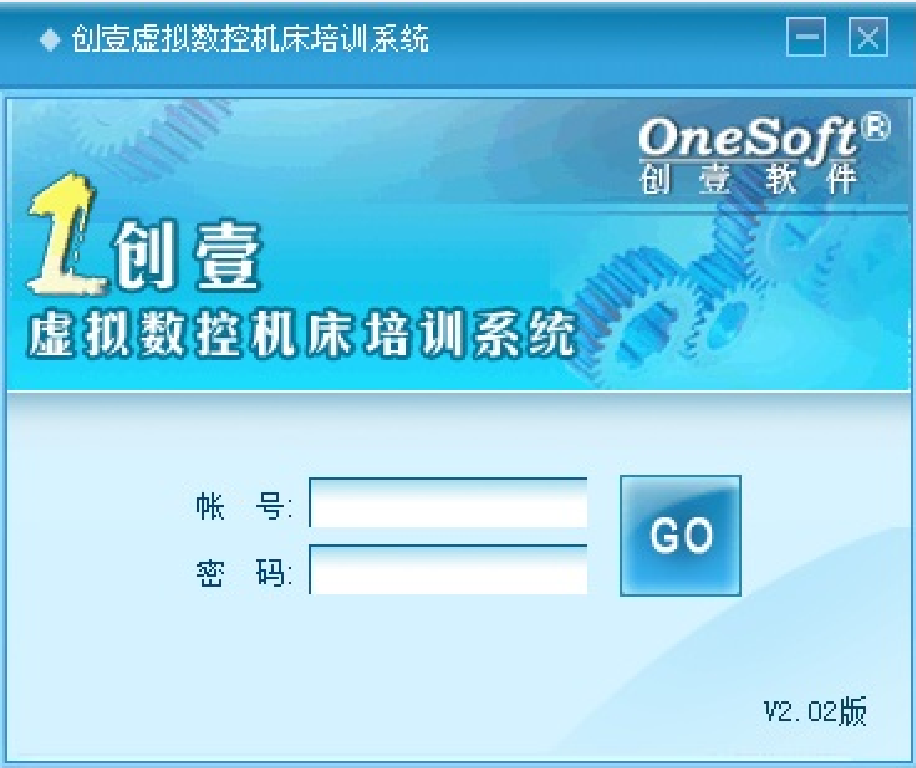

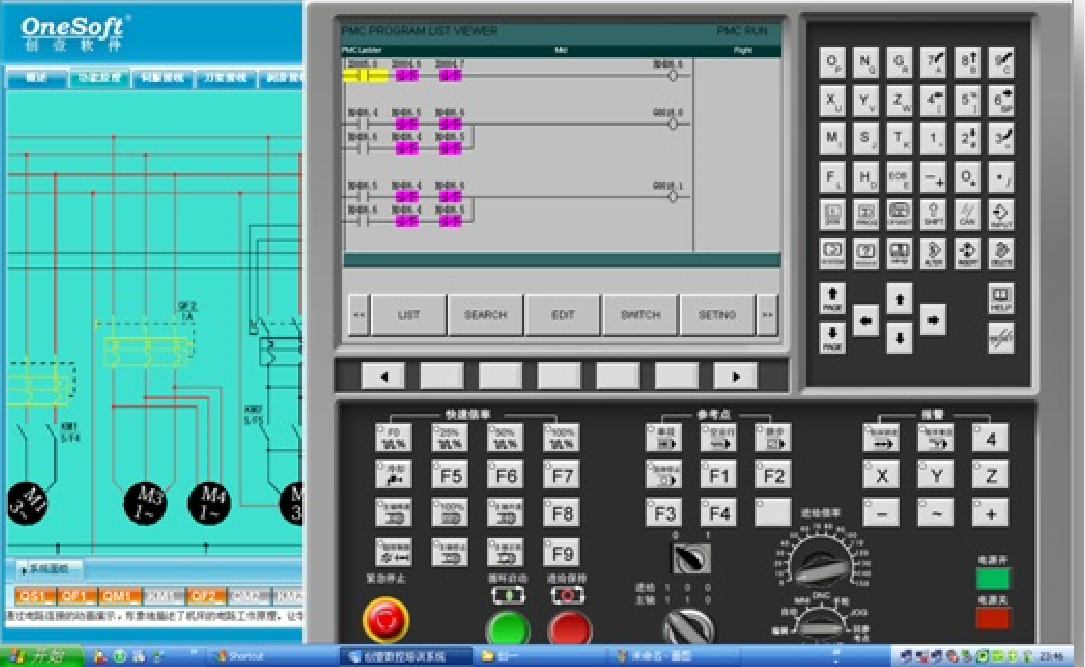

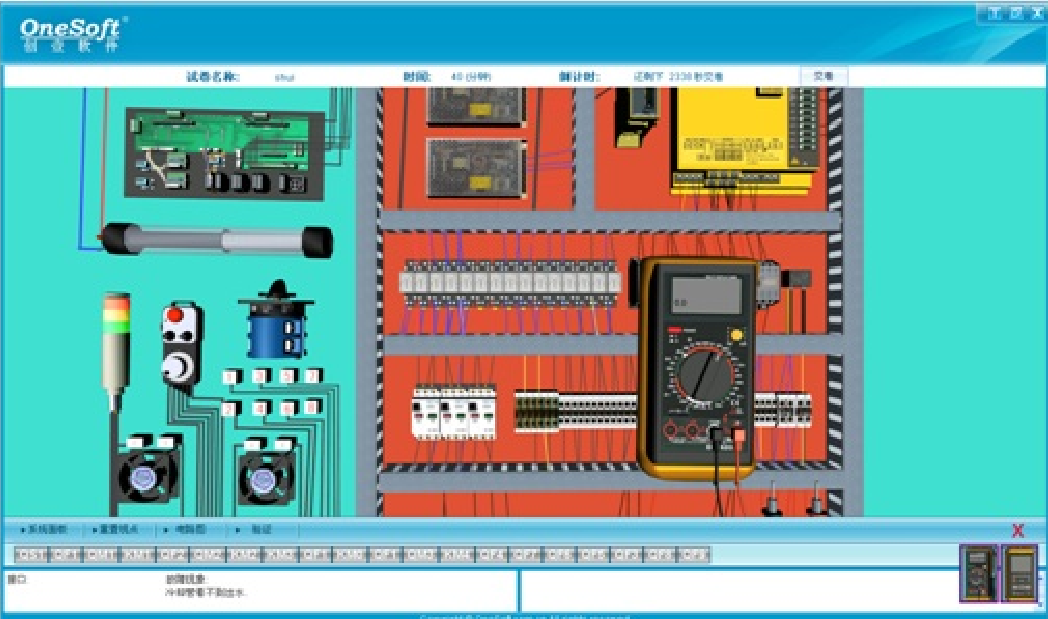

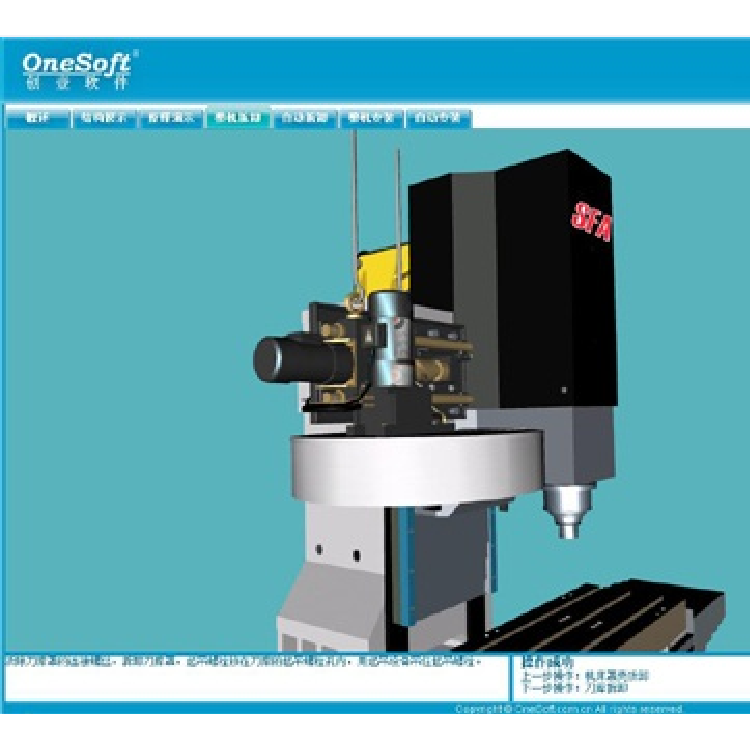

Numerical Control Machine Tool Repair Simulation Software (Virtual CNC Machine Tool Training System) is a CNC machine tool teaching and training software developed in collaboration between Xiamen Fenghuangchuangyi Software Co., Ltd. and our company, based on web3D virtual reality technology. It allows for 3D, 360° visualization and attribute assignment of all stages of CNC lathes, CNC milling machines, and machining centers, including mechanical structures, electrical components, circuit diagrams, electrical cabinets, CNC systems, machine panels, servo motors, PLCs, etc. The software enables disassembly and assembly of mechanical parts, selection and layout of electrical components, wiring of electrical cabinets, debugging of CNC systems, PLC programming, dynamic circuit diagram drawing, interactive debugging between CNC systems and PLCs, circuit diagrams, fault diagnosis and troubleshooting, as well as programming and processing simulation functions. The software includes modules for teaching, training, assessment, automatic scoring, and backend secondary development. This software is a capable learning assistant for the application of CNC technology, CNC maintenance, and CNC machining. It can be used in conjunction with the accompanying hardware (CNC maintenance experiment bench), thereby reducing hardware investment and enhancing teaching effectiveness. The software incorporates two patented technologies, boasting advanced capabilities, particularly with its small footprint on computer resources, easily running on most PCs. Features include: Educational Demonstrations, Mechanical and Electrical Training, Assessment Scoring, and Backend二次Development. Training Modules: Mechanical Assembly, Electrical Assembly, Electrical Fault Diagnosis and Rectification, Operation and Processing Simulation Equipment Modules: CNC Machining Centers: Horizontal CNC Lathe, Sloped Bed CNC Lathe, Vertical Machining Center Numerical Control Systems: Fanuc 0i Mate, Siemens 828D,华中21st Century Star, Guangshu 980, etc. Machine Tool Inspection: Laser Interferometer
