High-frequency, high-precision single-sided rack and pinion synchronous lift mechanism

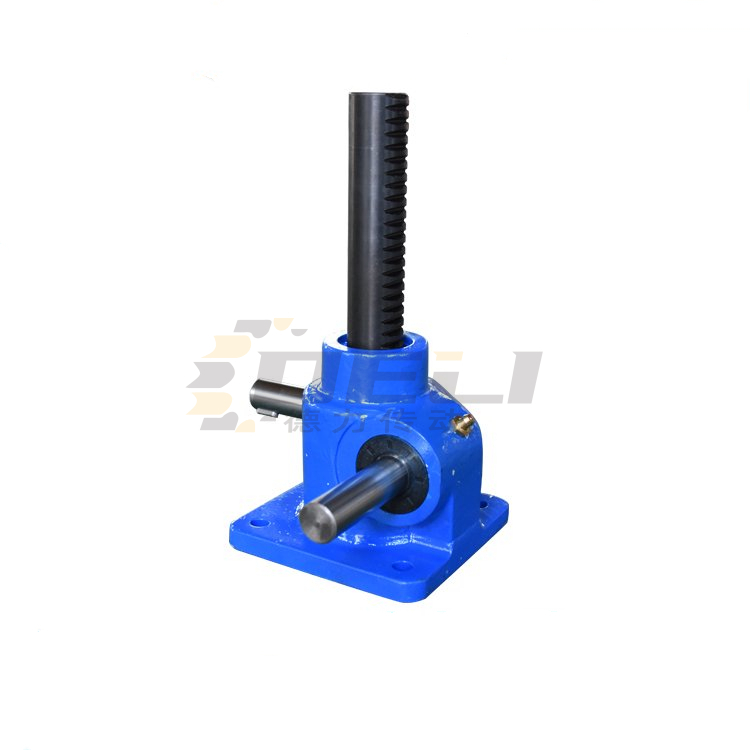

RNJ Series Rack and Pinion Elevator:1. It's the basic split-type model, specifications available include RNJ10-RNJ50, available in 3 specifications depending on the direction of the output shaft. 2, driven by a cylinder, no reduction gear, capable of movement.

RJ-4S Series Gear Rack Lifts:1. It is a basic combination model, specifications include RNJ10-4S to RNJ50-4S, customizable for size and stroke as required. 2, capable of withstanding heavy loads.

RJ-4SB Series Rack and Pinion Lift 1, the gearbox is installed on the drive shaft of the RJ-4S series, allowing direct connection to the motor. 2, Suitable for cleanroom environments when not using gears or sprockets.

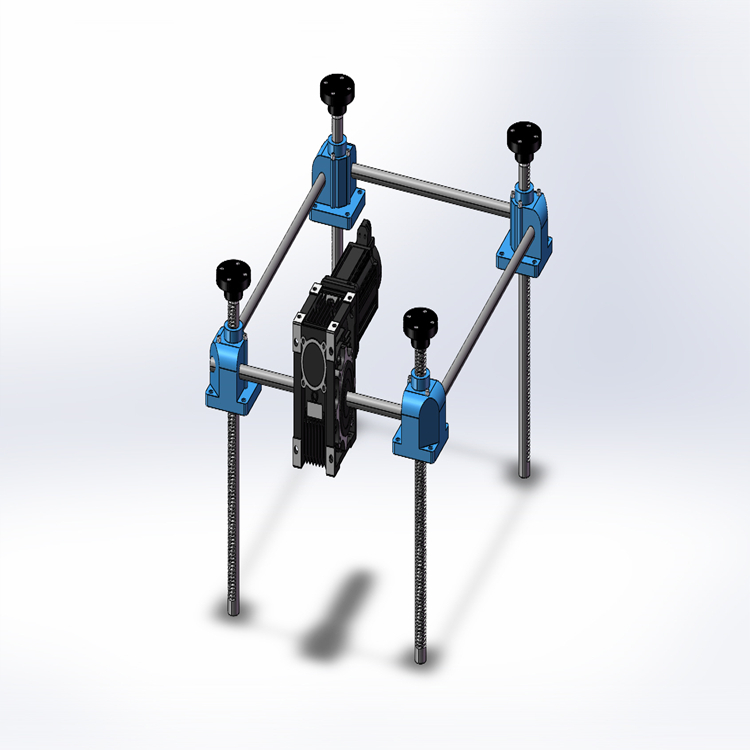

1. RJ4SH series rack and pinion lift, equipped with a turbine reducer on the drive shaft of the RJ-4S series, can be directly connected to the motor. 2. The turbine reducer features a reduction ratio, allowing it to accommodate standard motors or servo motors.

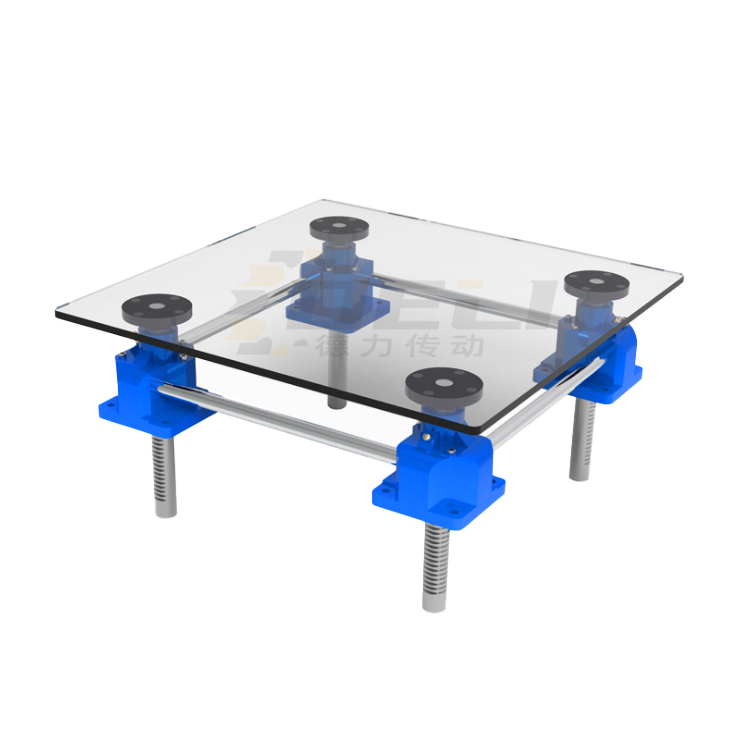

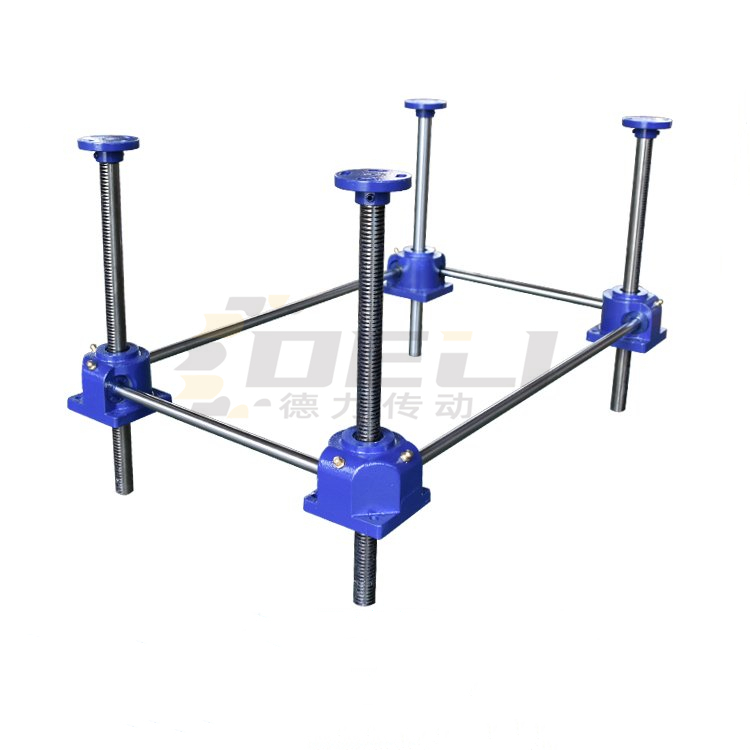

1. Operating Principle：By relying on the coordinated action between gears and racks, ensure the synchronous lifting and lowering of four or more support points, thereby achieving smooth lifting and lowering of the work platform. The synchronous error of the four support points can reach0.5mm

2. Synchronous Elevator Structure and Performance：① The synchronous lifter is a structure composed of a gear box with gears and racks, combined with a shaft, used for synchronizing the upper and lower surfaces during lifting or lowering operations. ② The gears inside the gear box mesh and operate, resulting in almost no noise. ③ The up/down movement can operate normally even when receiving less than 50% bias pressure. ④ Its guide rail is composed in unit form, featuring standardized components. The lifter is a passive type, powered by a cylinder, which serves as a guide and synchronization mechanism.

3. Features of the synchronous lifting device：① Genuine quality and simplified design; compact parts with high durability; can be assembled according to the designer's requirements, reducing design time. ② Model selection; choose different models based on varying loads, strokes, and series. ③ Axial spacing selection: Pay attention to adding an intermediate support when the axial spacing exceeds the corresponding length. ④ Up/down action with smooth, quiet rotation; the gear and rack structure ensures proper engagement, maintaining synchronization even in harsh environments.

4. Broad application scope：Suited for assembly engineering on automated production lines or logistics lines Automated Warehouse Automated photovoltaic production line Awaiting general industrial machinery equipment.

SNP Rack and Pinion LiftFeatures:

High-quality and simplified design, compact components with strong durability, requiring only regular lubrication.

The gear and rack structure ensures meshing, maintaining synchronization even in harsh environments.

Operates smoothly, low noise, versatile usage range

*Used for production line assembly processes or logistics lines, automatic warehouses, and other general industrial machinery equipment.

*SNP-POWER baHigh-quality and unique structure, suitable for use in dust-free environments.

SNPRack and pinion liftPerformance:

*SNP-POWER baThe SE is a structure that combines a gear box consisting of gears and racks with a connecting shaft, a unit designed to maintain synchronization of the upper and lower surfaces during up and down operations.

The internal gears of the gearbox mesh and rotate together, thus producing almost no noise.

The product can operate normally under 50% bias pressure during its up and down movement.

Its guide rail is composed in unit form, which allows for quick replacement of components and easy maintenance due to standardized specifications.

Features of the synchronized lifter

1 Genuine quality and simplified design, compact components, strong durability, customizable to the designer's requirements, reducing design time.

2 Model Selection; when choosing a model, select different types based on varying loads, strokes, and series.

3-axis spacing selection: Note that when the axis spacing exceeds the corresponding length, an intermediate support should be added.

4 The action on up/down is smooth with a light, gentle sound. The gear and rack structure ensures proper engagement, maintaining synchronization even in harsh environments.
