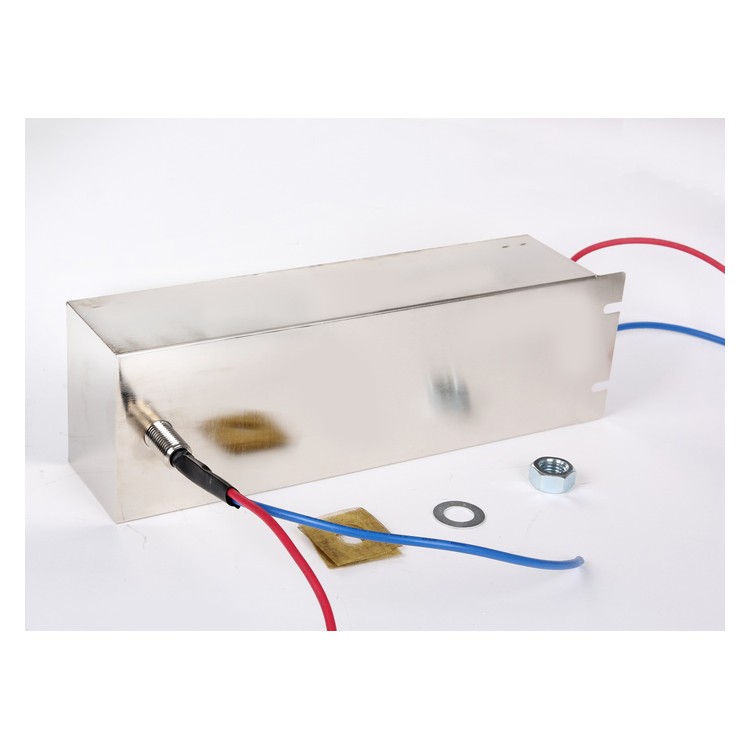

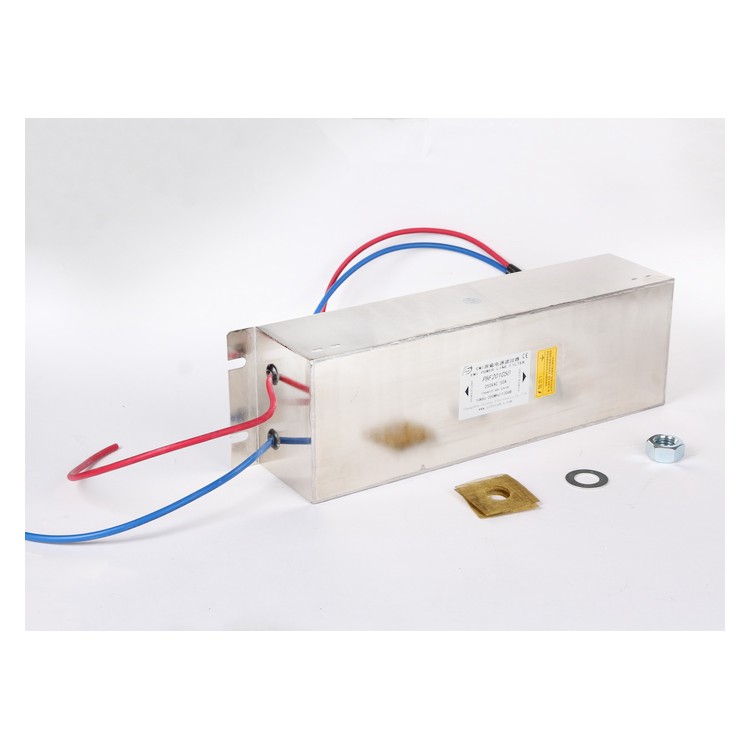

1. Shielded Chassis Filter -- Nickel Plated Shell Product Description
The product is composed of passive components. The shielded filters utilize filtering components for line filtering, employing a shielded housing to block external interference, and filter out unnecessary signals and noise disturbances in the circuit, ensuring excellent power and signal conduction filtering and radiation shielding characteristics. Shielded filters are widely used in shielded rooms, cabinets, and communication product filtering. The product's application fields cover radio wave dark rooms, shielded rooms, cabinets, and more. The shielded filters are tested in accordance with the GJB1518A-2015 General Specification for Radio Frequency Interference Filters, and in the field of shielded room darkrooms, can provide a variety of power filters and signal filters (C-class shielded filters) that offer greater than 100dB signal isolation within the 10KHz-40GHz frequency band.
2. Shielded Chassis Filter -- Nickel Plated ShellBasic Parameters
Rated Voltage: Single Phase: 110/250VAC
② Ground Wire/Three-Phase Five-Wire 380/440VAC
③ Operating Frequency 0~60Hz
④ Climate Type 25/85/21
⑤ Voltage Resistance: L-L: 1500VDC, L-E: 1500VDC
⑥ Shielding Effectiveness: B Grade ≥100dB, 150KHz~10GHz
C Grade ≥100dB 14KHz~18GHz
⑦ Classification by Line: Ground Filter: A single ground wire only
Single-phase AC: Hot wire, Neutral wire, Ground wire
Single-phase DC: DC+, DC-
Three-phase five-wire: A, B, C (three live wires), N neutral wire, E ground wire
3. Table Parameters
