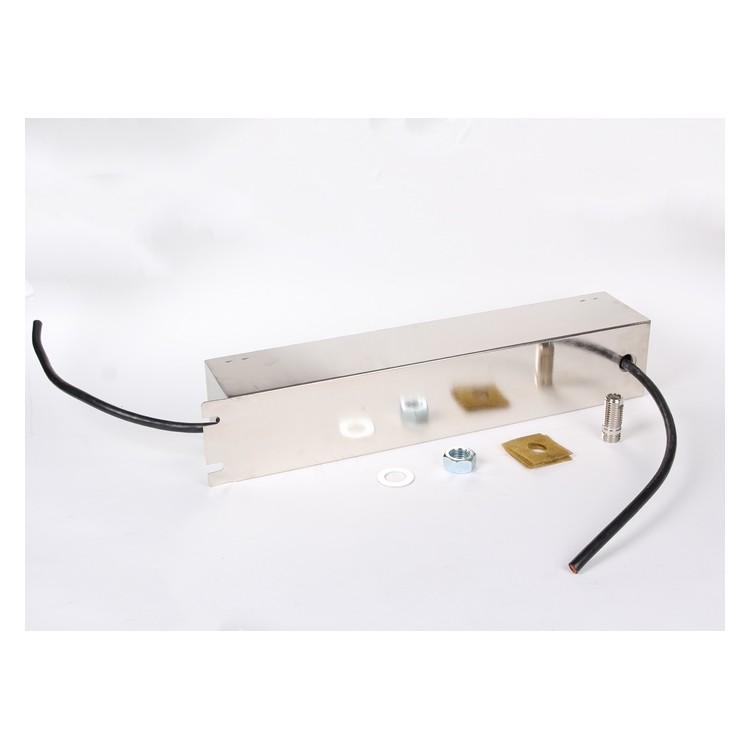

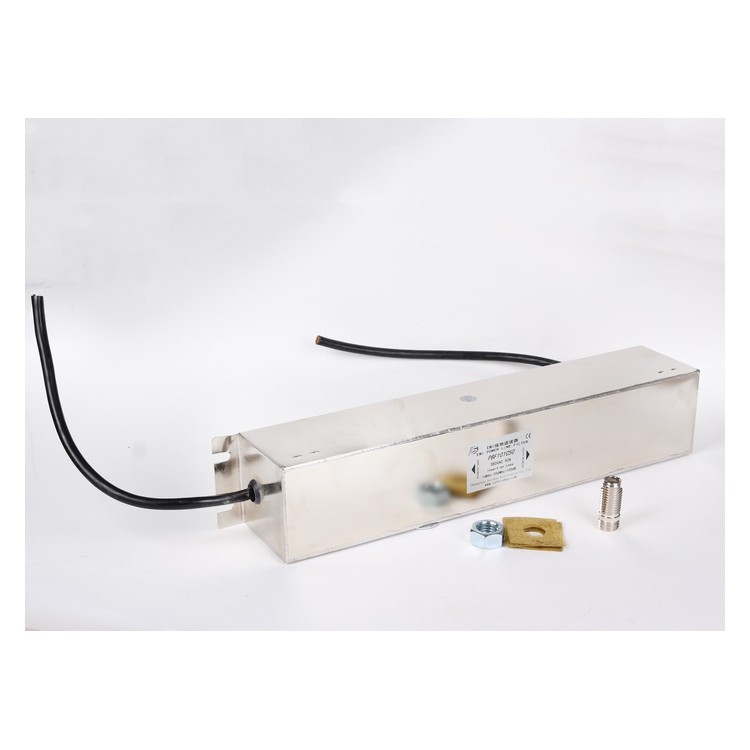

1. Shielding Room Filter -- Nickel Plated Shell Product Description
The product is composed of passive components. The filter shield filters utilize filter components for line filtering, employing a shielding housing to block external interference, and to filter out unnecessary signals and noise disturbances within the circuit, ensuring excellent power and signal transmission filtering and radiation shielding characteristics. Shielded filters are widely used in shielded rooms, shielded cabinets, and filter applications for communication products. The product's application areas cover electromagnetic wave dark rooms and shielded rooms, cabinets, and cabinets. The shielded filters are tested in accordance with the GJB1518A-2015 General Specification for Radio Frequency Interference Filters. In the field of shielded room dark rooms, they can provide various power filters and signal filters (C-grade shielded filters) with greater than 100dB signal isolation within the frequency range of 10KHz-40GHz.
2. Shielded Chassis Filter -- Nickel Plated ShellBasic Parameters
① Rated Voltage: Single Phase: 110/250VAC
② Ground Wire/Three-Phase Five-Wire 380/440VAC
③ Operating Frequency 0~60Hz
④ Climate Type 25/85/21
⑤ Voltage Resistance: L-L: 1500VDC, L-E: 1500VDC
⑥ Shielding Effectiveness: B Grade ≥100dB 150KHz~10GHz
C-Grade ≥100dB 14kHz~18GHz
⑦ By Line Type Classification: Grounding Filter: i.e., only one grounding wire
Single-phase AC: Hot wire, Neutral wire, Ground wire
Single-phase DC: DC+, DC-
Three-phase five-wire: A, B, C (three hot lines), N neutral wire, E ground wire
3. Table Parameters
