Product Name: ORION ORION PH Meter Set 310P-01 (STAR A PH/ORP Meter)
Brand: American Orolong
Thermo Orion KIT, STAR 211 PH
Model: 310P-01
Order Number: STARA2116
Suitable for testing lake water/surface water/monitored background water samples
ORION PH Meter Kit 310P-01 Introduction

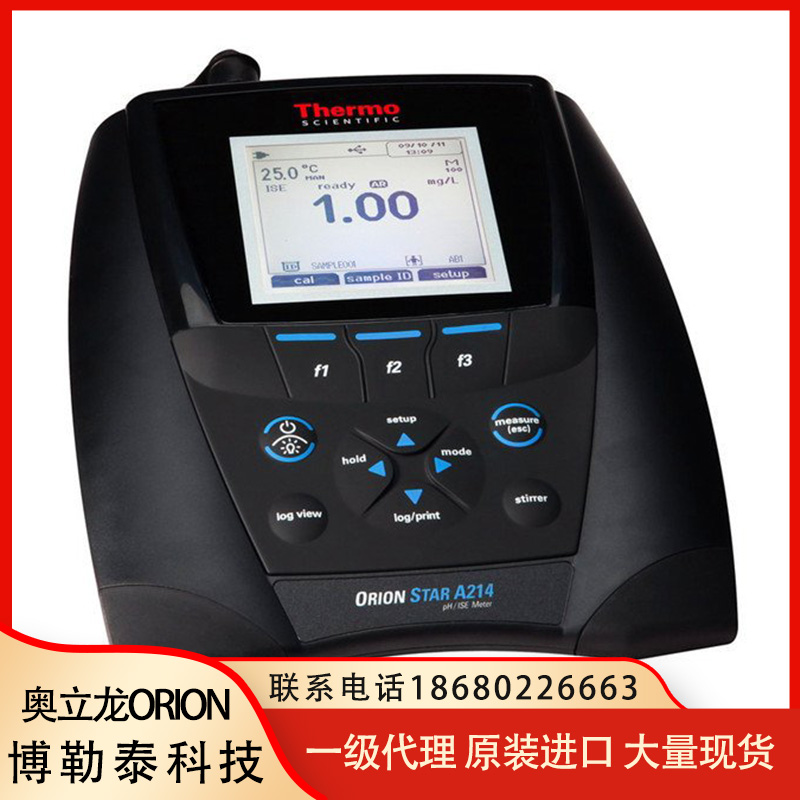

Thermo Fisher Scientific Orion Star A Orion Benchtop Precision pH Meter 310P-01 meets the measurement needs of various users. The large LCD screen allows for quick access to measurement information. It displays pH/mV/RmV and temperature, as well as icons for electrode status, time, date, sample number, user number, and calibration points, which are highly helpful for measurements. Advanced features like stability and mean values ensure accurate measurement results in any setting.
Orolong Features
● The operation interface offers 6 languages for selection, including Chinese and English.
● The AUTO-READ feature locks the reading and displays an indicator icon when the data is stable. The timer reading function automatically records readings at the set interval.
TM
● Automatically identifies DIN/USA/NIST buffers
● Editable calibration results, optimize calibration curves, avoid redundant calibration
Up to 2,000 sets of measurement data can be saved, in compliance with GLP standards.
● Data transfer or instrument software updates can be performed using USB or RS232 interface and the included data analysis software.
● Both desktop and portable instruments can be powered by AA batteries or a power adapter
● Desktop: Protection rating IP54, Portable: Protection rating IP67
AOLONG 310P-01 (STAR A PH/ORP Meter) Specifications
PH
Measurement Range: -2.000 - 20.000
Resolution: 0.1, 0.01, 0.001
Relative Accuracy: ±0.001
Calibration Points: Up to 5 Points
Calibration Editing Feature: Available
mV/RmV
Measurement Range: ±2000.0 mV
Resolution: 0.1
Relative Accuracy: ±0.1 mV
EHORP model: Available
Temperature
Measurement Range: 0-50℃
Resolution: 0.1
Relative Accuracy: ±0.1
Temperature Calibration Function: Yes, 1 point
Data Storage
Quantity: 2000 pieces, compliant with GLP standards (desktop); 1000 pieces, compliant with GLP standards (portable)
Record Type: Manual, Automatic, Scheduled (Interval) (Desktop); Manual, Automatic (Portable)
Record Editor: Single deletion, selective deletion (partial or all) for desktop, no deletion or all deletion for portable.
Input
pH Electrode: BNC, Reference Electrode Connector
ATC probe: 8-pin mini DIN connector
Output
RS232 port, USB port
Instrument Function
Operation Interface: Choose from 6 languages including Chinese and English.
Power: 4x AA batteries, 100-240V AC power adapter
Protection: Desktop with IP54 rating, portable with waterproof design, IP67 rating
Orolong pH Meter Kit Ordering Guide

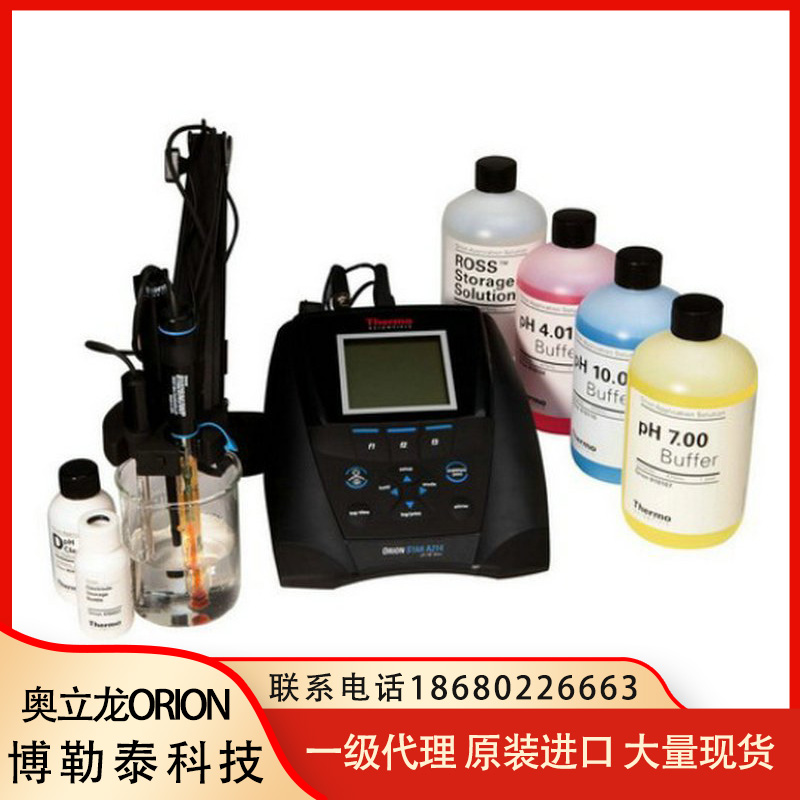

| 310P-01 | Desktop pH Kit (suitable for testing lake water/surface water/monitored background water samples) |
| A211 Main Unit, Electrode Bracket, Power Adapter, 9157BNMD Three-in-One pH Electrode, 910199 Solution Kit (pH 4, 7, 10 Buffers, Storage Solution, each 475mL, Electrode Storage Bottle) | |
| 310P-01N | Desktop pH Kit (suitable for pharmaceuticals/biology/Tris buffer/food/bottled water/cola drinks/research/quality control) |
| A211 Main Unit, Electrode Bracket, Power Adapter, 8157BNUMD Three-in-One pH Electrode, 810199 Solution Kit (pH 4, 7, 10 Buffers, Storage Solution, each 475mL, Electrode Storage Bottle) | |
| 310P-01A | Desktop pH Kit (suitable for pharmaceuticals/biotechnology/Tris buffer/food/bottled water/cola drinks/research/quality control/wastewater/drinking water testing) |
| A211 Main Unit, Electrode Bracket, Power Adapter, 8102BNUWP SuperROSS Composite pH Electrode, 927007MD Temperature Compensating Electrode, 910199 Solution Kit (pH 4, 7, 10 Buffer/Storage Solution, each 475mL, Electrode Storage Bottle) | |
| 310P-02A | Sure-Flow pH Kit for Desktop (suitable for environmental wastewater/surface water/sea water, as well as thick samples like juice/beer/milk and wastewater/soil solutions; no electrode clogging) |
| A211 Main Unit, Electrode Bracket, Power Adapter, 9172BNWP Sure-Flow Composite pH Electrode, 927007MD Temperature Compensating Electrode, 910199 Solution Kit (pH 4, 7, 10 Buffers, Storage Solution, each 475mL, Electrode Storage Bottle) | |
| 310P-06A | Desktop Pure Water pH Kit (suitable for pharmaceuticals/biology/Tris buffer/food/bottled water/cola drinks/scientific research/quality control/wastewater/drinking water testing) |
| A211 Main Unit, Electrode Bracket, Power Adapter, 8157BNUMD Super ROSS Three-in-One pH Electrode, 700001 Pure Water pH Testing Kit (Pure Water pH Ion Strength Regulator, Pure Water pH Buffer), 810001 Electrode Storage Solution | |
| 320P-01 | Portable pH Kit (suitable for lake/surface water/pharmaceutical/biological/Tris buffer/food/beverage/scientific research/quality control/wastewater/drinking water testing) |
| A221 pH Portable Master, 4 AA batteries, 9107BNMD Triple pH Electrode (1-meter cable), 10 bags of 910410 pH 4.01 Buffer, 10 bags of 910710 pH 7.00 Buffer, 10 bags of 911010 pH 10.01 Buffer, 475mL of 910001 ROSS Electrode Storage Solution, 10 bags of 911110 Rinse Solution, Instrument Protective Cover (with Electrode Mount), Portable Case | |
| 320P-01A | Portable pH Kit (Suitable for Lake/Water Surface/Pharmaceutical/Biological/Tris Buffer/Food/Beverage/Scientific Research/QC/Wastewater/D drinking Water Testing) |
| A221 pH Portable Meter, 4 AA batteries, 8107UWMMD ROSS Tri-Function pH Electrode (3-meter cable), 910410 pH 4.01 Buffer Solution, 10 bags, 910710 pH 7.00 Buffer Solution, 10 bags, 911010 pH 10.01 Buffer Solution, 10 bags, 810001 ROSS Electrode Storage Solution 475mL, 911110 Rinse Solution, 10 bags, Instrument Cover (with Electrode Mount), Portable Case | |
| 320P-83A | Portable ORP (Oxidation-Reduction Potential) Kit |
| A221 Portable Main Unit, 4 AA Batteries, 9179BNMD Tri-color ORP Electrode, 967961 ORP Standard Solution, STARA-CS Portable Case |
