Product Advantages

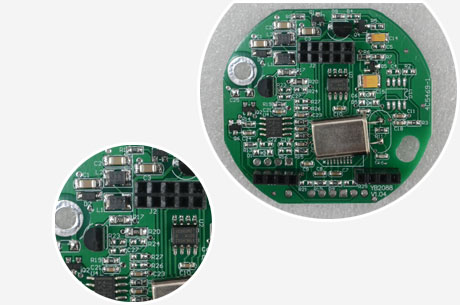

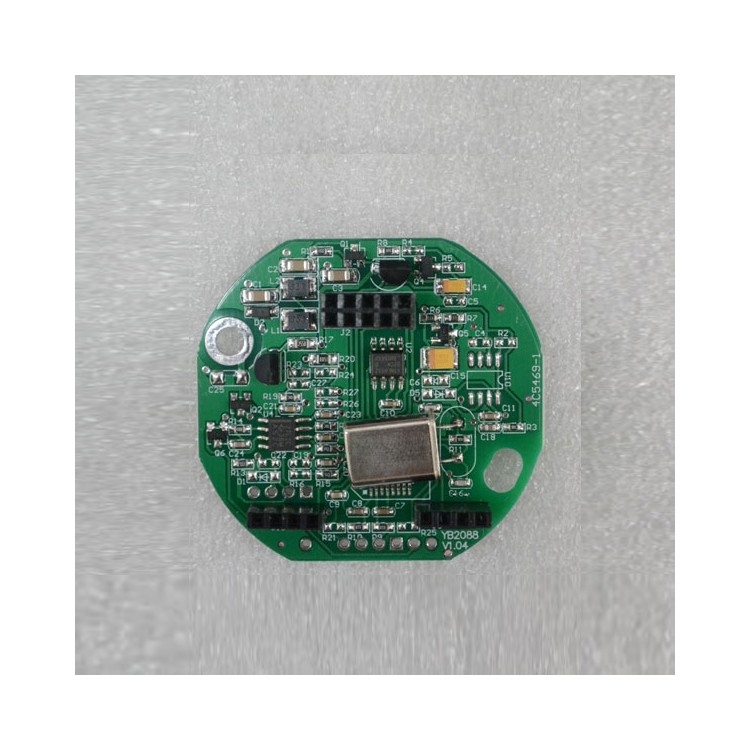

1.Transmitter Utilizing imported components from the U.S. and Taiwan, we've extended the lifespan of the pressure sensors, thereby reducing your costs. |  |

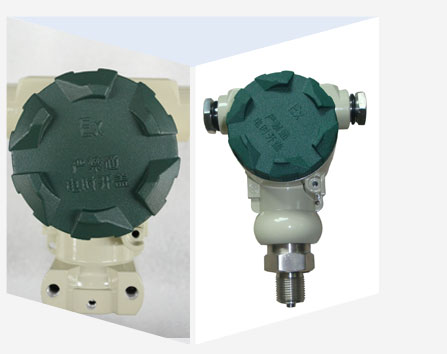

 | 2.Explosion-proof junction box Waterproof, dustproof, and also explosion-proof, allowing for safe measurements in hazardous environments. |

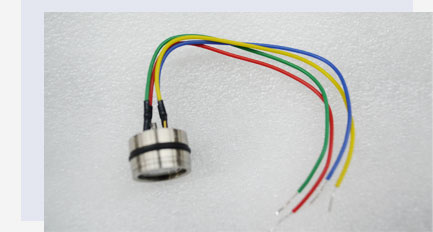

3. Core material 316 material with corrosion resistance; wide temperature compensation from -10℃ to 70℃ ensures the linearity of the pressure sensor, and the high-quality core components make operation effortless. |  |

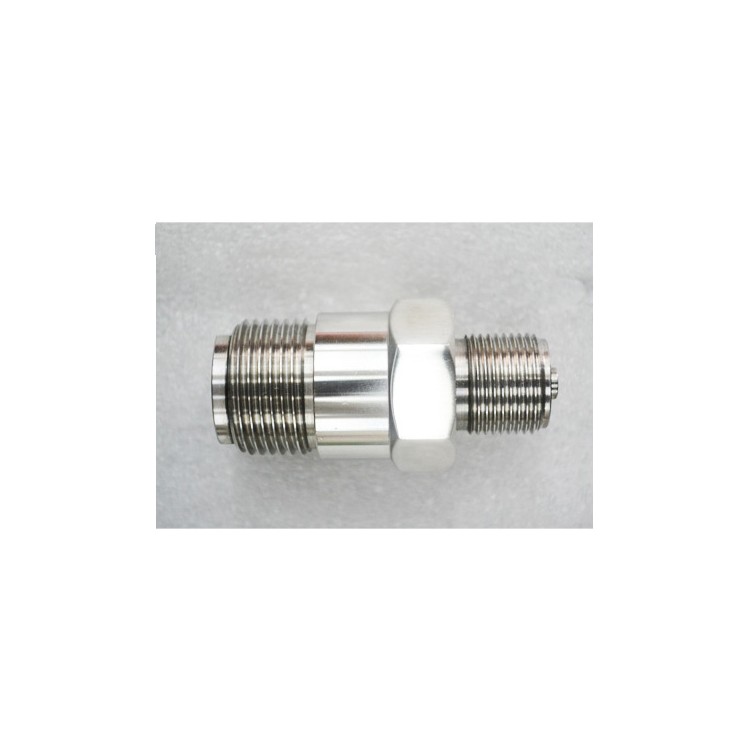

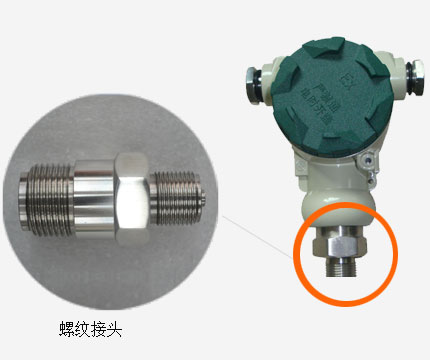

 | 4. Threaded coupling 304 material, CNC lathe machining, ensures dimensional consistency, offers superior interchangeability to users. |
Technical Specifications
| Range: -0.1MPa to 60MPa, any sub-range, with a minimum range of 500Pa Accuracy Grade: 0.2 grade (within full scale of 1kPa to 60MPa) 0.5 grade (spanning 500Pa to 60MPa) Load Capacity: Current Output ≤ 500Ω; Voltage Type Output Impedance 250Ω Medium Temperature: -20°C to 80°C Ambient Temperature: -20℃ to +80℃ Supply Voltage: DC 24V (12V to 32V) Non-linear: ± 0.2% F.S Latency and Repeatability: ± 0.1% F.S. | Long-term Stability: ± 0.1% F.S/yr Thermal Zero Drift: ±0.02% F.S/°C Response Time: ≤ 50ms Work Pressure: 2x Range Electrical Connections: Terminal Connectors Process Connection: M20x1.5 External Thread/DN25 Flange Connection/Other External Part Material: Standard Stainless Steel / 316 Stainless Steel Housing Material: Die-cast aluminum shell Protection Level: IP 65 (EXdⅡCT6Gb) |
