Product Introduction

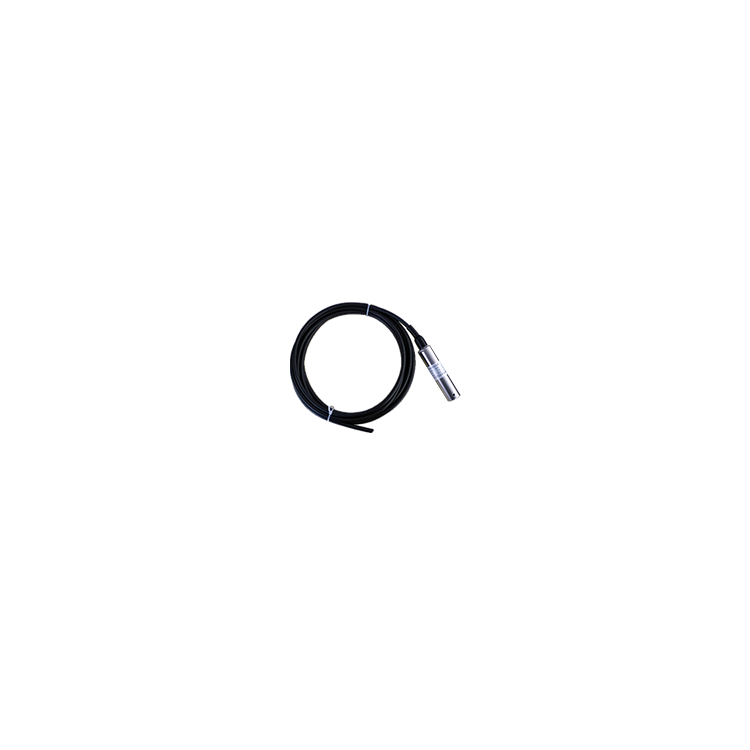

Submersible static pressure level transmitter is based on the principle that the measured liquid's static pressure is proportional to its height. It utilizes the piezoresistive effect of an isolated diffused silicon sensitive element to convert static pressure into an electrical signal, which is then temperature-compensated and linearly corrected to produce a standard electrical signal (typically 4-20mA).

The KZY-K series submersible static pressure level transmitter is suitable for liquid level measurement of various media in systems and industries such as petrochemicals, metallurgy, power, pharmaceuticals, water supply and drainage, and environmental protection. Its compact structure, simple adjustment, and flexible installation methods provide convenience for easy use by customers.


Technical Specifications


Range: 0-0.5m to 200m
Load characteristics: Current output type ≤500Ω (DC24V)
Voltage Output Type: Impedance ≤ 250Ω
Insulation Resistance: >100MΩ
Medium Temperature: -20℃ to 70℃
Ambient Temperature: -10℃ to 60℃
Supply Voltage: DC 24V (12V to 32V)
Non-linear: ±0.2% F.S
Latency and Repeatability: ±0.1% F.S.		Long-term stability: ±0.1% F.S/y
Thermal Zero Drift: ±0.03%FS/℃
Response Time: ≤100ms
Overload: 2 times the scale
Electrical Connections: Cable Connections
Measurement Accuracy (23°C, 1 atm): Grade A 0.25% FS
Grade B, 0.5% FS
External Parts Material: Standard Stainless Steel / 316 Stainless Steel
Protection Level: IP 68



Product Selection

KZY-K L Integrated Cable Connection Y1 Disassembled Rigid Stainless Steel Pipe Connection Y2 Disassembled Soft Stainless Steel Pipe Connection Y5 Disassembled Cable Connection A 4-20mA V 0-5V Z LCD Display (Limited to Disassembled 4-20mA Type) E LED Display (Limited to Disassembled 4-20mA Type) No Fixed Method G Thread M20×1.5 (Limited to Disassembled) F Flange Mounting (Limited to Disassembled)
