Technical Specifications


Range: -0.1MPa to 60MPa, any sub-range; low range of 5kPa
Accurately grade to 0.25 class (within full scale of 5kPa to 60MPa)
0.5 grade (range from 5000Pa to 60MPa)
Load Capacity: Current output type ≤ 500Ω; Voltage type output impedance 250Ω
Medium Temperature: -20℃ to 85℃
Ambient Temperature: -20℃ to +70℃
Supply Voltage: DC 24V (12V to 32V)
Non-linear: ±0.2% F.S.
Latency and repeatability: ±0.1% F.S.		Long-term Stability: ± 0.1% F.S/y
Thermal Zero Drift: ± 0.02% F.S/℃
Response Time: ≤ 50ms
Work Pressure: 2x Range
Electrical Connections: Standard Housman or Large Housman Connectors
Process Connection: M20x1.5 external thread or other
Exterior Part Material: 316 Stainless Steel
Housing Material: 316 Stainless Steel
Protection Class: IP 54

Product Selection

KZY-K Model Code | Description | O - Non-Explosion Proof | H - Standard Hoskins Connector | A - 4-20mA (Two-wire System) | V1 - 0-5V | V2 - 0-10V | G - Gauge Pressure | E - LED Display (Only for 4-20mA Output Products) | G Thread M20x1.5 (Default, optional)

Product Features


1. Laser tuning resistance temperature compensation with wide temperature range usage.
2. High overload and impact resistance, strong anti-interference capability.
3. Excellent corrosion resistance, capable of measuring various media.
4. Overvoltage and overcurrent protection circuit
Surge protection, reverse polarity protection
6. Imported diffused silicon or ceramic chips, suitable for measuring in various pressure conditions.
7. Wide applicability, high stability.
8. Compact and meticulously crafted, easy to install.

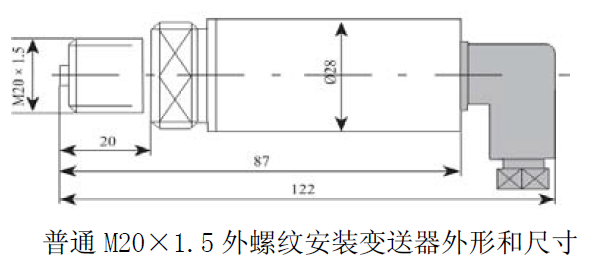

Appearance dimensions
