300-Type Stabilized Soil Mixing Plant

Stabilized Soil Mixing StationProduct Description:

A stable soil mixing station is a batching equipment developed and produced by our factory with advanced domestic and international technology to meet the construction needs of high-grade highways, urban roads, airports, ports, sports fields, and other subgrade materials. Its superior anti-blocking spiral and cement silo design ensure the reliability of cement conveyance and the accuracy and stability of cement measurement. It can utilize quicklime, slaked lime (with water content of10-15%Composed of materials such as soil, sand, stone, fly ash, and cement, it produces base materials like cement-stabilized sand and gravel, lime-soil stabilized base material, and compressible concrete. The base materials are accurately proportioned, well-mixed, and meet the requirements of construction projects.。This equipment boasts excellent performance, advanced technology, rational structure, reliable quality, ease of use, easy maintenance, and high production rates, making it an ideal batching equipment for construction companies.

Key Features of Soil Stabilizer Mixing Station:

1.Excellent blending performance

2.Excellent operational control performance

3.Dual-machine dual-control technology, one step ahead

4.Superior environmental performance

5.Measurement Performance。

 Stabilized Soil Mixing StationEquipmentPrimary Composition System:

1Ingredient supply system: batching hopper, variable speed frequency control measuring belt conveyor, belt conveyor.

2Cement supply system: Cement silo (cement hopper), variable speed frequency converter flow metering feeder, screw electronic scale conveyor.

3Automatic Water Supply System: Pressure Vessel, Submersible Pump, Pipe, Pressure Reducing Valve, Flow Meter, Sprinkler。

4Agitator System: Electric motor reducer, twin horizontal shaft continuous mixer.

5Storage Warehouse System: twin-discharge storage silos, inclined belt conveyors, air compressors.

6Electrical System: Operating Control Cabinet, Operation Room.

7Measurement and Control System: Taiwan mainframe, Swiss Torrington electronic sensors, variable frequency speed regulation.PCCControl available in manual (and fully automatic) versions.

The unit is equipped with a bulk cement silo (including a screw conveyor). A bag cement hopper can be optionally provided upon customer's request.

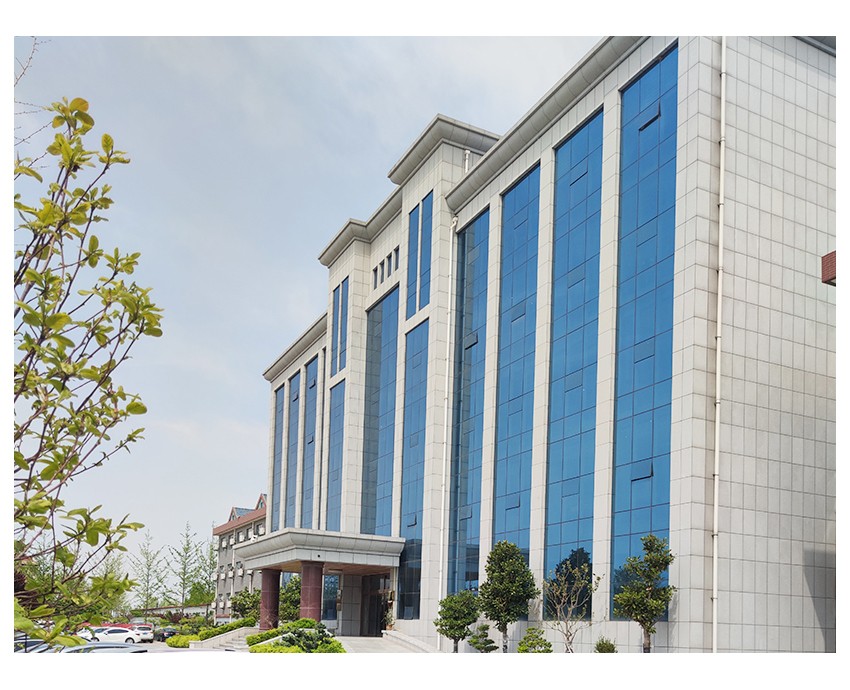

Shandong Baite Heavy Industry Co., Ltd. (Weifang Baite Engineering Machinery Co., Ltd.)Located in the Anqiu Economic Development Zone of Weifang, the international kite capital, we are a key national manufacturer of complete concrete machinery. The company covers an area of 200,000 square meters and has a building area of 100,000 square meters, with over 1,000 employees.

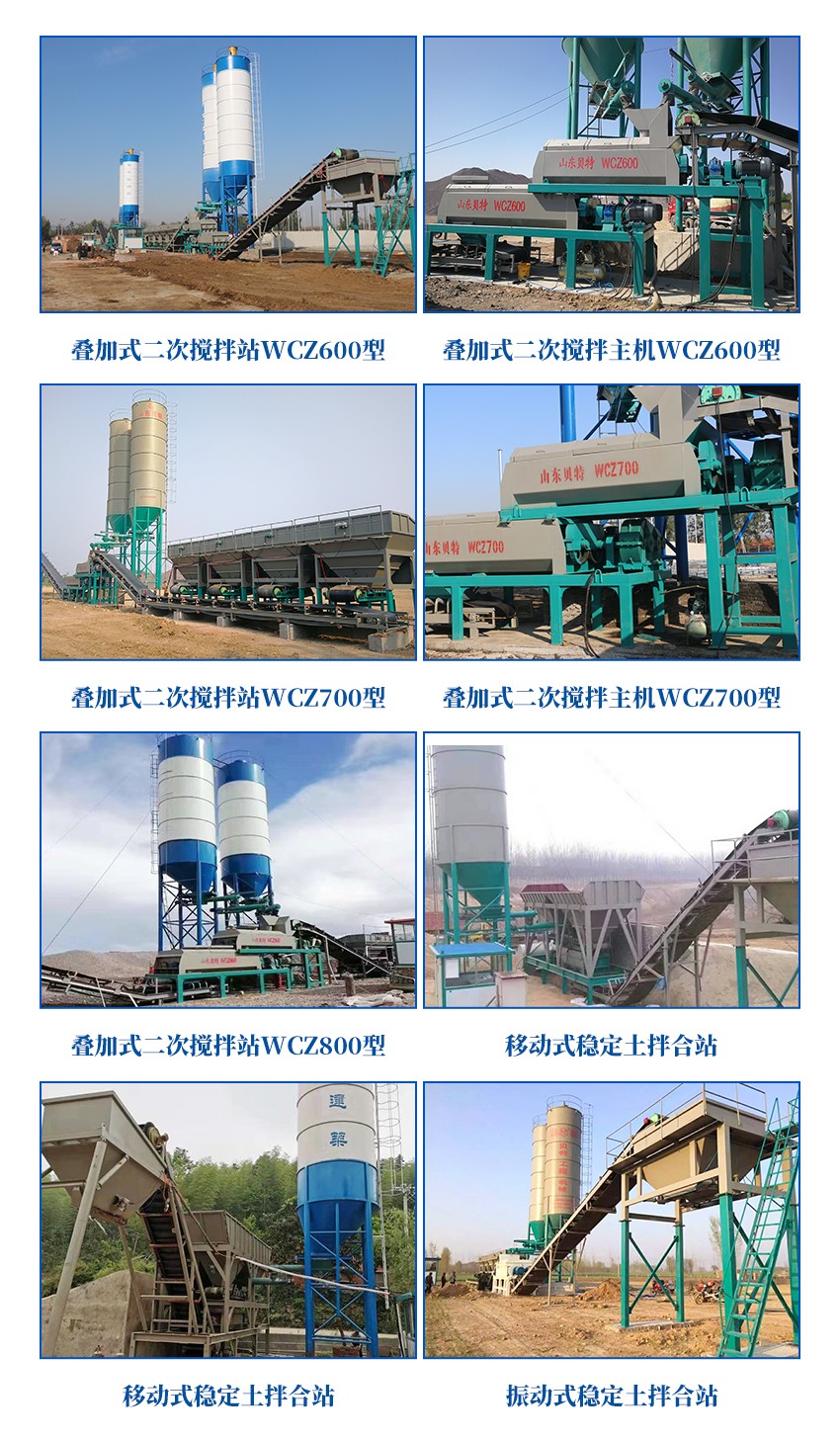

     Primarily produceHZ(L)S/25—240Series Concrete Mixing Plants (Tower)WCZ/300—800Series of stable soil mixing stations, intermittent stable soil mixing stations.LB1000—5000Type asphalt batching plant.Widely used in high-rise buildings, expressways, airports, bridges, and hydraulic and water conservancy projects.Our products have been distributed across more than 30 provinces and cities in China, and have entered the international market, being exported to various countries and regions including Europe, Africa, Southeast Asia, and more.
