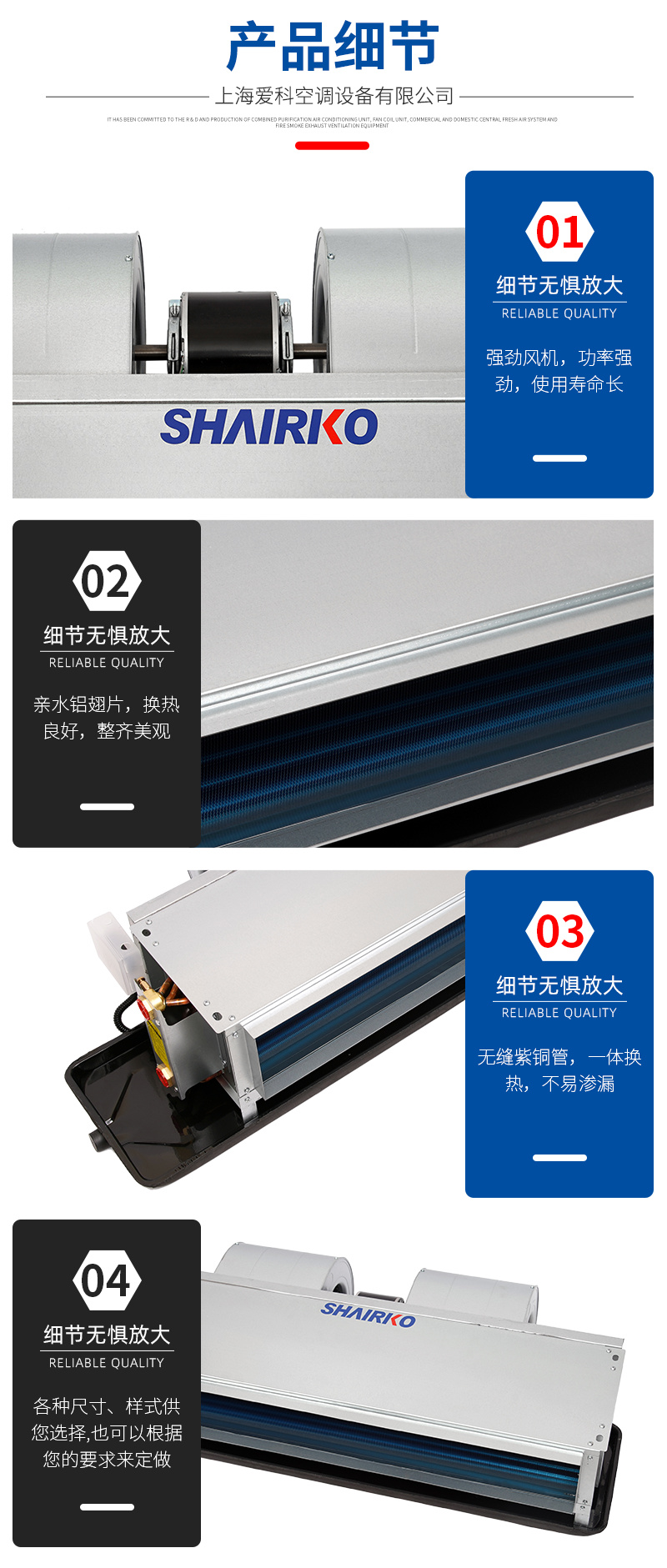

Utilizing unique hyperbolic windowed fin design and staggered plate heat exchanger copper tubes, it maximizes airflow disturbance, ensuring smooth ventilation with low noise and significantly enhanced heat transfer efficiency, boosting the heat exchanger efficiency of the coils by 5%.

Utilizing flat-head self-tapping screws for easy installation and handling.

High-quality seamless copper tube, OD 9.52mm, wall thickness 0.35mm

The water pan is made using a whole molding process, with no weld joints and static electricity painting technology to ensure lifelong corrosion resistance. It features a thick thermal insulation layer, an extended seamless steel pipe condensate outlet, and is convenient for installation and pipe connection.
