Product Details
Tunnel Roughening Machine, Hollow Plate Roughening Machine, Collision Wall Fo...
产品Price 1680.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 100 Tai
Air Operated Hand Chisel Blaster, Concrete Surface Roughening Machine, Hengquan Machinery
¥500.00
Garage Wall Beam Column Reinforcement Hand Chipping Machine, Multi-Angle Chipping Machine
¥500.00
Concrete Surface Roughening Machine for Building Renovation, Bridge, Tunnel - Handheld Mini Chisel
¥500.00

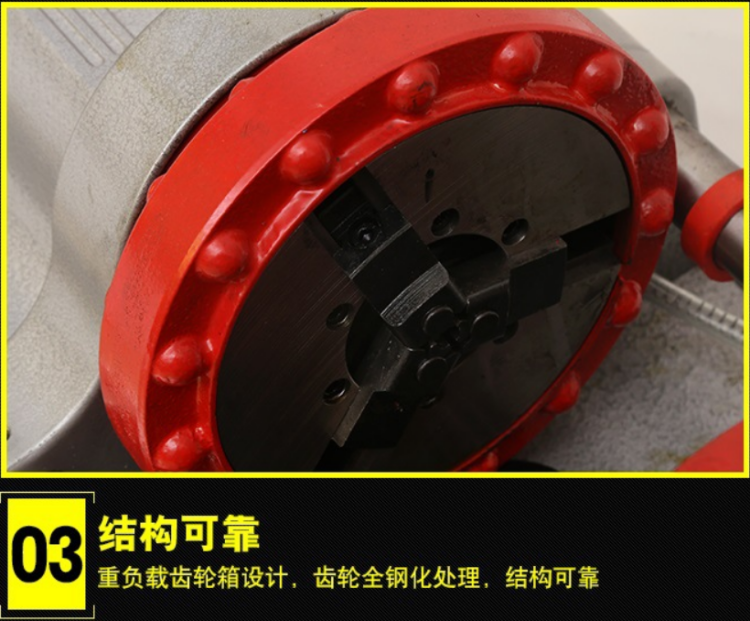

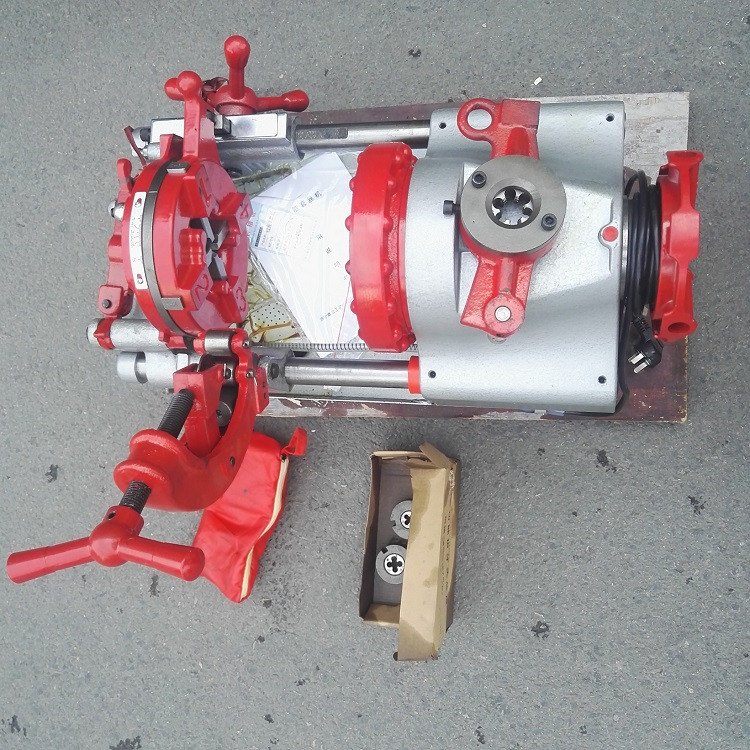

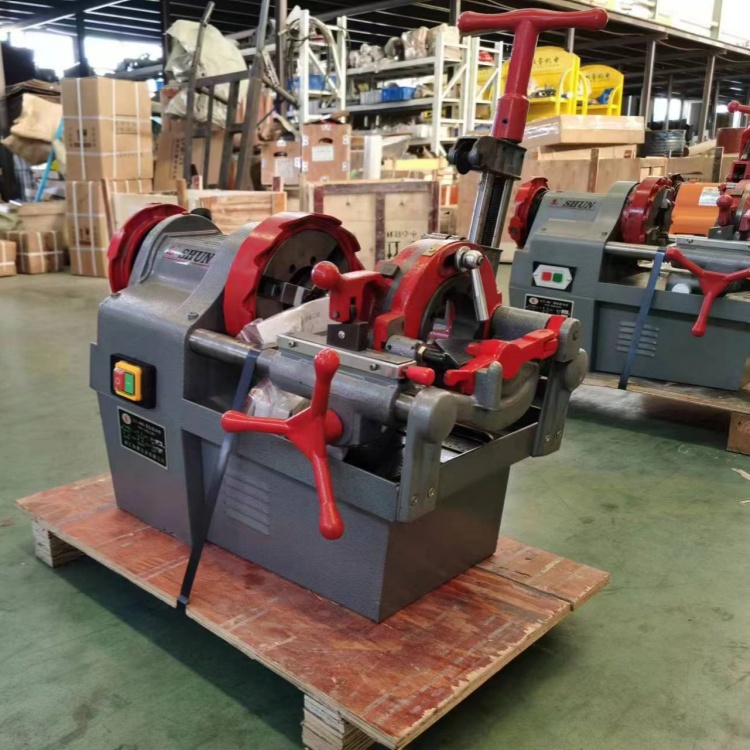

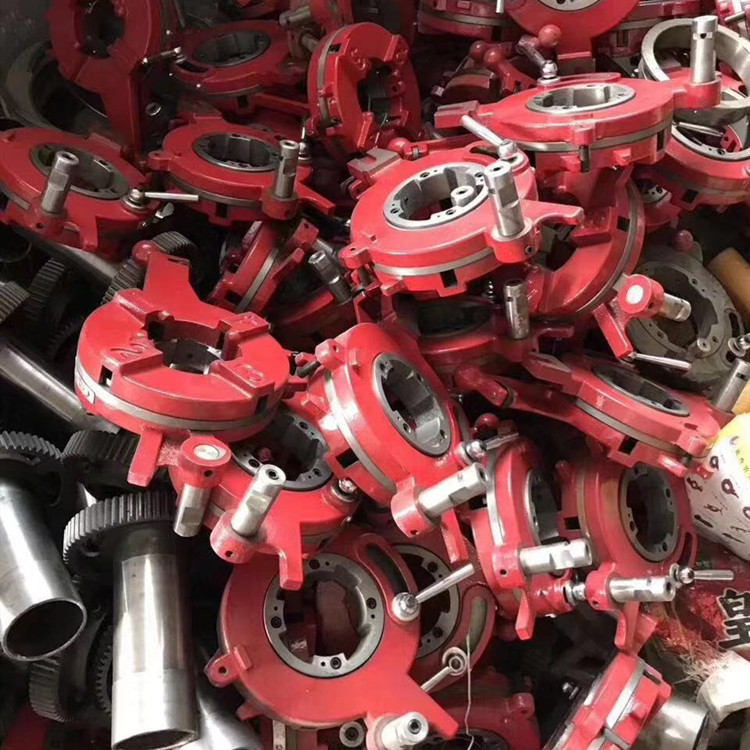

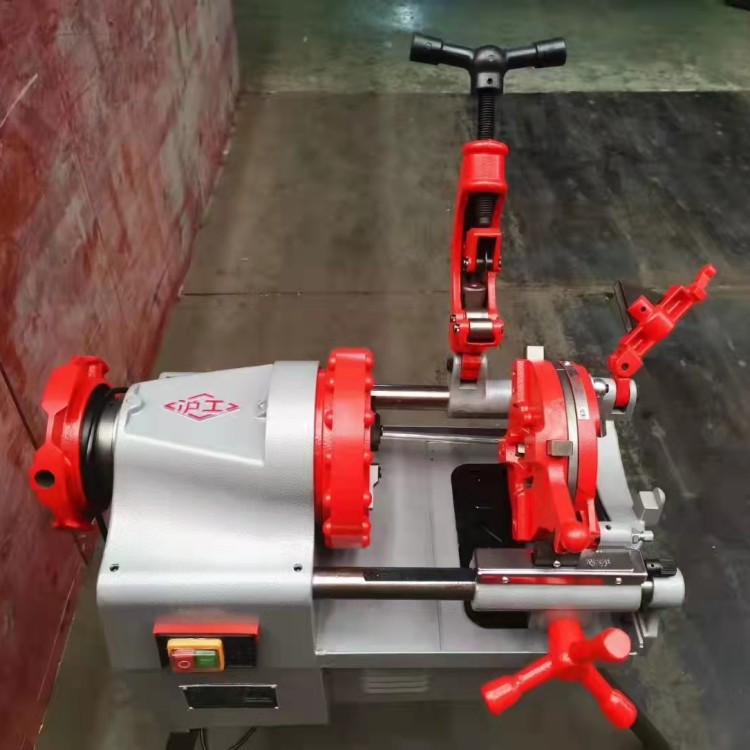

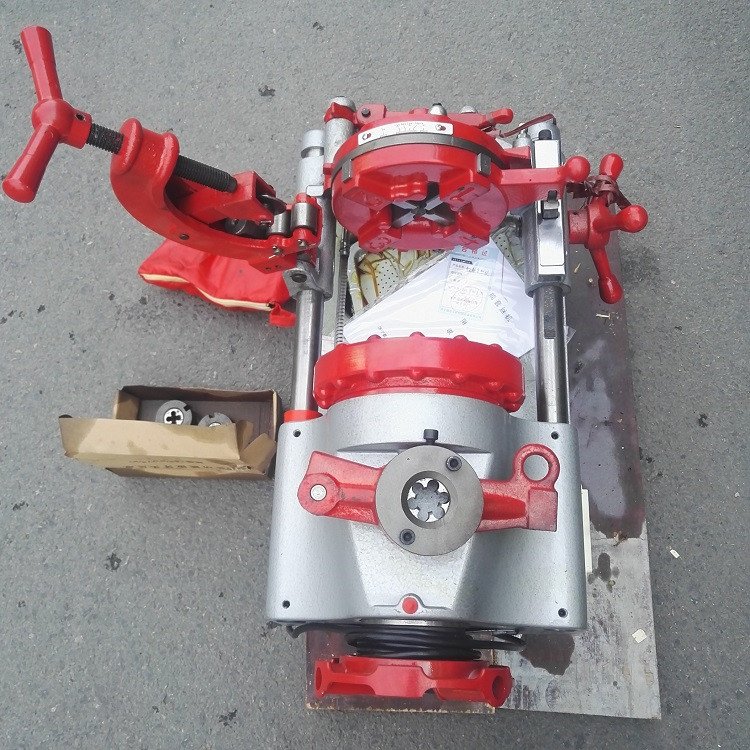

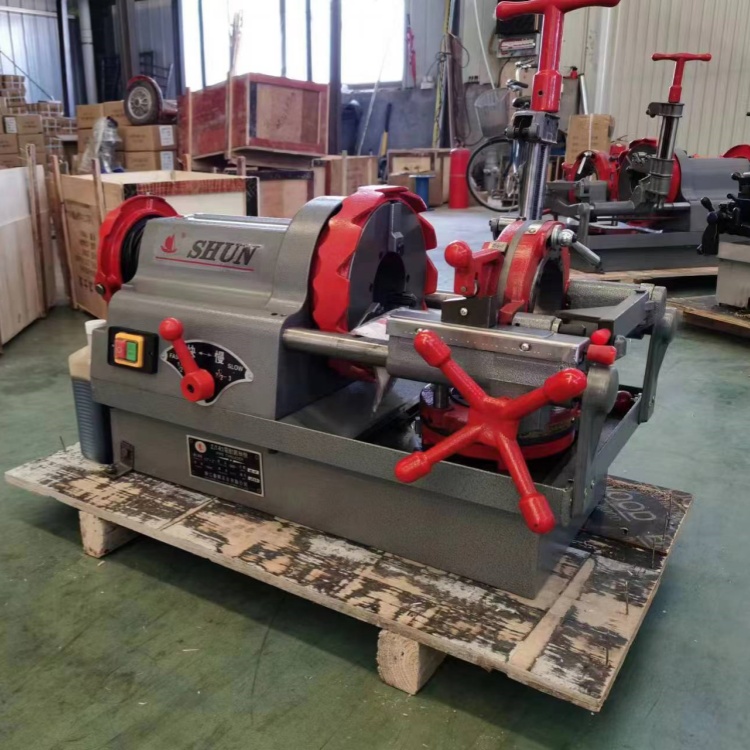

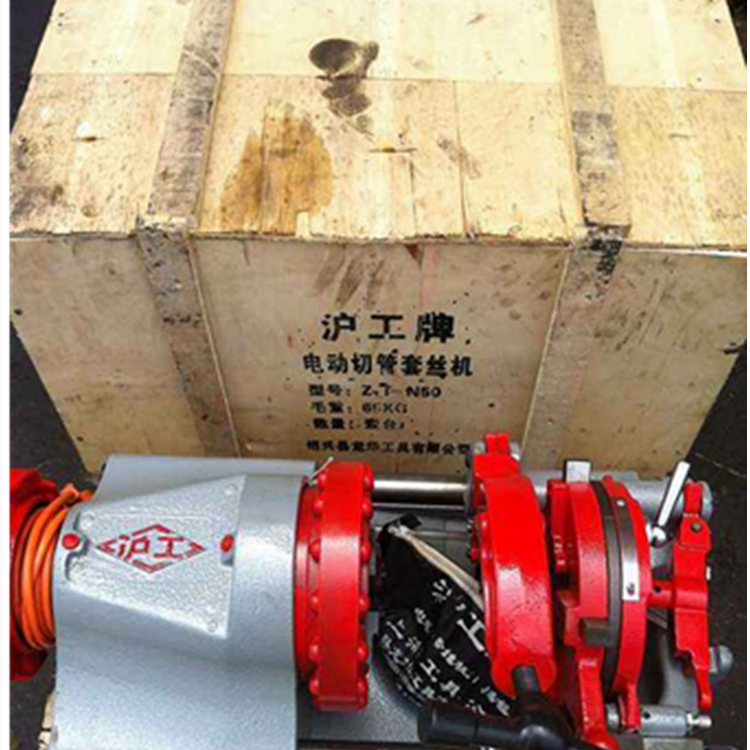

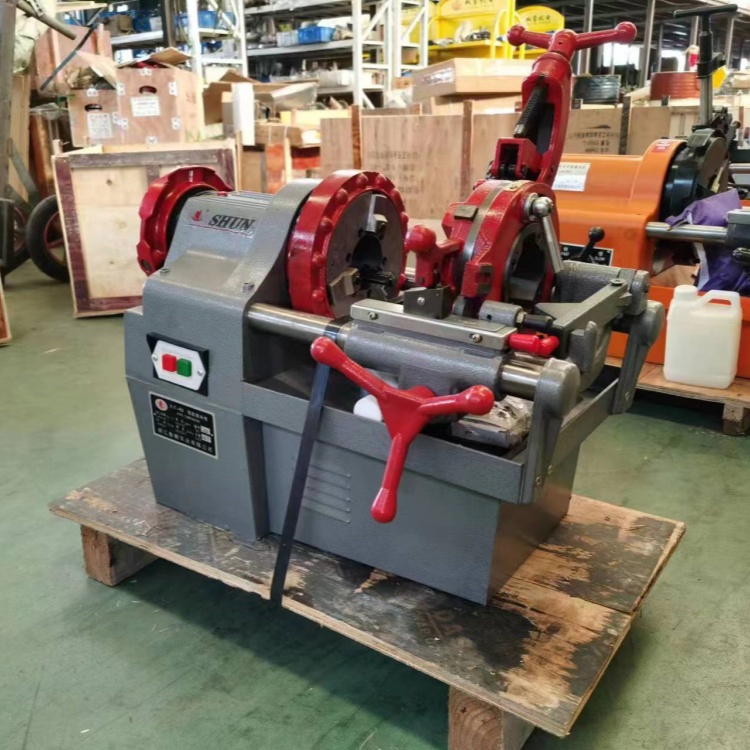

50-Type Fire Hose Threader, Electric Hydraulic Thread Rolling Machine, Handheld Threader Sales Phone: 189-0537-7135, Manager Li The threading machine consists of: the body, electric motor, reducer box, pipe chuck, die head, cutter holder, feed device, and cooling system. Tubing Cutting Machine Specifications: 2-inch threading pipe cutting machine The processing range is 1/2" - 2". 750W power Voltage: 220V Spindle speed: 22 RPM Weight: 68 kg 770尺寸x570x580 mm 3-inch pipe threading cutting machine The processing range is 1/2" - 3". 750W power rating Voltage: 220V/380V Spindle Speed 24/9 Dimensions: 900x600x650 mm 4-inch threading cutting machine Processing range: 1/2" - 4" 750W power rating Voltage: 220V/380V Spindle Speed: 23/9 Dimensions: 1100x880x730 mm 6" threading cutting machine The processing range is 2 1/2" - 6". 1100W power Voltage: 380V Spindle Speed: 23/9 Dimensions: 1100x880x730 mm

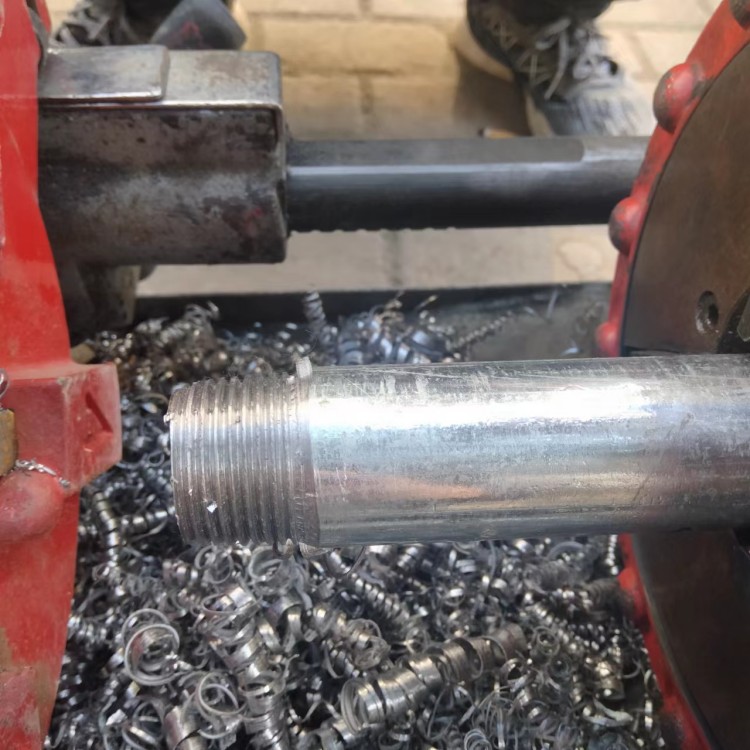

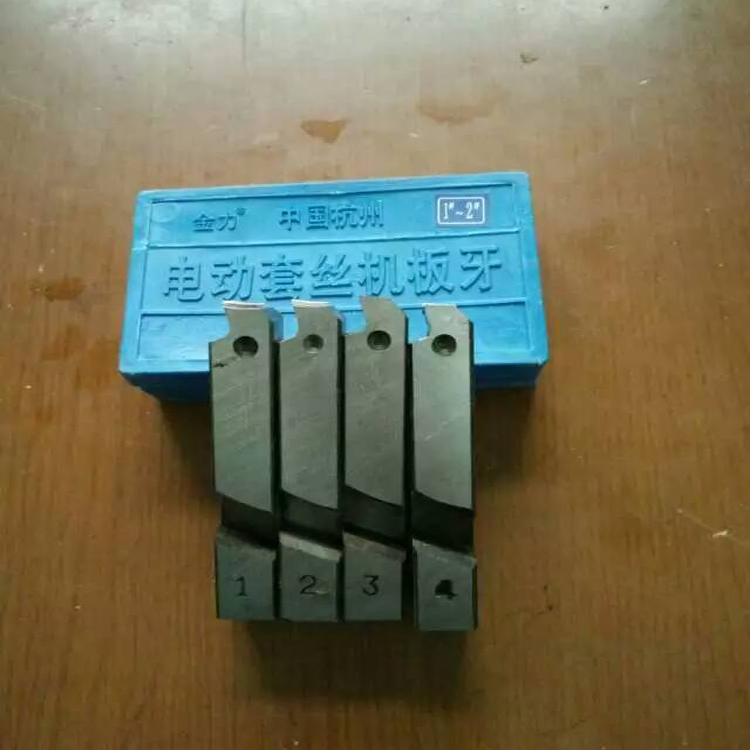

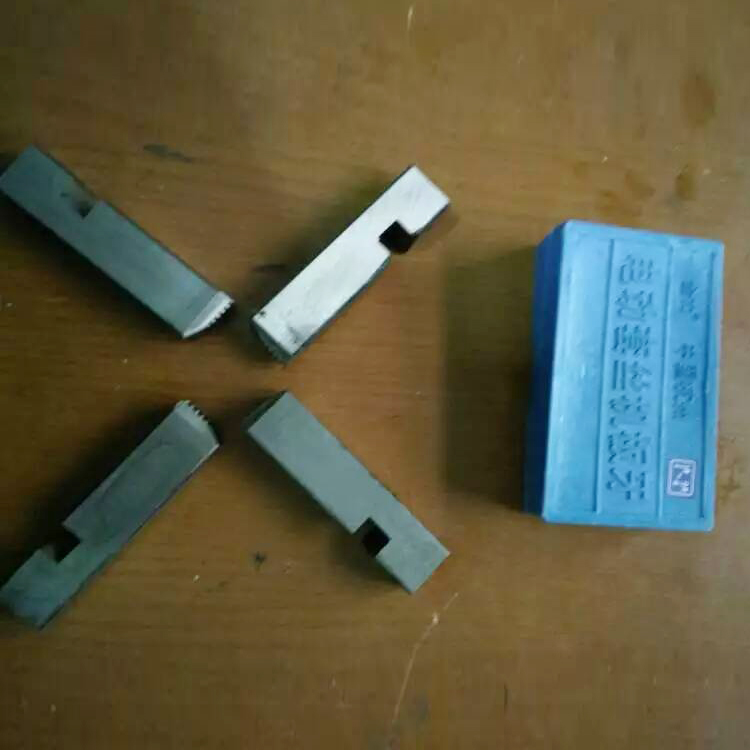

Operating Principle: During operation, first place the pipe to be threaded into the pipe chuck, secure it with a collision, and press the start switch. The pipe then rotates with the chuck. Adjust the die opening size on the die head and set the thread length. Then, turn the handwheel clockwise to make the die blade on the die head apply a constant force to the rotating end of the pipe, automatically cutting the thread. At the same time, the cooling system sprays oil to cool the die blade. Once the thread reaches the pre-set length, the die blade automatically opens, ending the threading process. Turn off the power, release the chuck, and remove the pipe.
How to Use Electric Thread Cutting Tube Bending Machine:
The electric thread cutting machine is an electric tool equipped with a forward and reverse function, designed for processing external threads on pipes. Suitable for cutting, threading, and chamfering the inner holes of various water, electricity, and gas pipes with diameters ranging from 1/2 to 3 inches. It features a profiling device for automatically threading standard圆锥管 threads, a reliable clamping mechanism, and a cooling lubrication system. It also comes with accessories for threading metric threads, making it ideal for various industries such as construction, pipeline, and equipment installation.
Weight: 150 kg
