LEDIn the display screen industry, the distribution box, as one of the core components, directly impacts the stability and lifespan of the display screens. Since LED screens are powered by a large number of switching power supplies, the initial startup of the screen body requires a high current, which can easily cause a surge in the power grid. Therefore, for screens with power exceeding 10KW, a dedicated intelligent distribution box for LED screens should be provided.

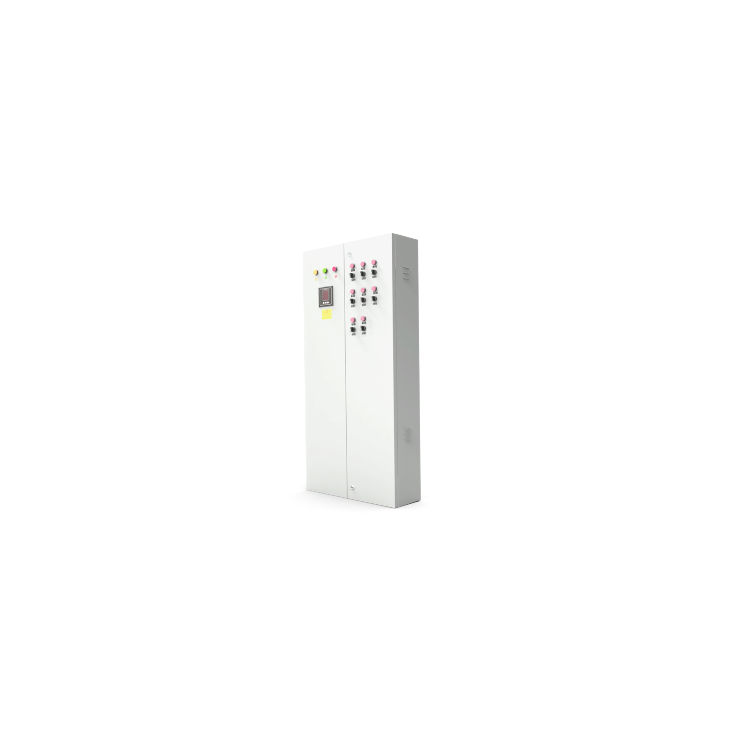

This product features an indoor shell, with a total load power of 150KW, capable of connecting 45 single-phase power-consuming devices (such as display circuit, air conditioning circuit, and fan circuit). It offers multiple protections, including overcurrent and short circuit protection, and manual power on/off functions. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The PLC power supply utilizes Mingwei's high-reliability industrial-grade products, with controllers from Omron, IPMS, and Siemens PLCs. It is equipped with RS232/TCP/IP communication, allowing connection to central control systems for unified control; and includes ports for smoke, temperature, and other sensors. It facilitates quick and convenient external data monitoring of LED display systems, and can initiate alarms for cabinet, LED display over-temperature, smoke, and intrusion through pre-set programs. It can automatically and intelligently control protection with set thresholds, enabling unattended operation. The system is built on the B/S architecture and is compatible with multiple platforms, including Windows, Linux, Android, Hongmeng, Kirin, and more operating systems.
Features
1.All systems feature dual protection; the input circuit breaker is a molded-case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2. Supports PLC remote real-time monitoring and management of the power system.
3.Manual, PLC remote, timed automatic control, power-off selectable.
4.Standard with overcurrent and short-circuit protection.
5.Different color indicator lights differentiate the phase power input status.
6.Manual, Stop, Auto — three-position panel control toggle switch.
7.All critical components are manufactured with internationally renowned brand components; all cables are selected from national standard copper cables, and all cables are terminated with pure copper terminals. The cable diameters inside the box have over 20% safety margin.
8.Select power state after power outage, ensuring stable operation of the equipment upon power restoration.
9.Standard with circuit status detection, current and voltage detection, overload protection, under-voltage and under-current protection, intrusion protection, smoke protection, electrical cabinet over-temperature protection, LED screen over-temperature protection, and linkage protection, among other safety features.
10. Multi-channel step-by-step automatic sequential power-on delay.
11.Supports 8 groups of scheduled tasks for automatic control and management.
12. All products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and using sheet metal with a thickness of 1.2mm or more, which is then powder coated.
13. All systems are pre-set with various contingency plans. When used online, they can remotely monitor the power status of the cabinets, and when used offline, they can automatically execute the logic of the contingency plan联动.
14．Standard equipment includes electrical leakage-protected test sockets and lighting control circuit.
15.The system is cross-platform compatible and supports Windows, Linux, Android, HarmonyOS, Kylin, and more operating systems.
Technical Specifications
Rated Capacity | 150KW |
Output Loop | 45Single-phase circuit |
Number of output channels | Eight-channel |
Input and Output Voltage | Input 3-phase 5-wire system, output single-phase 220V |
Rated Output Power per Channel | ≤3.5KW |
Upper, power-off control method | Manual/Remote/Scheduled Auto |
Short circuit and overload protection | Available |
Step-by-step delayed power-on | Available |
Schedule power on/off tasks | 8Group Timer Switch Each channel can be set to different time periods based on the load equipment (such as displays, air conditioners, computers, audio systems), supporting daily and weekly scheduling. |
Remote Power-On | Available |
Logical联动控制 Logical联动control | Available |
Central Control | Available |
Contact Information | TCP/IPNetwork/RS232/RS485 |
Environmental Status Monitoring | Status Anomaly Alert |
Loop Status Detection | Available |
Power outage and restoration status detection | Available |
Temperature and humidity detection | Available |
Current and voltage detection | Available |
Under-voltage and over-voltage protection | Available |
Smoke Alarms, Protection | Available |
Display Over-Temperature Alarm and Protection | Available |
Over-temperature shutdown protection for distribution panel | Available |
Interlock protection | Available |
Input method | Line entry is available both at the top and bottom. |
Housing size | 700mm*1500mm*250mm |
Application
Command center, conference rooms, multi-functional halls, exhibition spaces... and other compact venues, powered by LED screens.
After-sales service
1One-year free warranty, lifetime technical support.
Packaging
Standard cardboard box packaging.
Utilize Information
Please read the product manual carefully before use.
Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
