In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the high current surge during startup, which can easily stress the power grid. For displays with power exceeding 10KW, it is essential to equip them with a dedicated intelligent power distribution cabinet for LED displays.

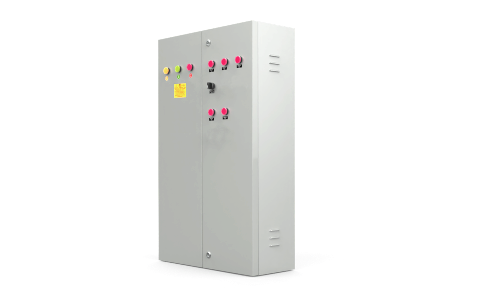

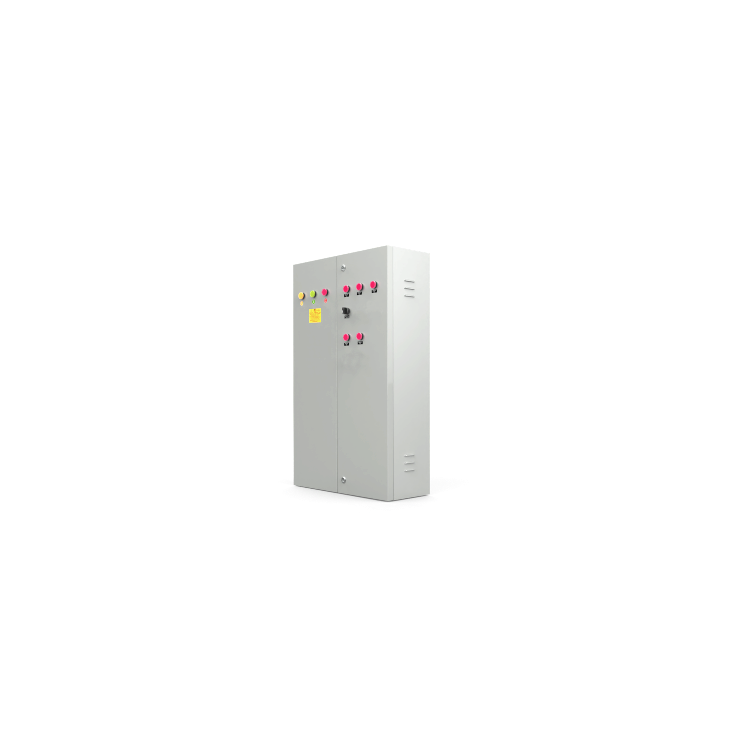

This product features an indoor housing, with a total load power of 90KW, capable of connecting 27 single-phase electrical equipment circuits (such as display circuit, air conditioning circuit, fan circuit). It offers overcurrent and short-circuit protection, with step-by-step, graded delay for power-on. It can be manually powered on/off, scheduled for automatic power-on, and has an off function. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. Ensures stable system power supply.。
Features
1.All models feature two-level protection; the input circuit breaker is a molded case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2.Supports 16 groups of scheduled automatic operation task management.
3.Choose between manual or timed settings for automatic control of power on and off.
5.Different color phase sequence power indicator lights differentiate phase line power entry.
6.Manual, Stop, Timer - three-position panel control toggle switch.
7. Multi-channel step-by-step sequential power-on delay
8.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables are terminated with purple copper terminals, with a 20% or more safety margin for wire diameters inside the box.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and using sheet metal with a thickness of 1.2mm or more, coated with paint.
10Equipped with standard electrical leakage protection sockets and lighting control circuits for easy on-site maintenance of the display screens by technicians.
Technical Specifications
Rated Capacity | 90KW |
Output Loop | 27Single-phase circuit |
Number of Output Channels | Five-channel |
Input/Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated output power per channel | ≤3.5KW |
Timer automatic up, power off | Available |
Short circuit and overload protection | Available |
Sequential delayed power-on | Available |
Panel control knob | Available |
Lighting Inspection Socket | Available |
Phase indicator light | Available |
In-line method | Line entry is available both up and down. |
Shell size | 600mm*1000mm*250mm |
· Purpose
Command center, conference rooms, multi-functional halls, exhibition halls... etc., powered by LED screens.
· After-Sales Service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize information
Be sure to read the product user manual thoroughly before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
